Build Your Kit

4" Jeep CJ5, CJ7, Scrambler

4" Jeep CJ5, CJ7, Scrambler

Jeep CJ5, CJ7, Scrambler
4" Suspension Lift Kit

  • *Approx Price: $872.42
  • Front (base kit): 4" Leaf Spring
  • Rear (base kit): 4" Leaf Spring
  • Print summary
4" Jeep CJ5, CJ7, Scrambler

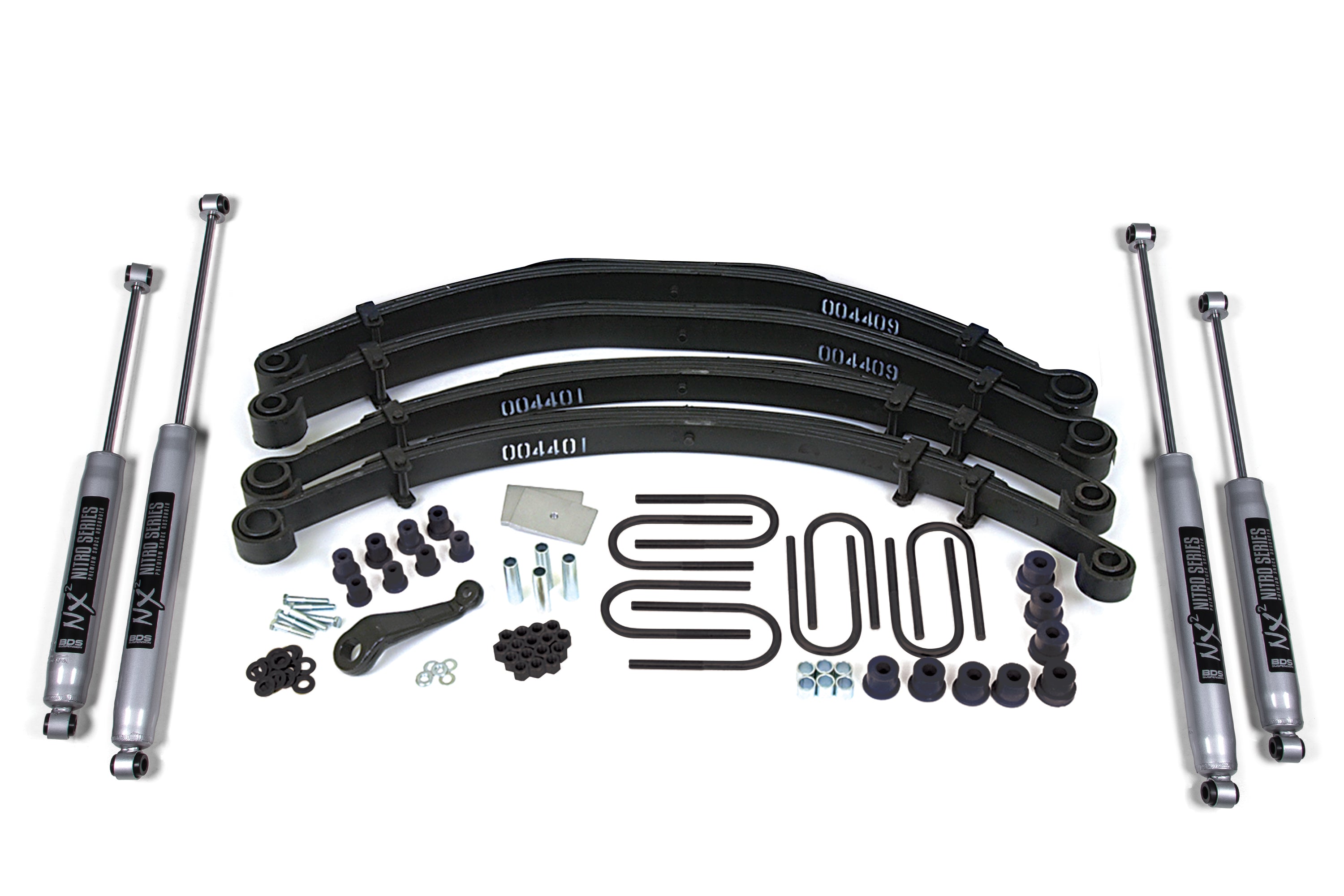

Kit Components

Accessories & Pricing


Qty Part# Description
2 004401 76-86 CJ 4" Front Spring
2 004409 76-86 CJ 4" Rear Spring
1 014400 76-86 CJ 4" Ft. & Rr. Box Kit
1 084401 76-86 Cj5/7 Pitman Arm W/pwr. Steering
1 124000 76-86 CJ Transfer Case Lowering Kit
4 55920 Hydraulic Shock Absorber
Qty Part# Description Price
    Total $872.42

Important Kit Notes

  • 1. Vehicles equipped with the optional Dana 44 axle will require 040005 (Qty. 4) U-bolts listed in the accessories.
  • 2. If your vehicle is equipped with manual steering, you can buy the kit without the PS pitman arm, but BDS Suspension does not offer a manual steering pitman arm. You will need to aquire this from another source.
  • 3. If your vehicle is equipped with an anti-sway bar, a sway bar extension kit (available in the accessories section ) will be necessary for your sway bar to function properly.
  • 4. If your CJ is heavy in the rear ( ie. Hard top with full size spare) you should consider the 114208 add-a-leaf kit in the options to stiffen up the rear leaf springs and reduce the possibility of low rear ride height. This is recommended for all CJ8 Scramblers.
  • 5. Shackle bushing kit 074002 listed in the accessories is highly recommended.

  • Jeep CJ5, CJ7, Scrambler
    4" Suspension Lift Kit

  • Front (base kit):

    4" Leaf Spring

  • Rear (base kit):

    4" Leaf Spring

  • Kit Price

    $872.42

Base Kit Components

Compatible Vehicles

IMPORTANT: Kit Notes

View Instructions

Base Kit Components 406H

These components are subject to change based upon your selections.

Qty Part# Description
(2) 004401 76-86 CJ 4" Front Spring
(2) 004409 76-86 CJ 4" Rear Spring
(1) 014400 76-86 CJ 4" Ft. & Rr. Box Kit
(1) 084401 76-86 Cj5/7 Pitman Arm W/pwr. Steering
(1) 124000 76-86 CJ Transfer Case Lowering Kit
(4) 55920 Hydraulic Shock Absorber

Compatible Vehicles

These vehicles also are compatible with this product.
Click on a vehicle to see other available kits.

Make Model Type Year Range
Jeep CJ Series CJ5, CJ7, Scrambler 1976-1986

Email Summary

  *required information
*To Email Address
*To Name
*From Name
Message
Send Order

Important Kit Notes

  • 1. Vehicles equipped with the optional Dana 44 axle will require 040005 (Qty. 4) U-bolts listed in the accessories.
  • 2. If your vehicle is equipped with manual steering, you can buy the kit without the PS pitman arm, but BDS Suspension does not offer a manual steering pitman arm. You will need to aquire this from another source.
  • 3. If your vehicle is equipped with an anti-sway bar, a sway bar extension kit (available in the accessories section ) will be necessary for your sway bar to function properly.
  • 4. If your CJ is heavy in the rear ( ie. Hard top with full size spare) you should consider the 114208 add-a-leaf kit in the options to stiffen up the rear leaf springs and reduce the possibility of low rear ride height. This is recommended for all CJ8 Scramblers.
  • 5. Shackle bushing kit 074002 listed in the accessories is highly recommended.

Next: Steering Stabilizer Options
