All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

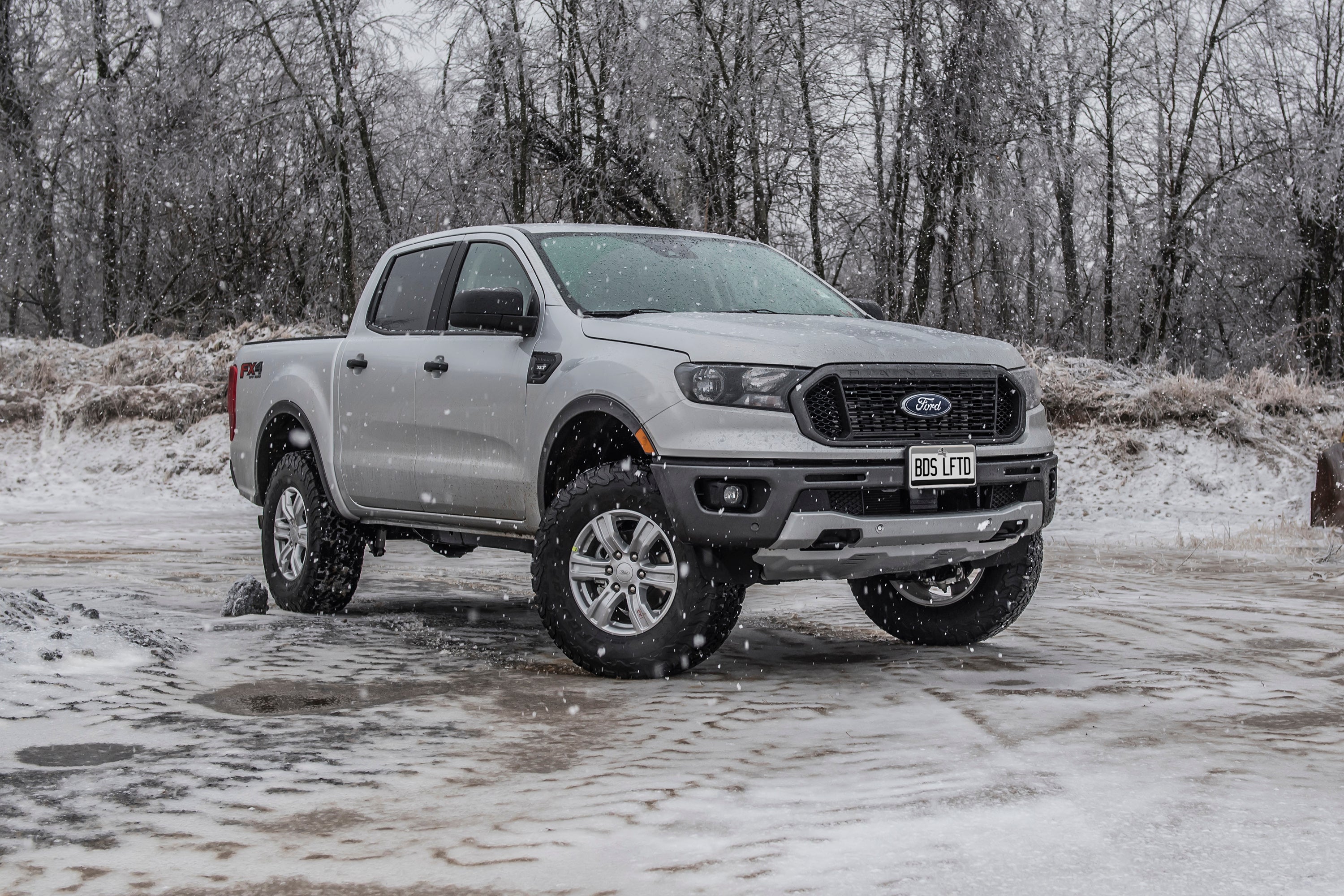

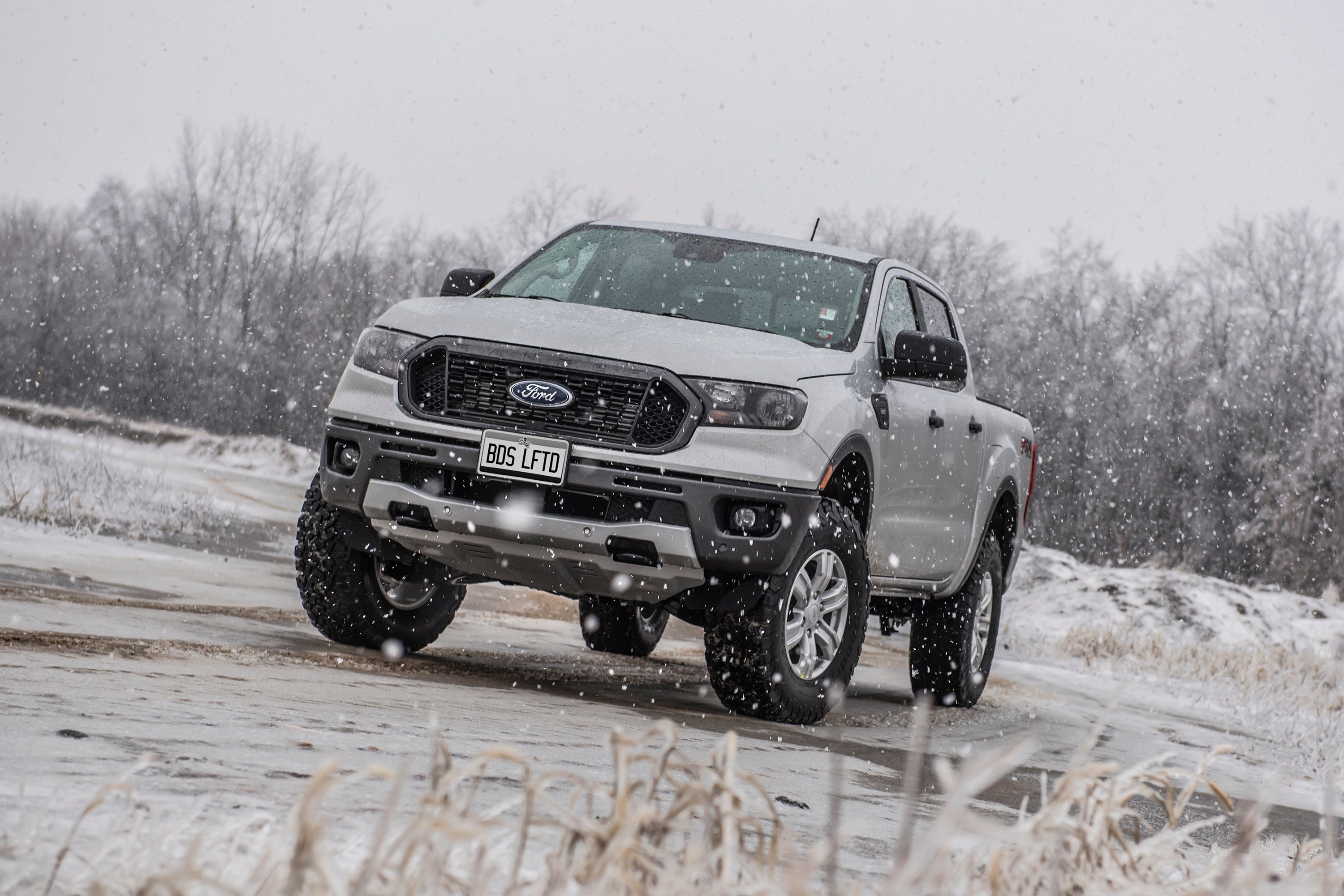

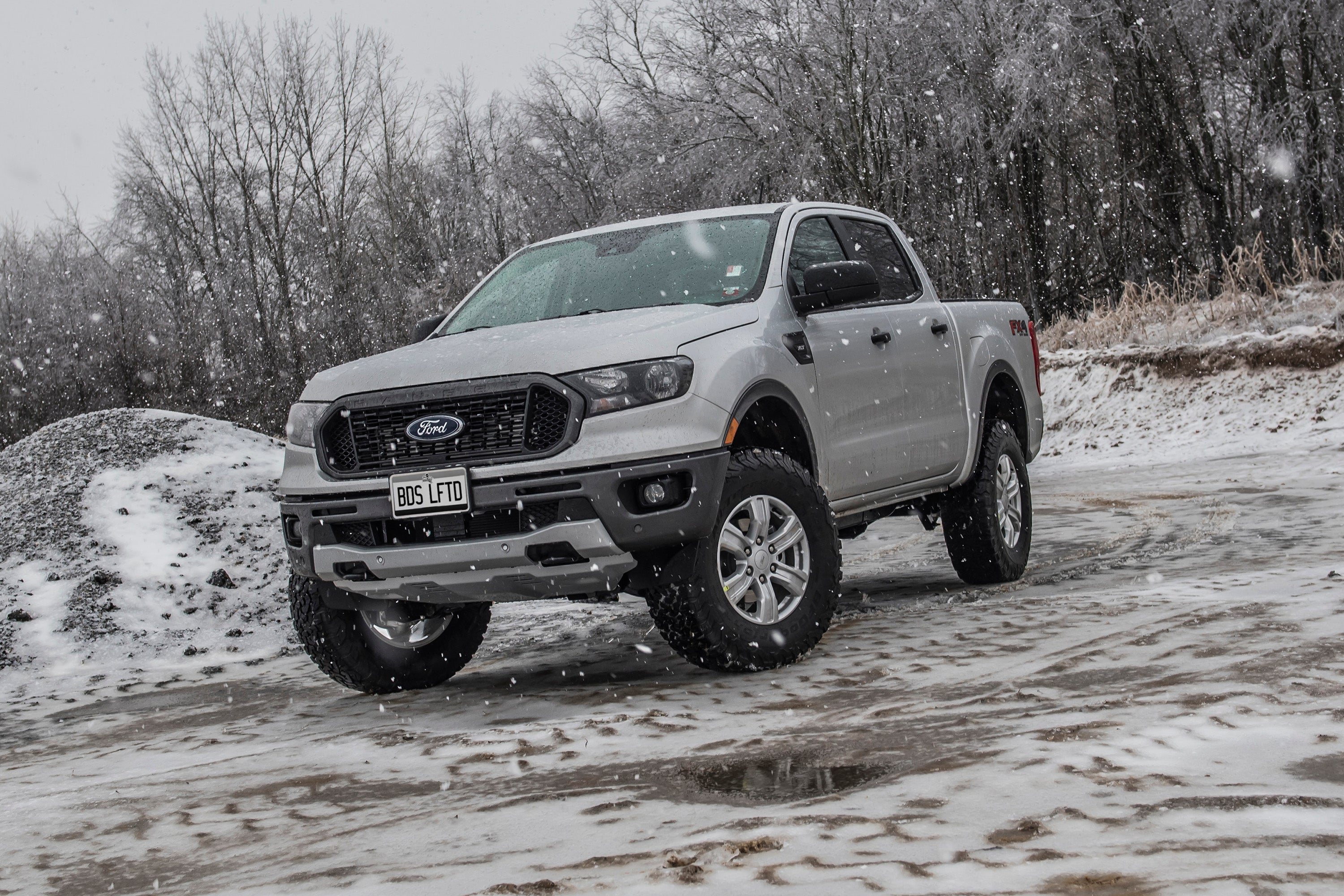

Specially designed for the new Ranger, this 2" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop (as is the case with other top mounted spacers and taller leveling kits on the market). The issue with most other kits is they increase the overall length of the strut assembly maxing out ball joints and causing the CV shaft/boot to operate at an extreme angle leading to premature wear/failure of the components. To get around this apparent issue the BDS kit uses a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. The top mounted spacer installs easily and is finished in a durable black e-coating for a clean appearance. The preload spacer installs below the spring and raises the ride height without extending the overall extended length of the strut assembly while maintaining factory ride quality allowing you to get the most out of your new Ranger's factory suspension.

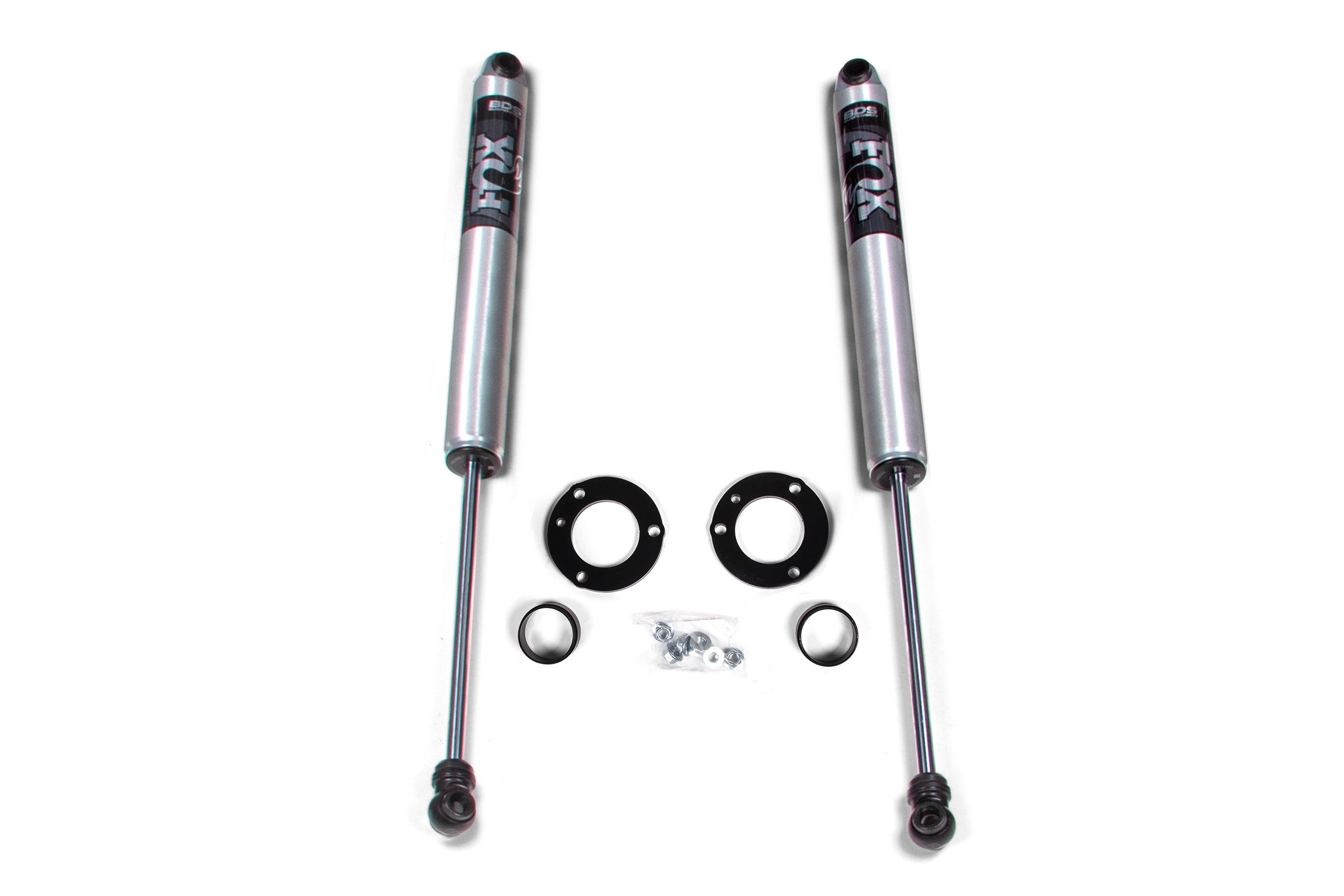

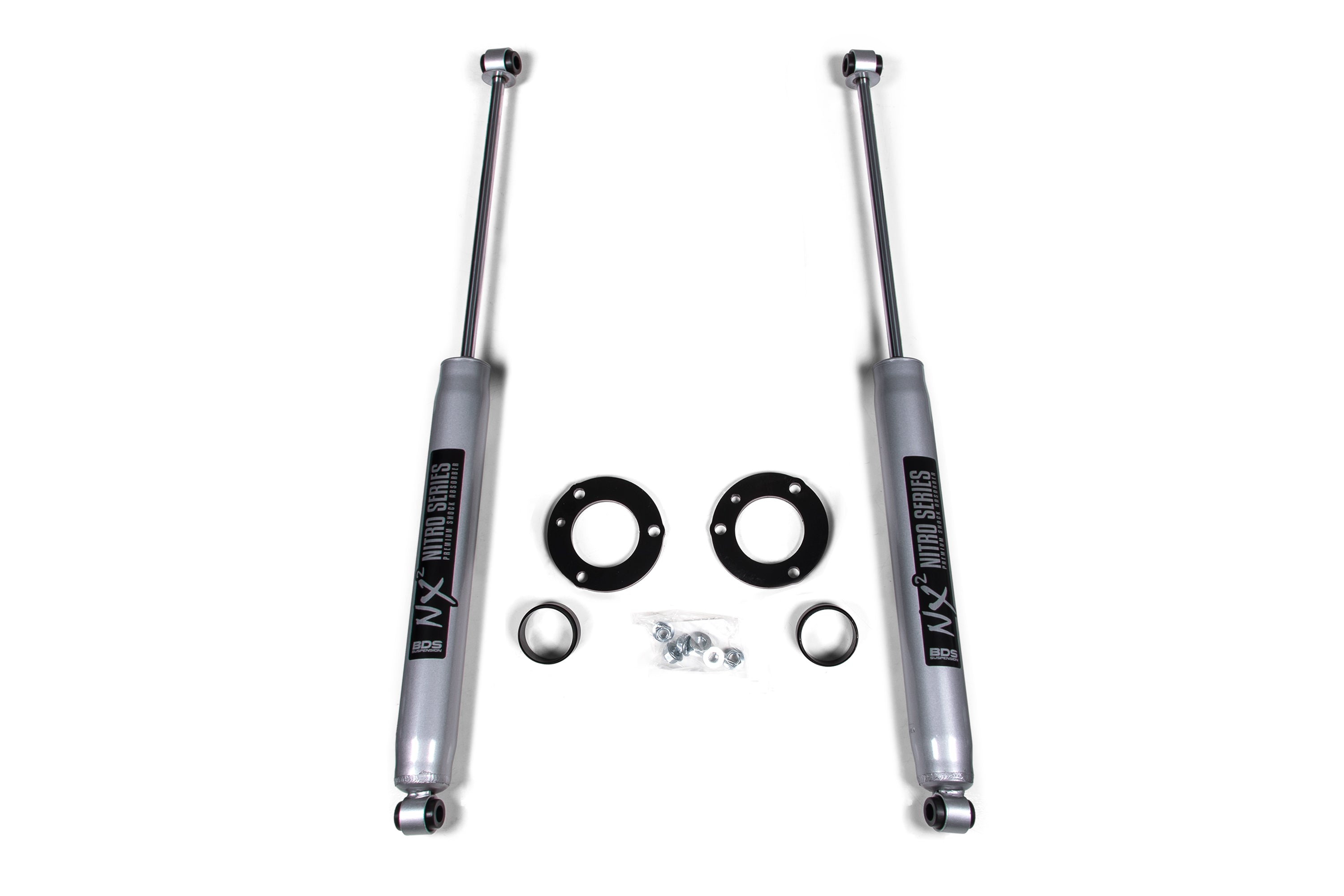

Also included in this new 2" leveling kit are a pair of precision tuned rear gas shocks to further enhance your Ranger's performance. The BDS NX2 twin tube gas shocks come standard or can be upgraded to the FOX 2.0 performance series IFP shocks for race proven damper technology. Give your new Ranger the extra boost with this 2" leveling kit from BDS Suspension.
*Trimming may be required*
This new system builds off the factory suspension mounting points and offers improved strength, ground clearance and suspension travel. All components have been engineered in unison to ensure suspension and drivetrain geometry is maintained, rather than other " leveling kits" on the market that just throw in a top spacer which maxes out the angles at droop. The new ride height is the result of a combination of a specially designed top mounted steel fabricated strut spacer in conjunction with a preload spacer for a total 2.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axle boots and other front end components. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. In the rear the factory shocks are replaced with your choice of precision tuned NX2 gas or FOX 2.0 performance IFP gas shocks for improved damping.
Optional accessories include the BDS performance upper control arm (UCA) kit and 1" HD rear shackle kit. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Ford Ranger with these new 2.5" lift systems from BDS Suspension.
*Trimming may be required*
This new system builds off the factory mounting points and offers improved strength, ground clearance and suspension travel. The new ride height is the result of a combination top mounted steel fabricated strut spacer along with preload spacer for a total 3.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axles and other front end components. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable Moog ball joints and Clevite rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Finishing out the front of these 3.5" systems is a small differential relocation to help further improve CV axle operating angle.
In the rear of these lift systems the factory leaf springs are retained and 1" lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8" steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5" lift kits are your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks for improved damper performance. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Ford Ranger with these new 3.5" UCA lift systems from BDS Suspension.
*Trimming may be required*
Shotpeening increases tensile strength and reduces fatigue while lessening the material thickness required. The thinner material allows for increased wheel travel and provides a softer ride.
Bolt-style leaf alignment clamps prevent leaves from fanning out and allow the leaves to twist and flex, yielding higher articulation.
Each spring is preset using hydraulic stress to reduce fatigue in the steel and prevent sagging.
Some applications include leaf springs with steel encased rubber bushings. Other applications include blue urethane bushings.
Anti-friction pads are placed between the leaves to reduce friction within the spring and noise from metal-to-metal contact.
Tapered and roll-pointed leaves add flexibility and provides an even deflection rate. Tapering allows a smoother transition between leaves as compression takes place, resulting in a softer ride with increased wheel travel.
Springs are either cold wound with chrome silicon 9254 or hot wound with 5160 to guarantee long life.
BDS coil springs are designed to withstand full coil bind. In other words, you can smash our coils to totally flat and they will return to their original height.
A polyester based powder coat is applied to ensure flexibility and durability.
Each spring is preset with a hydraulic stress to reduce fatigue in the steel and prevent sagging.
Shotpeening increases tensile strength and allows for maximum wheel travel without sacrificing the life of the spring.
