7 Inch Lift Kit | FOX 2.5 Coil-Over Conversion | Chevy Silverado or GMC Sierra 2500HD (01-10) 2WD

Brand: BDS
SKU: BDS1818FDSC
Kit Component List

×
$5,398.83
Subtotal: $5,398.83

I have read the Important Notes and Verified my Vehicle Fitment

7 Inch Lift Kit | FOX 2.5 Coil-Over Conversion | Chevy Silverado or GMC Sierra 2500HD (01-10) 2WD

7 Inch Lift Kit | FOX 2.5 Coil-Over Conversion | Chevy Silverado or GMC Sierra 2500HD (01-10) 2WD

$5,398.83

7 Inch Lift Kit | FOX 2.5 Coil-Over Conversion | Chevy Silverado or GMC Sierra 2500HD (01-10) 2WD

$5,398.83
Carrier Bearing Option: Carrier Below Crossmember

BDS raises the bar with the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD truck with a 7-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

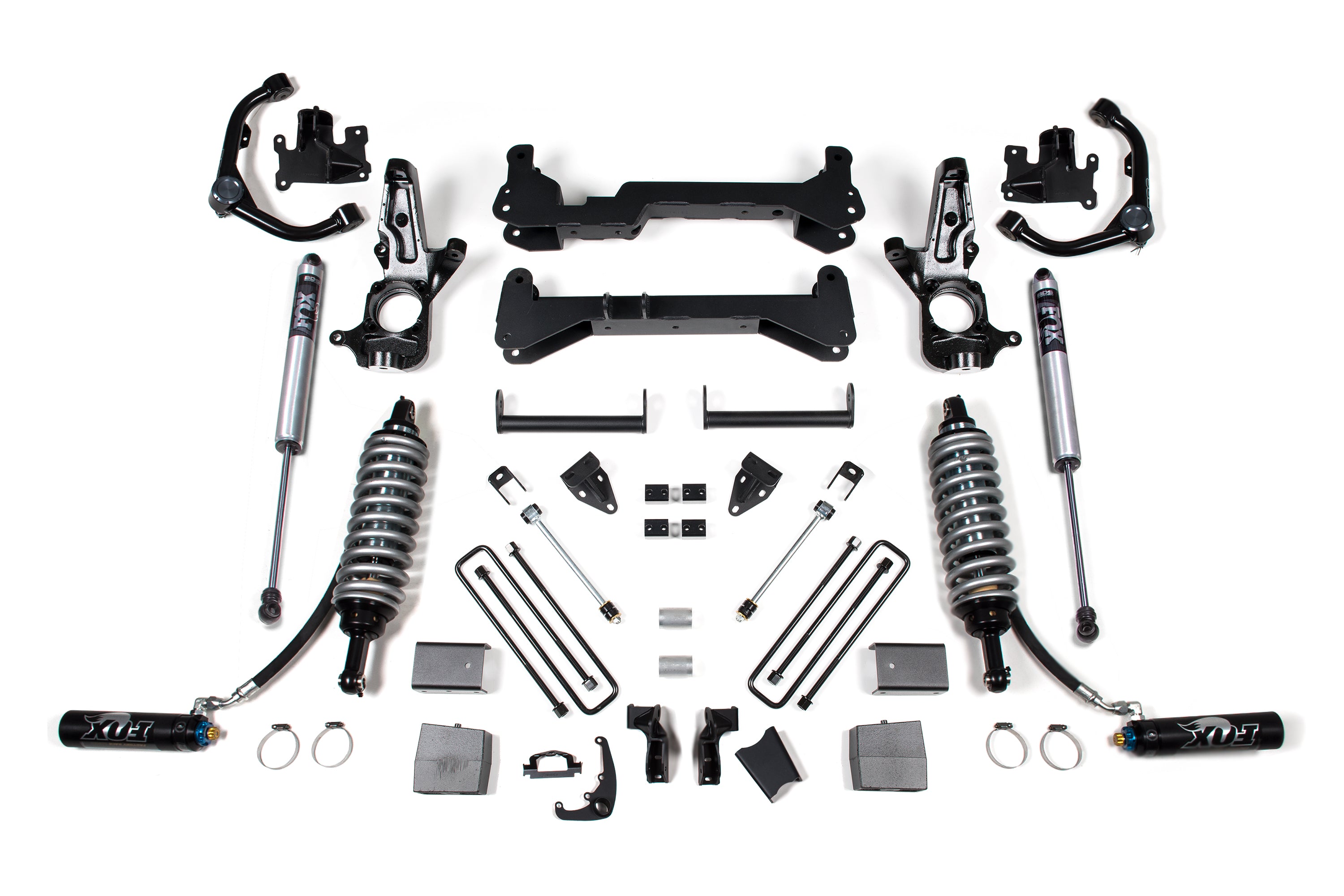

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, and precision tuned FOX 2.0 Performance Series shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Features & Benefits

  • FOX 2.5 coil-overs offer improved damper performance over stock
  • DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
  • Performance UCAs increase strength and allow for more suspension travel
  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Carrier Bearing Option

The '01-09 2WD HD was available with two different carrier bearing crossmembers. If the carrier bearing is mounted above the crossmember then the base kit will work. If the carrier bearing is mounted below the crossmember then this selection must be made.

  1. Torsion Bar tool required to load/unload the torsion bars
  2. Some welding required
  3. Requires frame bracket modification and differential mount modification
  4. Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift
  5. 20" wheels with 5" to 5.75" backspacing recommended to reduce trimming
  6. Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case
  7. Does NOT work with rear Autoride equipped SUV's
