8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (08-10) 4WD | Gas

Brand: BDS
SKU: BDS566FS
Kit Component List

×
$3,913.50
Subtotal: $3,913.50

I have read the Important Notes and Verified my Vehicle Fitment

8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (08-10) 4WD | Gas

8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (08-10) 4WD | Gas

$3,913.50

8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (08-10) 4WD | Gas

$3,913.50

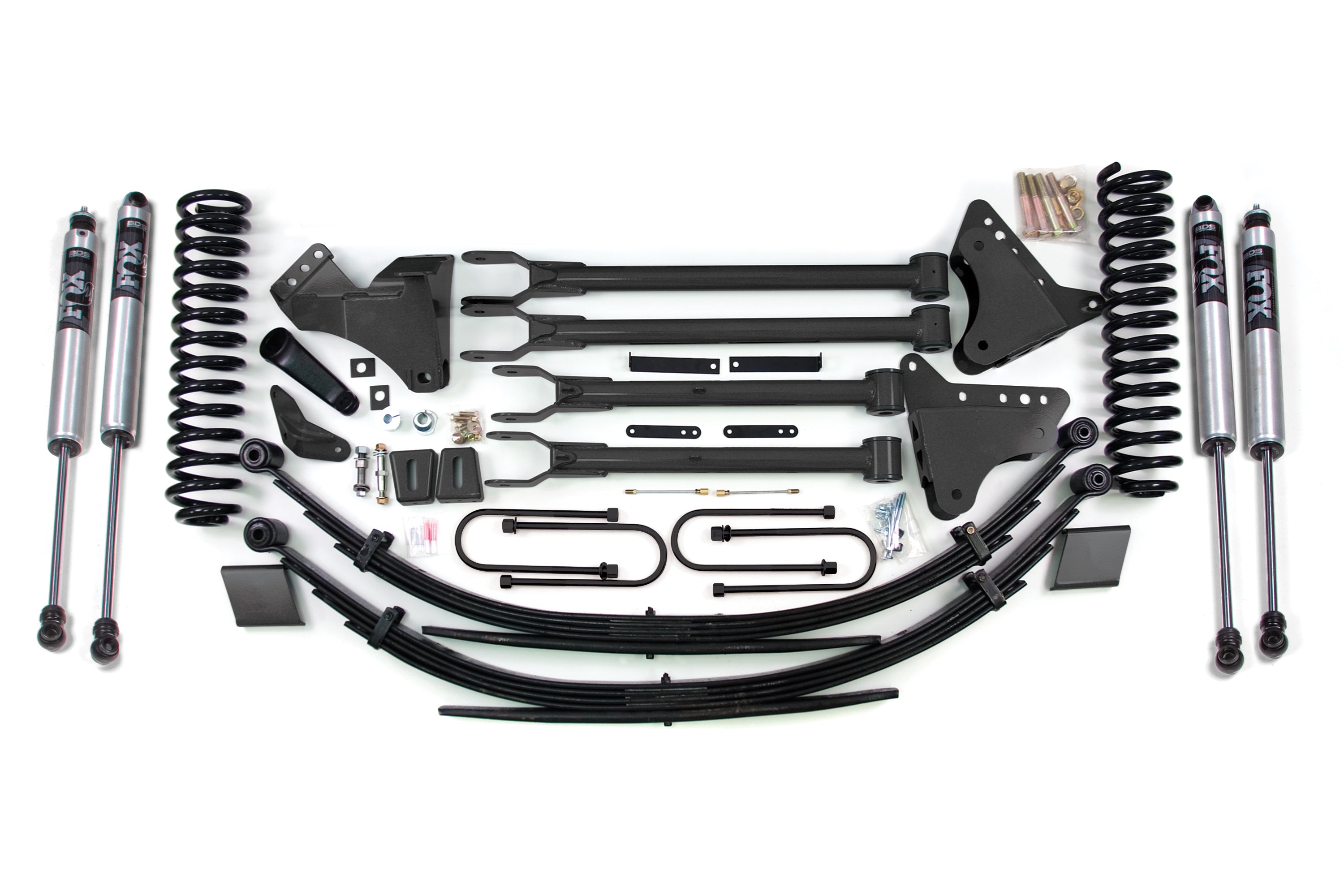

Shock Option: FOX 2.0 Performance Series

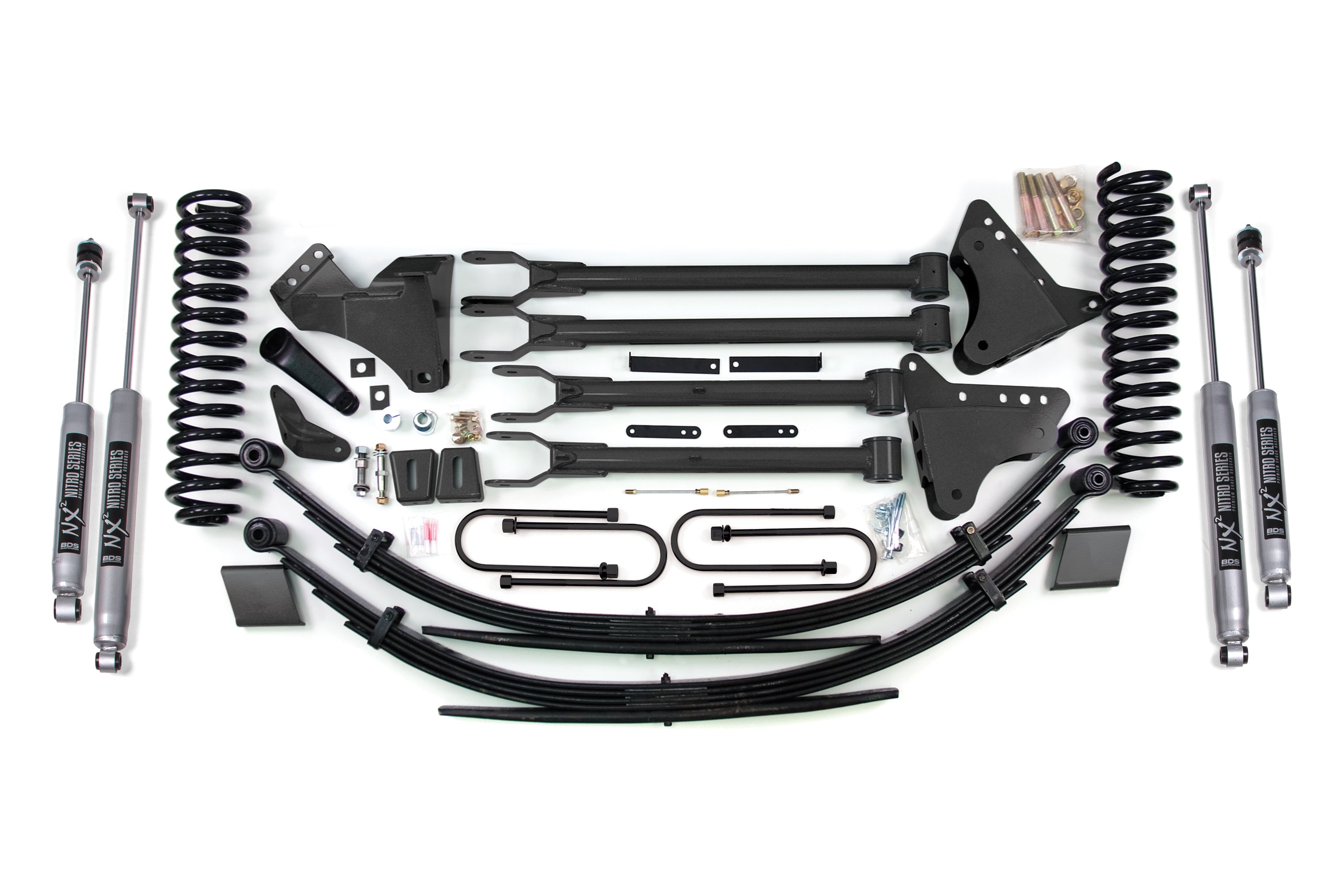

Raise the bar with a BDS Suspension 8-inch lift kit and 4-link conversion for your 2008-2010 Ford Super Duty F250 and F350 gas truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.



Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

  1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
  2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 13.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 20 x 9 and 4.5 in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. If your vehicle is equipped with a rear anti-sway bar, you will need to order 123009 in the options section.
  2. If your vehicle is equipped with a carrier bearing, you will need to order 123406 in the options section.
  3. Front exhaust modification may be required to clear the front driveshaft.
  4. This system can clear 38's with the addition of a front bumper spacer available in the accessories - part # 123020.
  5. Although extremely rare, front driveline vibration may occur.
  6. U-bolts will not fit dually models.
  7. Dropped pitman arm will not fit 10 lug wide track F350 models.
