Build Your Kit

Non-Critical Selections

Shocks shown may differ from base kit.

Shocks shown may differ from base kit.

4" Lift Kit

  • *Approx Price: $2,665.11
  • Front (base kit): 4" IFS System
  • Rear (base kit): 2.5" Air Bag Spacer
  • Print summary
Shocks shown may differ from base kit.

Kit Components

Accessories & Pricing


Qty Part# Description
1 022259 Ram 1500 Rear Air Ride Box Kit
1 022403 Front Box Kit 3 of 4
1 022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
1 022630 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4)
1 022631 2013 DODGE 4WD FRONTBOXKIT (2 OF 4)
2 85719 NX² Shock Absorber
Qty Part# Description Price
    Total $2,665.11

Important Kit Notes

  • *IMPORTANT*: Due to the complexity of your Rams factory air ride system we highly recommend using an experienced suspension specialist for installation. For help locating a specialist in your area please use our dealer locator or contact us. For information regarding the installation of this system and modifying your Ram's factory air-ride suspension check out our step by step instructions and the helpful tips video below:

  • 1. The rack and pinion steering system is extremely sensative to an out-of -round or out-of-balance tire/wheel combinations.
  • 2. Fits factory air ride equipped trucks only.
  • 3. The factory air ride is a closed loop system. Opening the system more times than recommended in the lift instructions or factory service manual will require the system to be recharged. This can be done at any Ram dealer service department.
  • 4. Stock 20" wheel can be reinstalled with factory sized tire only. Stock 17" and 18" wheels will not fit.
  • 5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
  • 4" Lift Kit

  • Front (base kit):

    4" IFS System

  • Rear (base kit):

    2.5" Air Bag Spacer

  • Kit Price

    $2,665.11

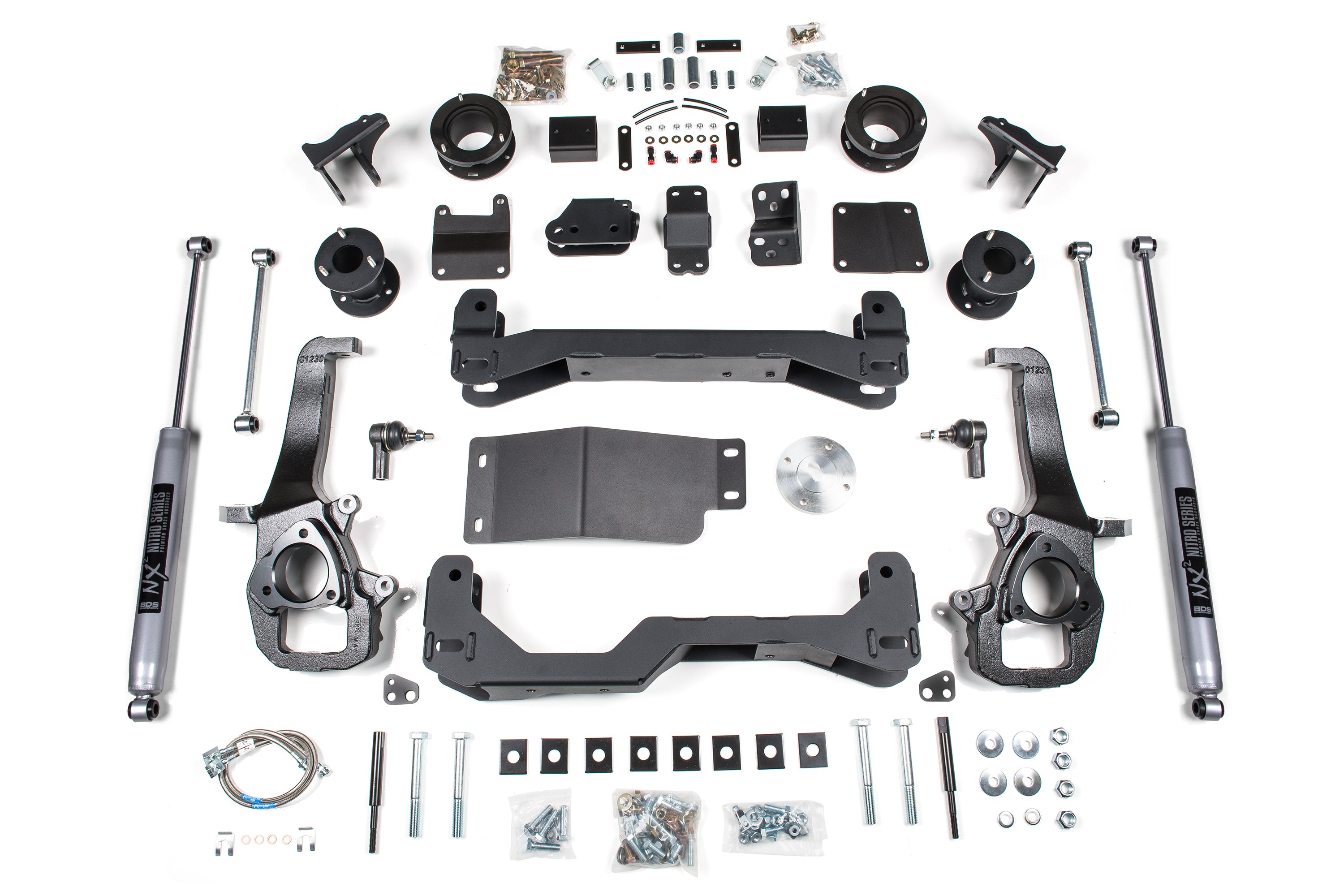

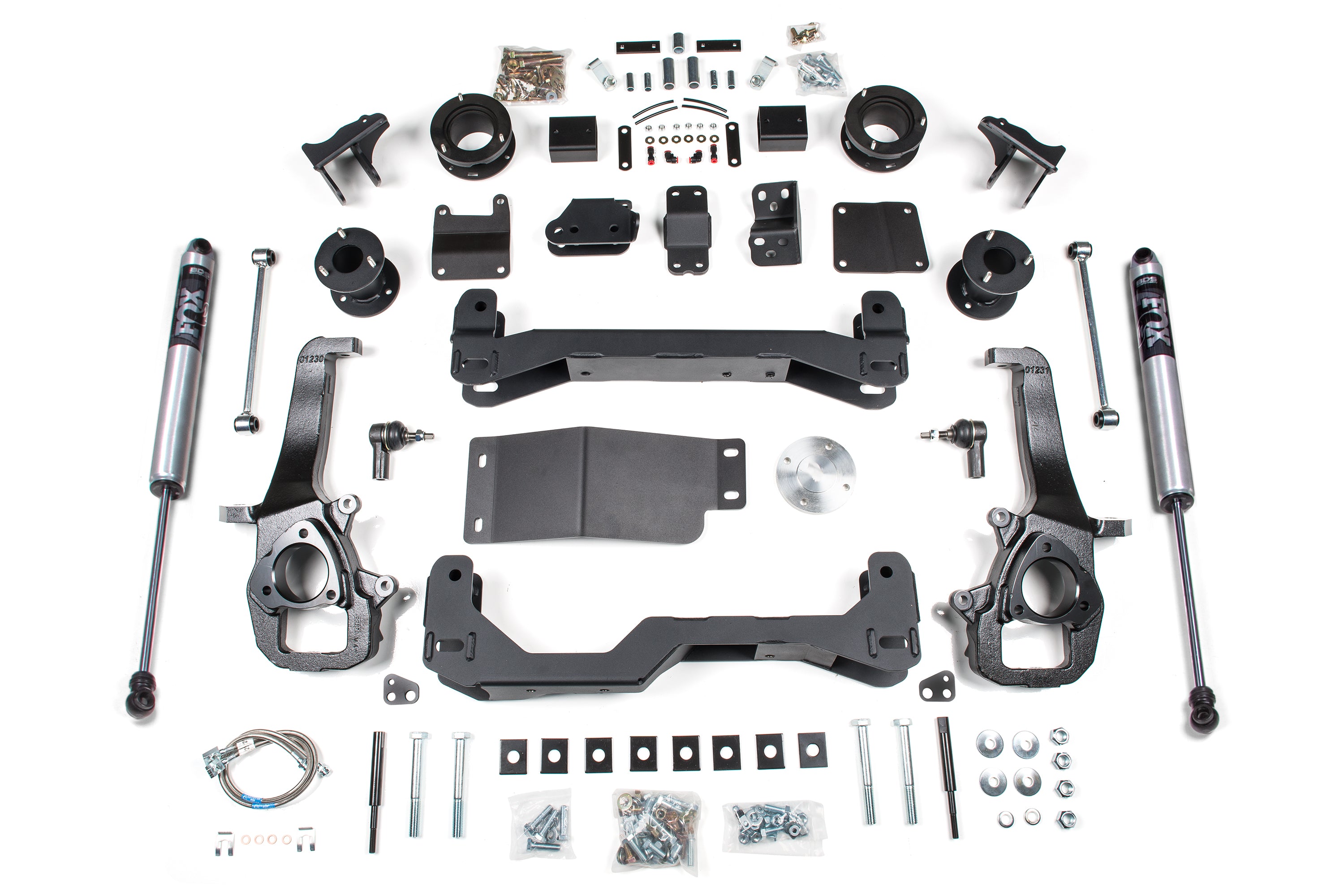

Base Kit Components 1623

These components are subject to change based upon your selections.

Qty Part# Description
(1) 022259 Ram 1500 Rear Air Ride Box Kit
(1) 022403 Front Box Kit 3 of 4
(1) 022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
(1) 022630 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4)
(1) 022631 2013 DODGE 4WD FRONTBOXKIT (2 OF 4)
(2) 85719 NX² Shock Absorber

Compatible Vehicles

These vehicles also are compatible with this product.
Click on a vehicle to see other available kits.

Make Model Type Year Range
Dodge / Ram 1500 Rebel 4WD w/ Air-Ride 2015-2018
Dodge / Ram 1500 Truck 4WD w/ Air-Ride 2013-2018

Email Summary

  *required information
*To Email Address
*To Name
*From Name
Message
Send Order

Important Kit Notes

  • *IMPORTANT*: Due to the complexity of your Rams factory air ride system we highly recommend using an experienced suspension specialist for installation. For help locating a specialist in your area please use our dealer locator or contact us. For information regarding the installation of this system and modifying your Ram's factory air-ride suspension check out our step by step instructions and the helpful tips video below:

  • 1. The rack and pinion steering system is extremely sensative to an out-of -round or out-of-balance tire/wheel combinations.
  • 2. Fits factory air ride equipped trucks only.
  • 3. The factory air ride is a closed loop system. Opening the system more times than recommended in the lift instructions or factory service manual will require the system to be recharged. This can be done at any Ram dealer service department.
  • 4. Stock 20" wheel can be reinstalled with factory sized tire only. Stock 17" and 18" wheels will not fit.
  • 5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
