4 Inch Lift Kit | Ford F250 TTB (87-96) 4WD

Brand: BDS Suspension
SKU: BDS306FS
Kit Component List

×
$2,040.60
Subtotal: $2,040.60

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_ford_306FS.jpg

4 Inch Lift Kit | Ford F250 TTB (87-96) 4WD

$2,040.60
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_ford_306H.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_ford_306FS.jpg

4 Inch Lift Kit | Ford F250 TTB (87-96) 4WD

$2,040.60
Shock Option: FOX 2.0 Performance Series
OVERVIEW

Update the style of your 1980-1996 Ford F250 TTB 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires.

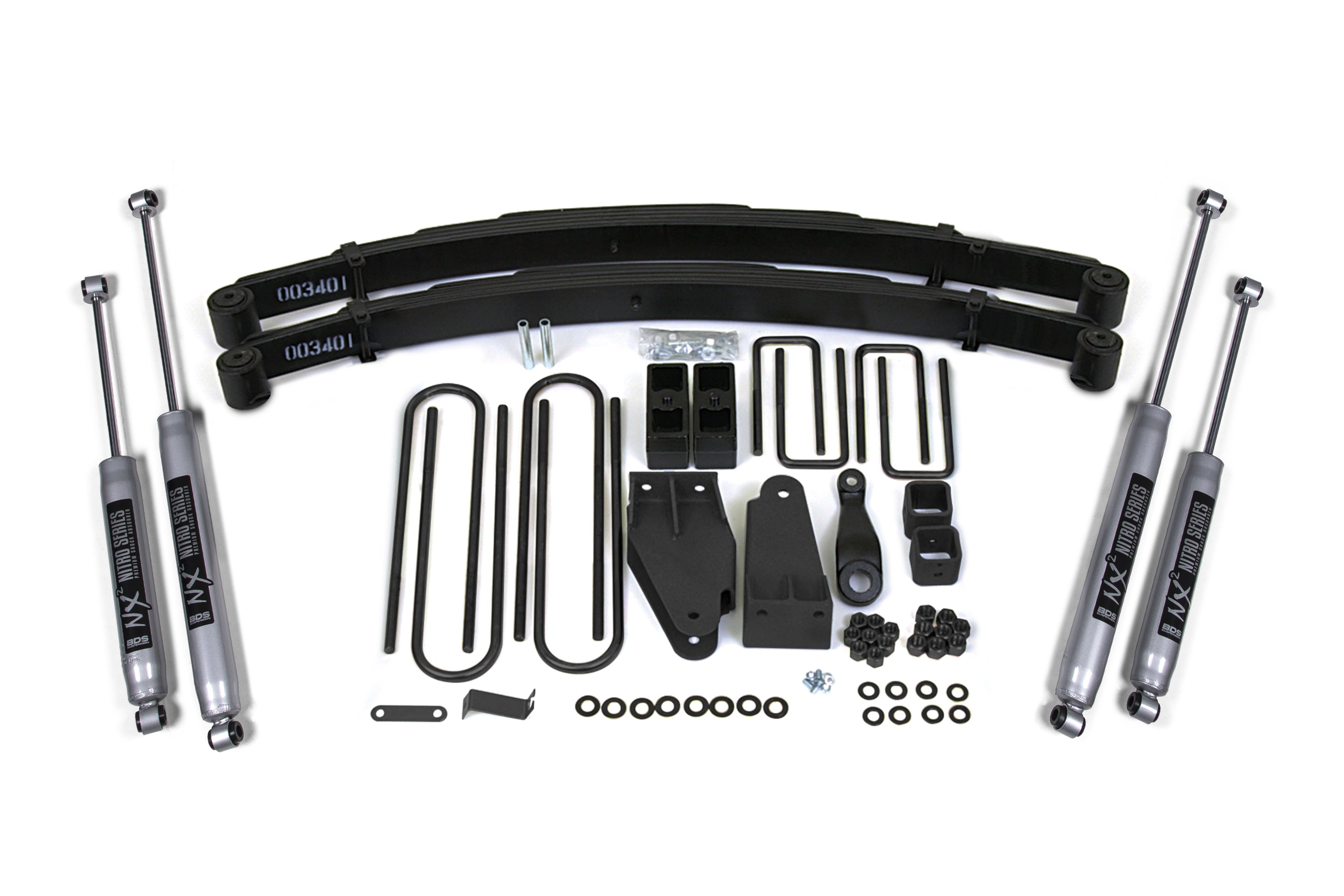

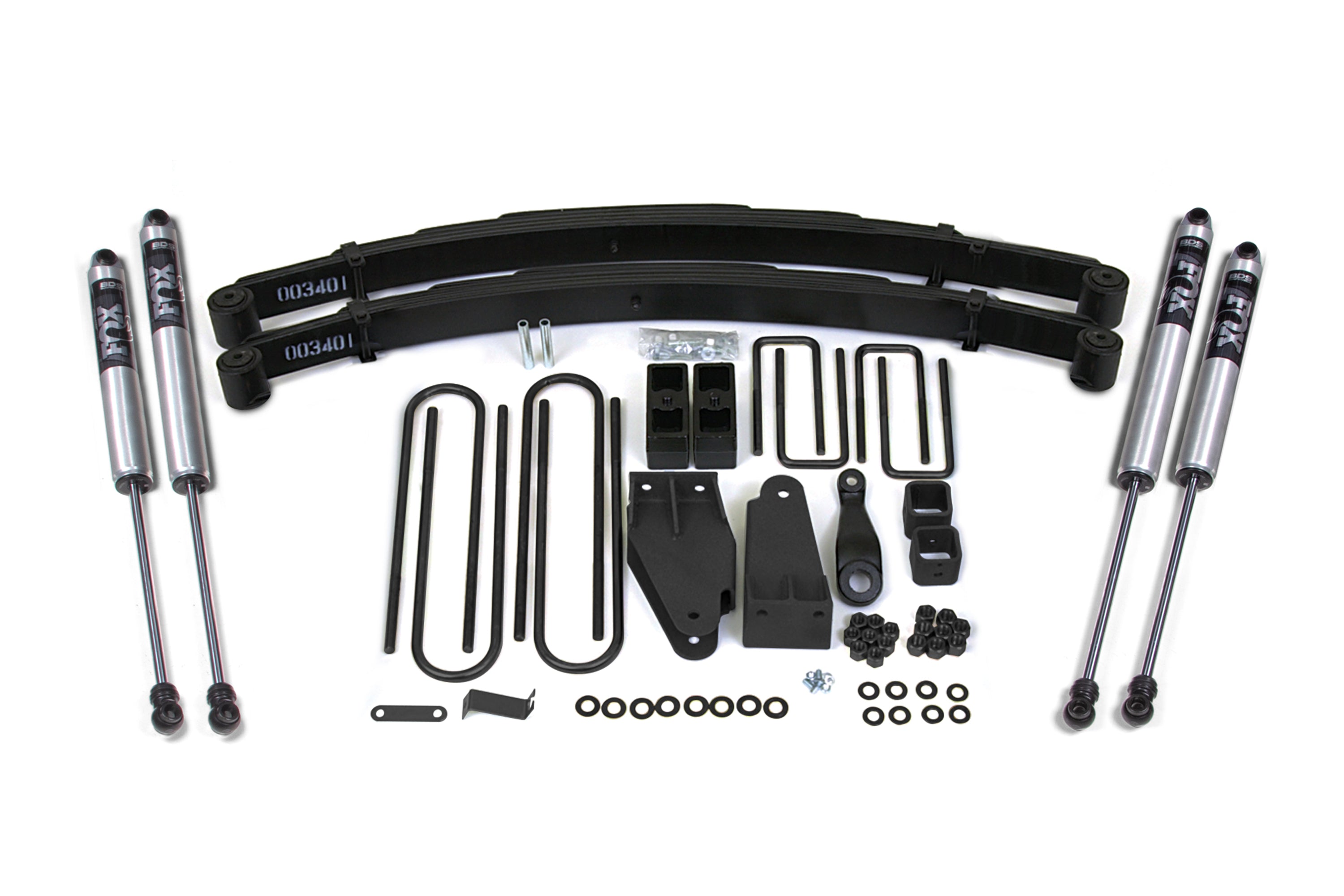

Up front, the lift kit includes Glide-Ride leaf springs, axle pivot drop brackets, forged drop pitman arm for steering correction, bump stop brackets, and precision-tuned NX2 or FOX nitrogen-charged shocks.

In the rear, this kit utilizes a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring-rate design that provides a smooth ride under any load. This is achieved through an exclusive triple-stage leaf-spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Pitman arm maintains proper steering angles for improved handling
  • Cast steel blocks provide a level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 16 x 8 and 4 in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
IMPORTANT NOTES
  1. Not recommended for diesel applications.
  2. This system is designed for Twin-Traction Beam style suspension only. The kit will not work on front solid axle applications.
  3. In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.
