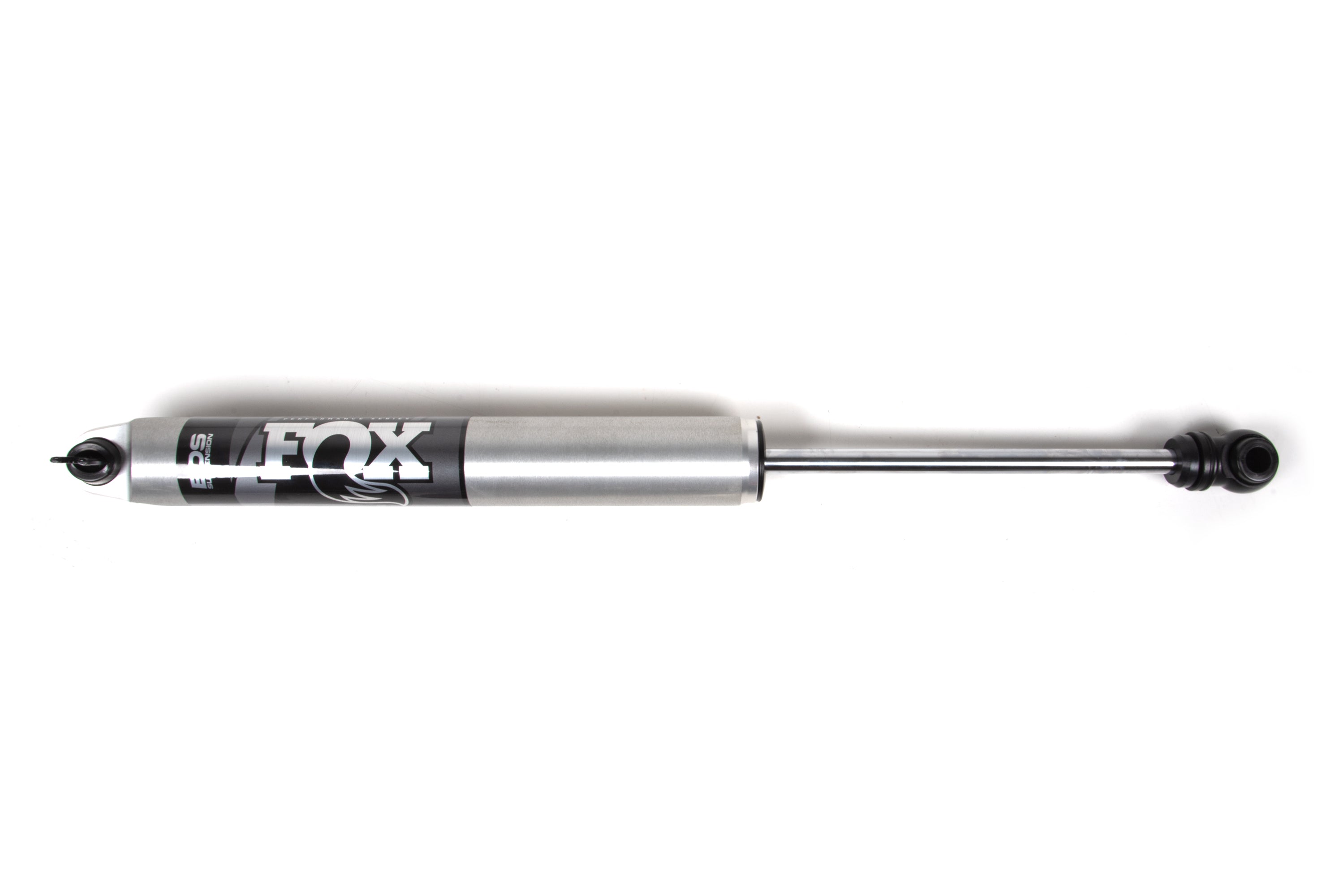

FOX 2.0 IFP Rear Shock | 2-3 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

Brand: FOX
SKU: FOX98224951

×
$189.95
Subtotal: $189.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_fox_20_shock4_01.jpg

FOX 2.0 IFP Rear Shock | 2-3 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

$189.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_fox_20_shock4_01.jpg

FOX 2.0 IFP Rear Shock | 2-3 Inch Lift | Performance Series | Jeep Wrangler JK (07-18)

$189.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 2 to 3-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 16.75
  • Extended Length : 26.35
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 5_8
  • Travel Length : 9.6
  • Type : Smooth Body
  • Upper Mount Code : BP18
  • Upper Mount Type : Bar Pin
FITMENT
2009|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2016|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2008|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2018|Jeep|Wrangler JK|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2013|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2017|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2014|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2015|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2011|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2007|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2010|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||;2012|Jeep|Wrangler|*|*|*|*|7556|Shock Absorber|Each|0||||Rear|30|3"||||||||||
