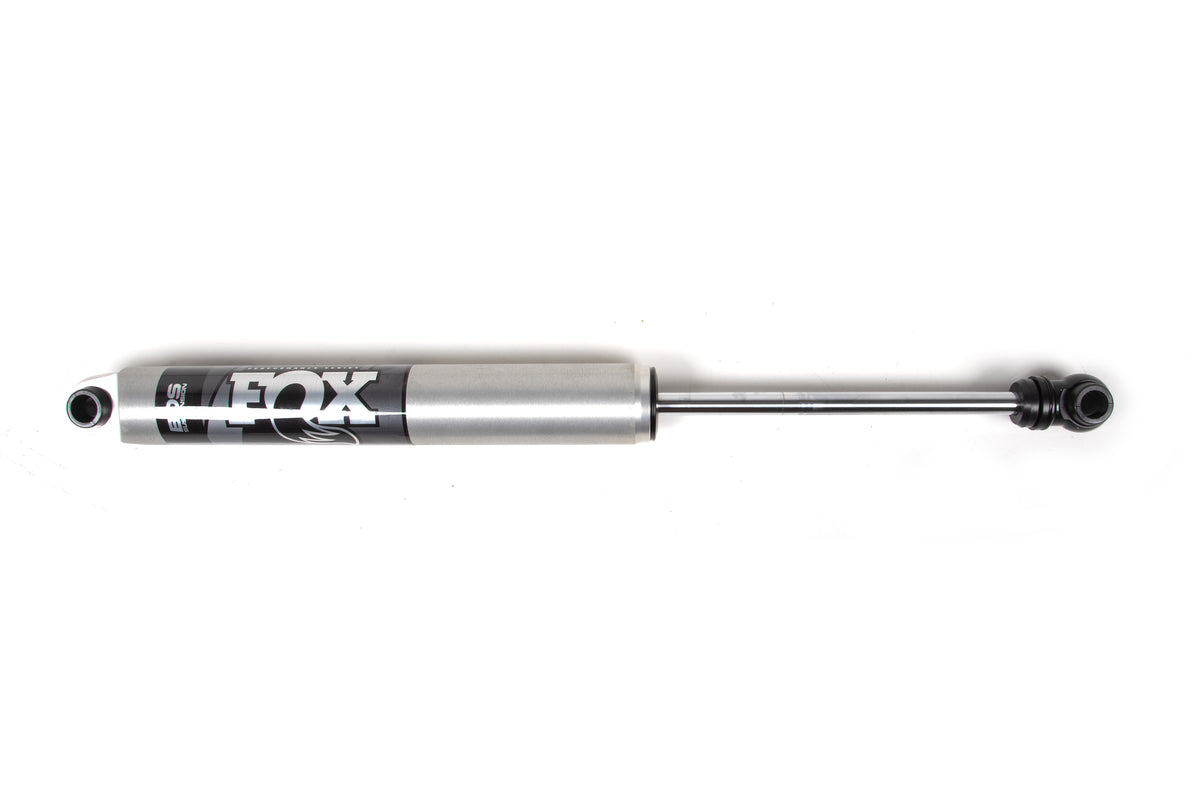

FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

Brand: FOX
SKU: FOX98224765
Kit Component List

×
$189.95
Subtotal: $189.95

Save to Build List

Find a Local Installer
FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

$189.95
FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (99-16)

$189.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 1999-2016 F-250/F-350 Super Duty to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 8-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Type : Shocks
  • Lower Mount Type : Eyelet
  • Upper Mount Type : EB1
  • Gas Charged : true
  • Adjustable : false
  • Adjustable Dampening : No Adjustable Dampening
  • Compressed Length : 20.4000 INCH
  • Travel Length : 15.1000 INCH
  • Extended Length : 35.5000 INCH
  • Shaft Diameter : 5_8
FITMENT
1999|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|5337|X|X;1999|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|5365|X|X;2000|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|5338|X|X;2000|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|5366|X|X;2001|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|5339|X|X;2001|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|5367|X|X;2002|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|5340|X|X;2002|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|5368|X|X;2003|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|5341|X|X;2003|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|5369|X|X;2004|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|18118|X|X;2004|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|18119|X|X;2005|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|18249|X|X;2005|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|18248|X|X;2006|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|18666|X|X;2006|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|18667|X|X;2007|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|19018|X|X;2007|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|19019|X|X;2008|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|28412|X|X;2008|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|28413|X|X;2009|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|30323|X|X;2009|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|30324|X|X;2010|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|95971|X|X;2010|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|95972|X|X;2011|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|96694|X|X;2011|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|96695|X|X;2012|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|118607|X|X;2012|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|118608|X|X;2013|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|119726|X|X;2013|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|119727|X|X;2014|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|127934|X|X;2014|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|127935|X|X;2015|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|129838|X|X;2015|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|129839|X|X;2016|Ford|F-250 Super Duty|X|4WD|X|X|X|Rear|8|0|136800|X|X;2016|Ford|F-350 Super Duty|X|4WD|X|X|X|Rear|8|0|136801|X|X
