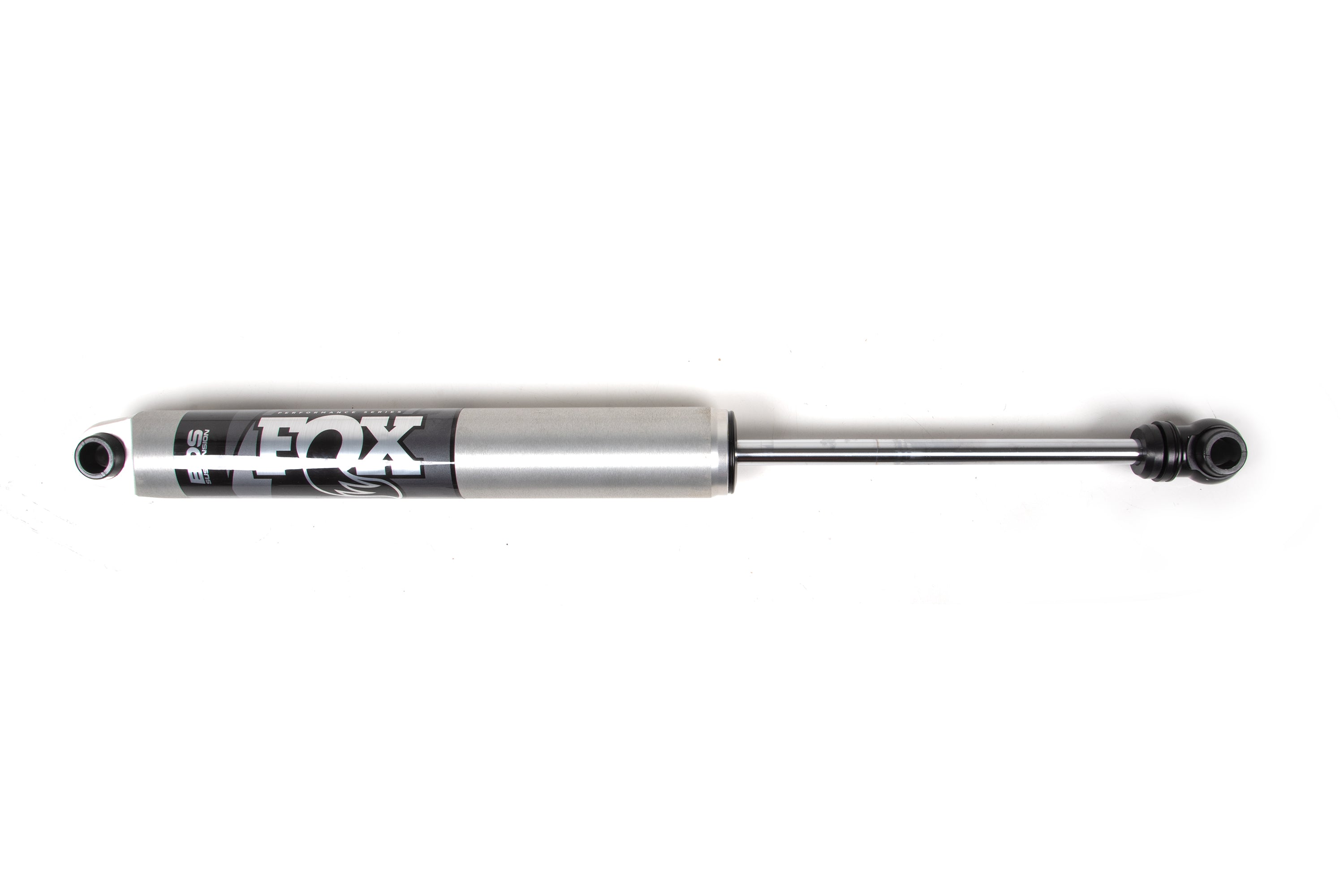

FOX 2.0 IFP Shock | Performance Series | 23.65 x 15.05 x 2- EB1/EB1

Brand: FOX
SKU: FOX98224620
Kit Component List

×
$189.95
Subtotal: $189.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_fox_20_shock1_01.jpg

FOX 2.0 IFP Shock | Performance Series | 23.65 x 15.05 x 2- EB1/EB1

$189.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_fox_20_shock1_01.jpg

FOX 2.0 IFP Shock | Performance Series | 23.65 x 15.05 x 2- EB1/EB1

$189.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your Truck or Jeep to FOX Performance Series 2.0 IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 14.17
  • Extended Length : 23.2
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 5_8
  • Travel Length : 9.03
  • Type : Smooth Body
  • Upper Mount Code : EB1
  • Upper Mount Type : Eyelet
FITMENT
1982|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1984|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1975|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1984|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1982|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1976|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1991|GMC|Jimmy|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1975|GMC|K15 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1974|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1984|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1990|GMC|Jimmy|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1978|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1974|GMC|K15/K1500 Pickup|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2000|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1974|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1982|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1981|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|GMC|V1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1976|GMC|K15|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1988|GMC|Jimmy|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1980|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1980|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1982|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2000|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1978|GMC|K15|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1973|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|Chevrolet|V10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2002|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1982|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|Chevrolet|V10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|GMC|K15|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1991|Chevrolet|V1500 Suburban|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1974|GMC|K15/K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1984|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1988|Chevrolet|V10 Suburban|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2000|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1978|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1976|GMC|K15 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1986|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|GMC|V1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2003|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1975|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1981|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1986|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1987|Chevrolet|Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1999|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1981|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1976|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1986|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2001|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1978|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1980|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1999|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1984|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2001|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1980|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1975|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2004|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1976|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1990|Chevrolet|V1500 Suburban|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1980|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1974|Chevrolet|K10 Pickup|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1973|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1989|Chevrolet|Blazer|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1973|GMC|K15/K1500 Pickup|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1981|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1990|Chevrolet|Blazer|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1978|GMC|K15 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1973|GMC|K15/K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2001|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1982|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2002|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2005|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1988|Chevrolet|Blazer|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1973|Chevrolet|K10 Pickup|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1986|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2004|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1986|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1976|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1979|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1975|Chevrolet|K5 Blazer|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1978|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1975|GMC|K15|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2003|Ford|F-250 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1984|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1977|GMC|K15 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2002|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1986|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1991|Chevrolet|Blazer|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1989|Chevrolet|V1500 Suburban|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1981|Chevrolet|K10|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1989|GMC|Jimmy|*|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1985|GMC|K1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1983|Chevrolet|K10 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;1980|GMC|Jimmy|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||;2004|Ford|Excursion|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2003|Ford|F-350 Super Duty|*|4WD|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;1981|GMC|K1500 Suburban|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|4"||||||||||
