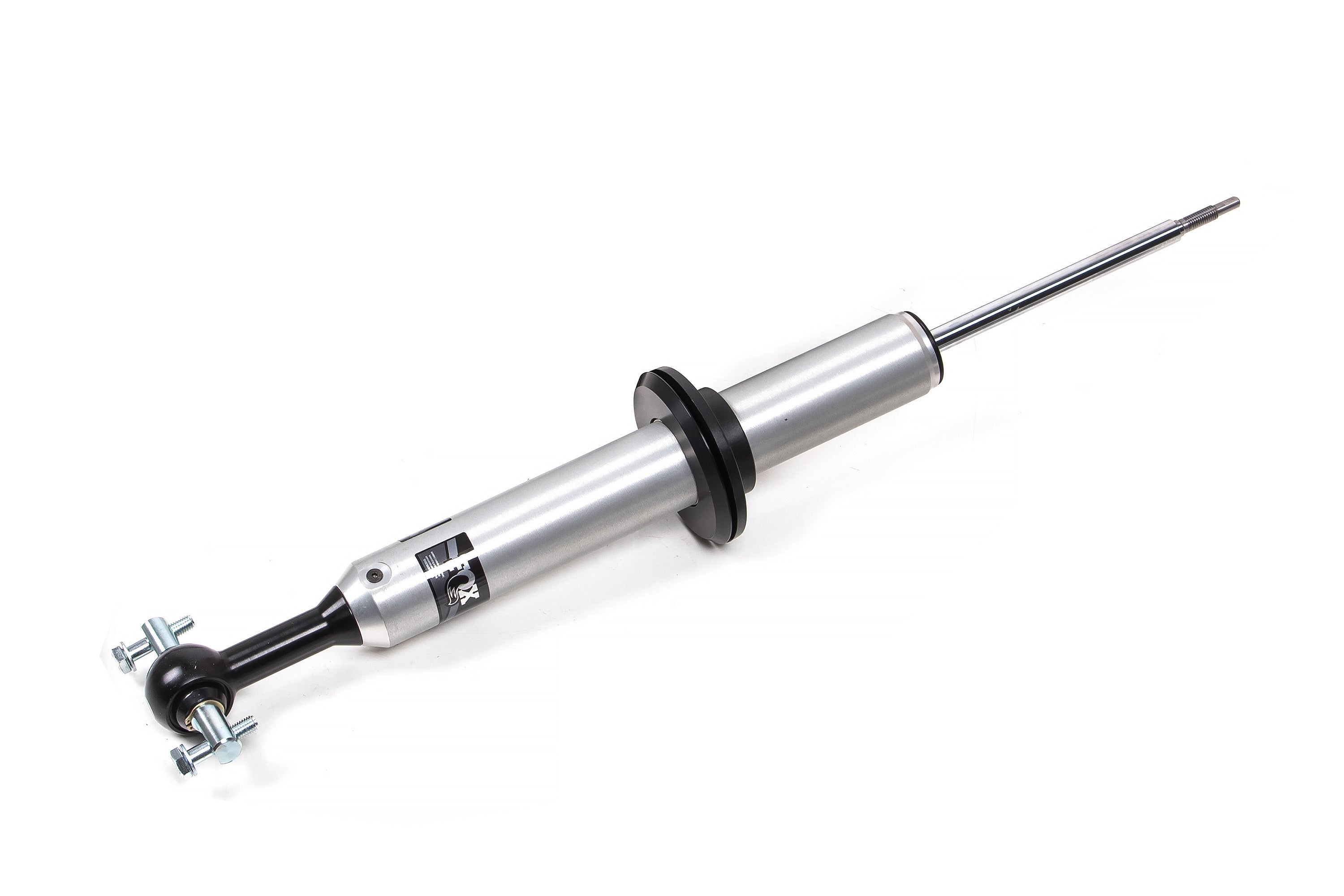

FOX 2.0 Snap Ring Strut IFP Shock - Single | Performance Series | 0-2 Inch Lift | Chevy Silverado and GMC Sierra 1500 (19-24)

Brand: FOX
SKU: FOX98562012
Kit Component List

×
$299.95
Subtotal: $299.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_98562002_98562004_98562012_01.jpg

FOX 2.0 Snap Ring Strut IFP Shock - Single | Performance Series | 0-2 Inch Lift | Chevy Silverado and GMC Sierra 1500 (19-24)

$299.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_98562002_98562004_98562012_01.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_98562002_98562004_98562012_02.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_98562002_98562004_98562012_03.jpg

FOX 2.0 Snap Ring Strut IFP Shock - Single | Performance Series | 0-2 Inch Lift | Chevy Silverado and GMC Sierra 1500 (19-24)

$299.95
OVERVIEW

Improve on-road comfort and off-road control of your 2019-2024 Chevy Silverado or GMC Sierra 1500 with FOX Performance Series 2.0 Snap Ring IFP (internal floating piston) shocks. The mono-tube design’s internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

Features & Benefits

  • Custom-molded spring seat so you can reuse the stock spring and mounting hardware
  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 18.6
  • Extended Length : 23.82
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : BP7
  • Lower Mount Type : Bar Pin
  • Shaft Diameter : 5_8
  • Travel Length : 5.22
  • Type : Snap Ring Coil-Over
  • Upper Mount Code : OEM
  • Upper Mount Type : OEM
FITMENT
2023|Chevrolet|Silverado 1500|High Country|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2019|Chevrolet|Silverado 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LTZ|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2021|Chevrolet|Silverado 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LT Trail Boss|4WD|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|RST|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|Denali|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LT|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|SLT|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LTZ|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|LT Trail Boss|4WD|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|SLE|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|AT4|4WD|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|PPV|4WD|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|SLE|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LT|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Pro|*|FLEX|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2019|GMC|Sierra 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|Custom|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|High Country|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|Custom Trail Boss|4WD|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|WT|*|FLEX|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|Denali Ultimate|4WD|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2020|Chevrolet|Silverado 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Elevation|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|SLE|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2021|GMC|Sierra 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|Pro|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|WT|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2020|GMC|Sierra 1500|*|*|*|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|LTZ|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|RST|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Denali Ultimate|4WD|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Denali Ultimate|4WD|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|Elevation|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|WT|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Denali|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|Custom Trail Boss|4WD|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|Custom Trail Boss|4WD|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|AT4|4WD|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Denali|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|GMC|Sierra 1500|SLT|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|Chevrolet|Silverado 1500|LT Trail Boss|4WD|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|Custom|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|High Country|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|SLT|*|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Elevation|*|DIESEL|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|RST|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|Pro|*|GAS|*|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2022|Chevrolet|Silverado 1500|LT|*|*|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||;2023|GMC|Sierra 1500|AT4|4WD|GAS|4|7556|Shock Absorber|Each|0||||Front|22|2"||||||||||
