2.5 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

Brand: BDS
SKU: BDS1925FPE
Kit Component List

×
$4,039.60
Subtotal: $4,039.60

I have read the Important Notes and Verified my Vehicle Fitment

2.5 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

2.5 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

$4,039.60

2.5 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

$4,039.60
Rear Lift Option: 5 Inch Block Kit

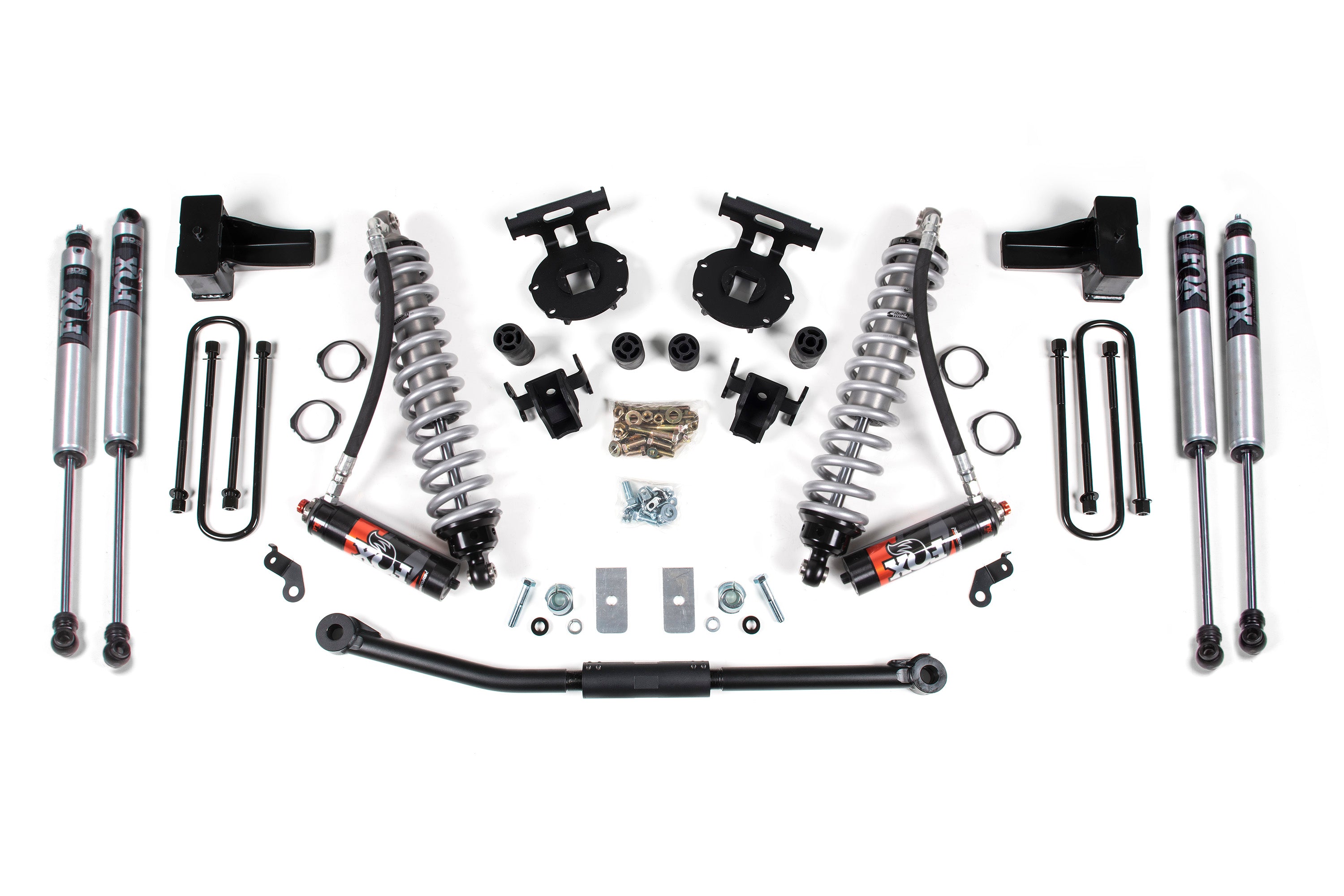

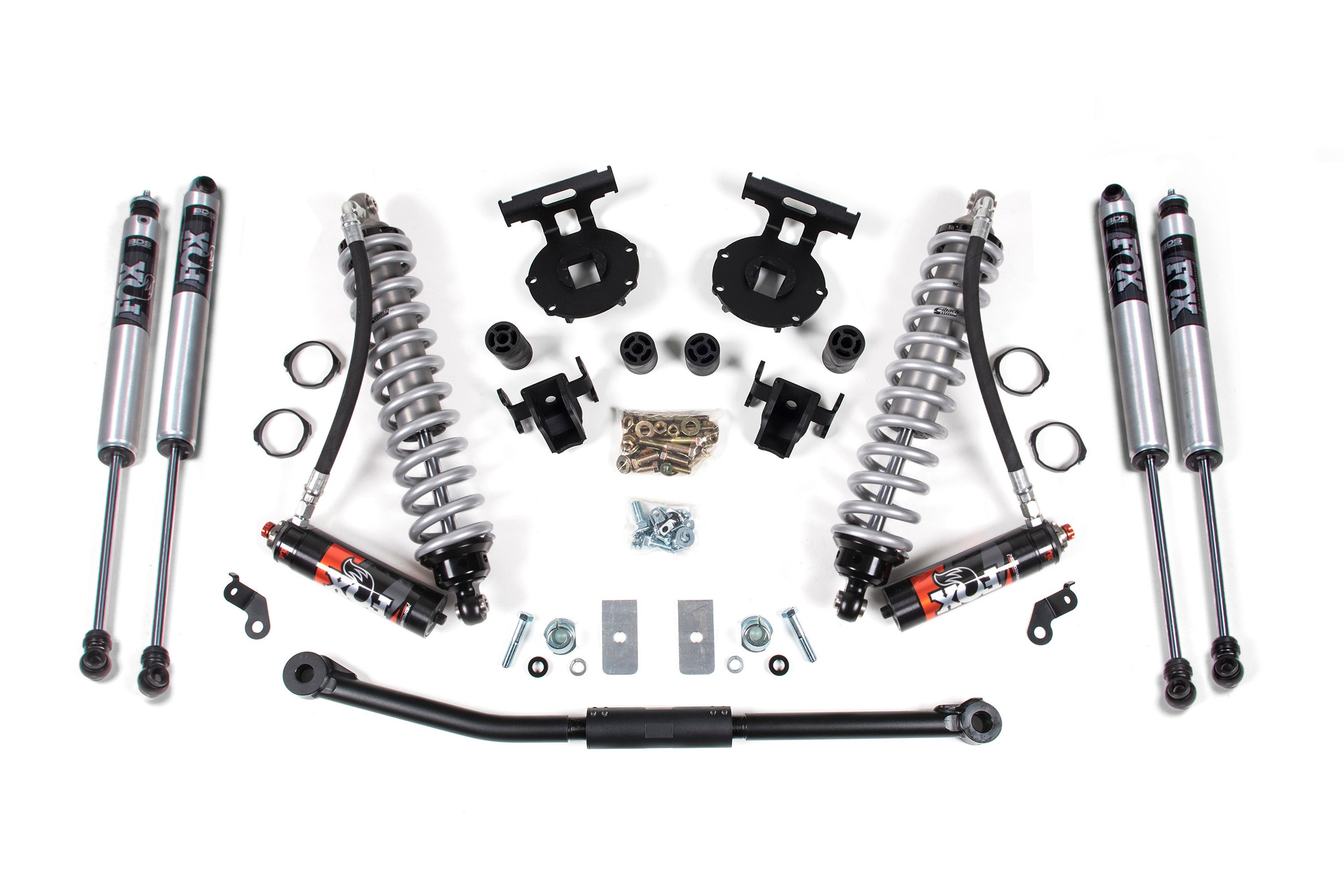

Improve the ride, up the ante, and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit and FOX Performance Elite coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

No Block

  • Tail low stance

4 Inch Block Kit

  • Level stance

5 Inch Block Kit

  • Tail high stance
  1. Exhaust modification may be required to clear the front driveshaft (gas only)
  2. Front bumper spacer kit may be required to run 38"x15.50" tires
  3. Although extremely rare, front driveline vibration may occur
  4. If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
  5. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
  6. If equipped with a rear sway bar, #123009 is required.
  7. U-bolts will not work on dually.
  8. Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone

BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
