2 Inch Leveling Kit | Ford Ranger (19-23) 4WD

Brand: BDS
SKU: BDS1544H
Kit Component List

×
$162.85
$130.28
Subtotal: $130.28

I have read the Important Notes and Verified my Vehicle Fitment

2 Inch Leveling Kit | Ford Ranger (19-23) 4WD

2 Inch Leveling Kit | Ford Ranger (19-23) 4WD

$162.85 $130.28

2 Inch Leveling Kit | Ford Ranger (19-23) 4WD

$162.85 $130.28
Rear Shock Option: NX2 Nitro Series

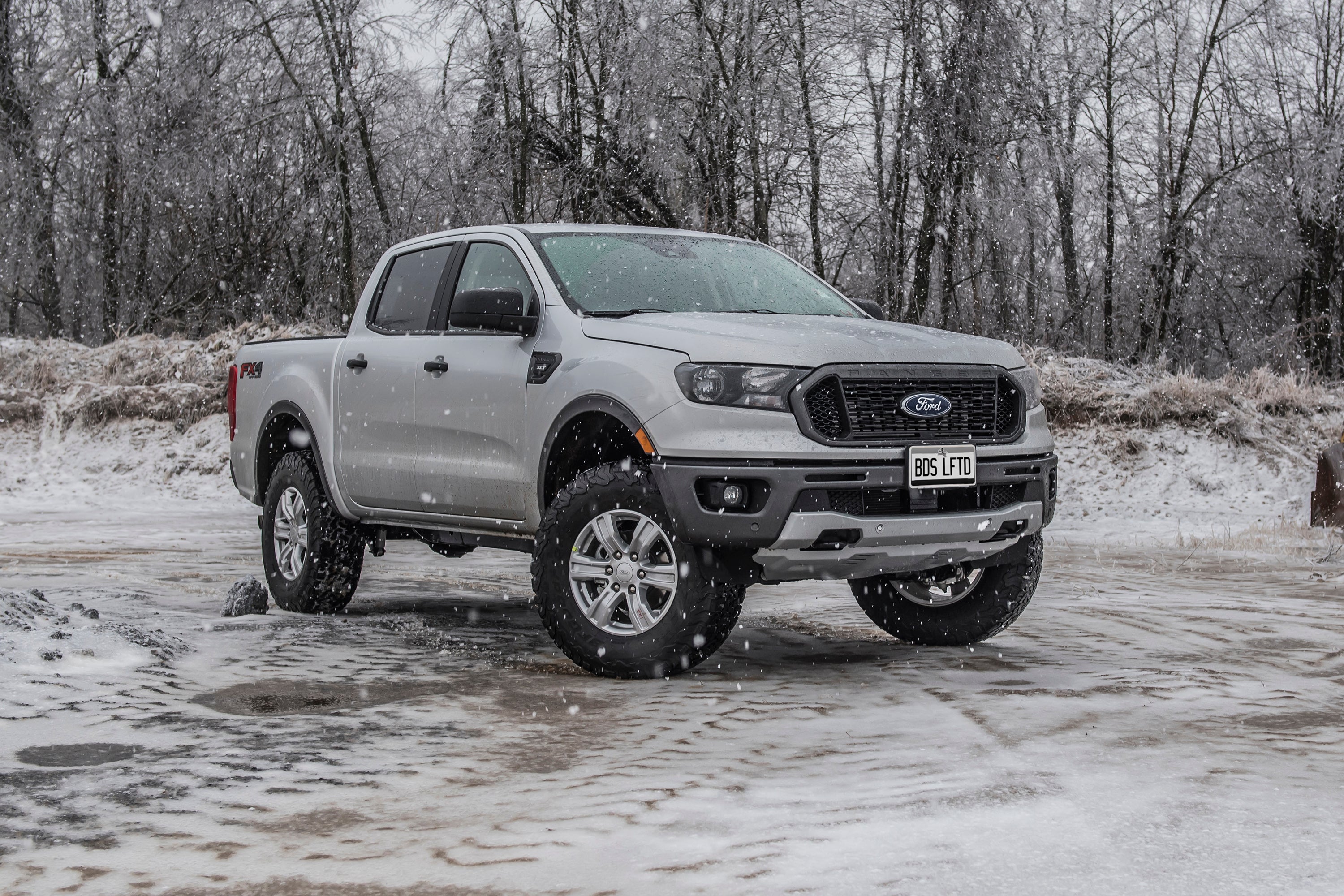

Level the front of your 2019-2023 Ford Ranger truck by installing this 2-inch leveling kit from BDS. Specially designed for the new Ranger, this 2" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

The lift kit includes steel top mount strut spacers, pre-load spacer and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2" leveling kit from BDS Suspension.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 285 / 70 with 17 x 8 and in. Backspace
  • 285 / 65 with 18 x 9 and in. Backspace

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.
