Brand: BDS
SKU: BDS360H
Kit Component List

×
$955.65
Subtotal: $955.65

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

$955.65
4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

$955.65
Rear Lift Option: Block Kit
OVERVIEW

Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

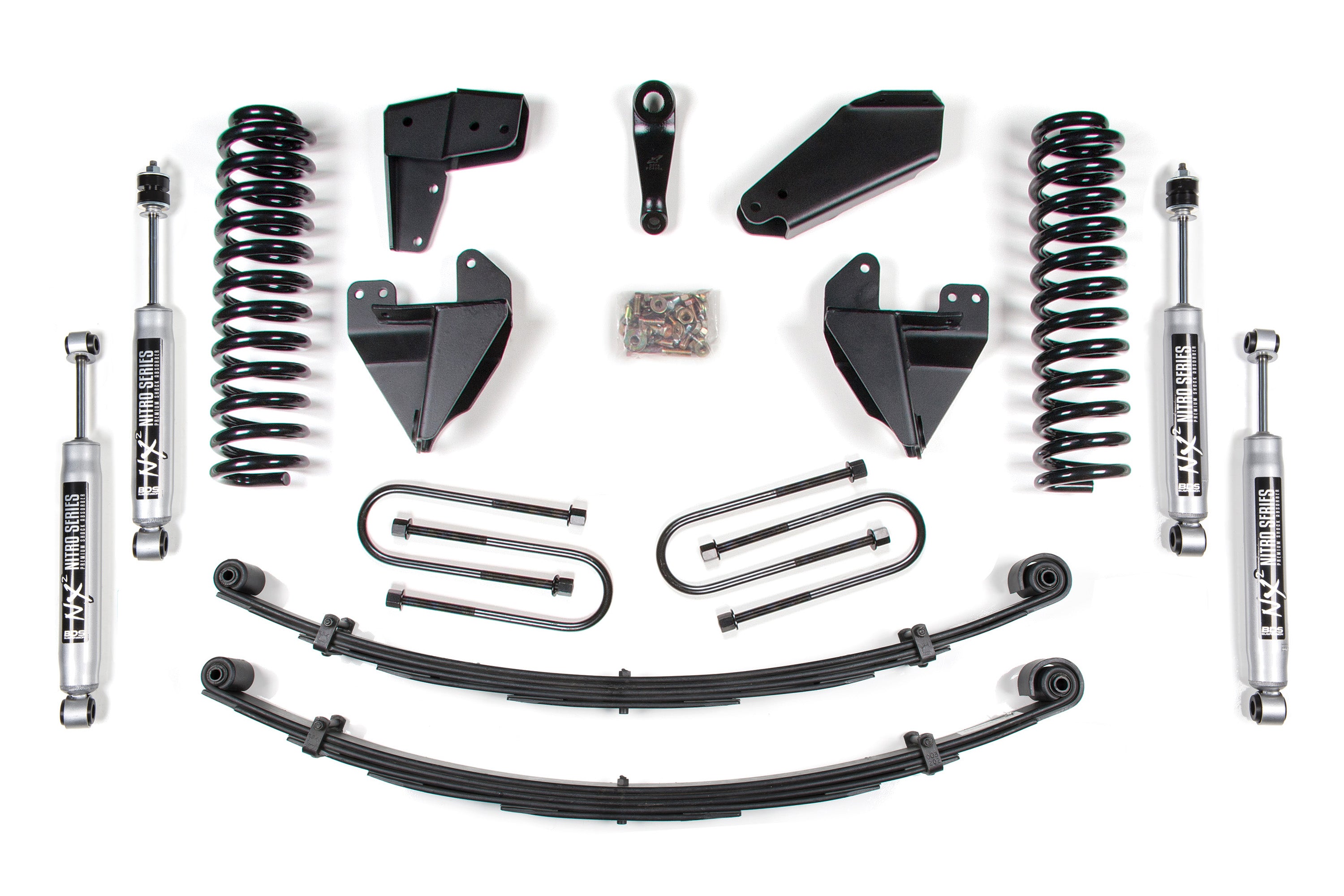

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.



Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Options

Block Kit

  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

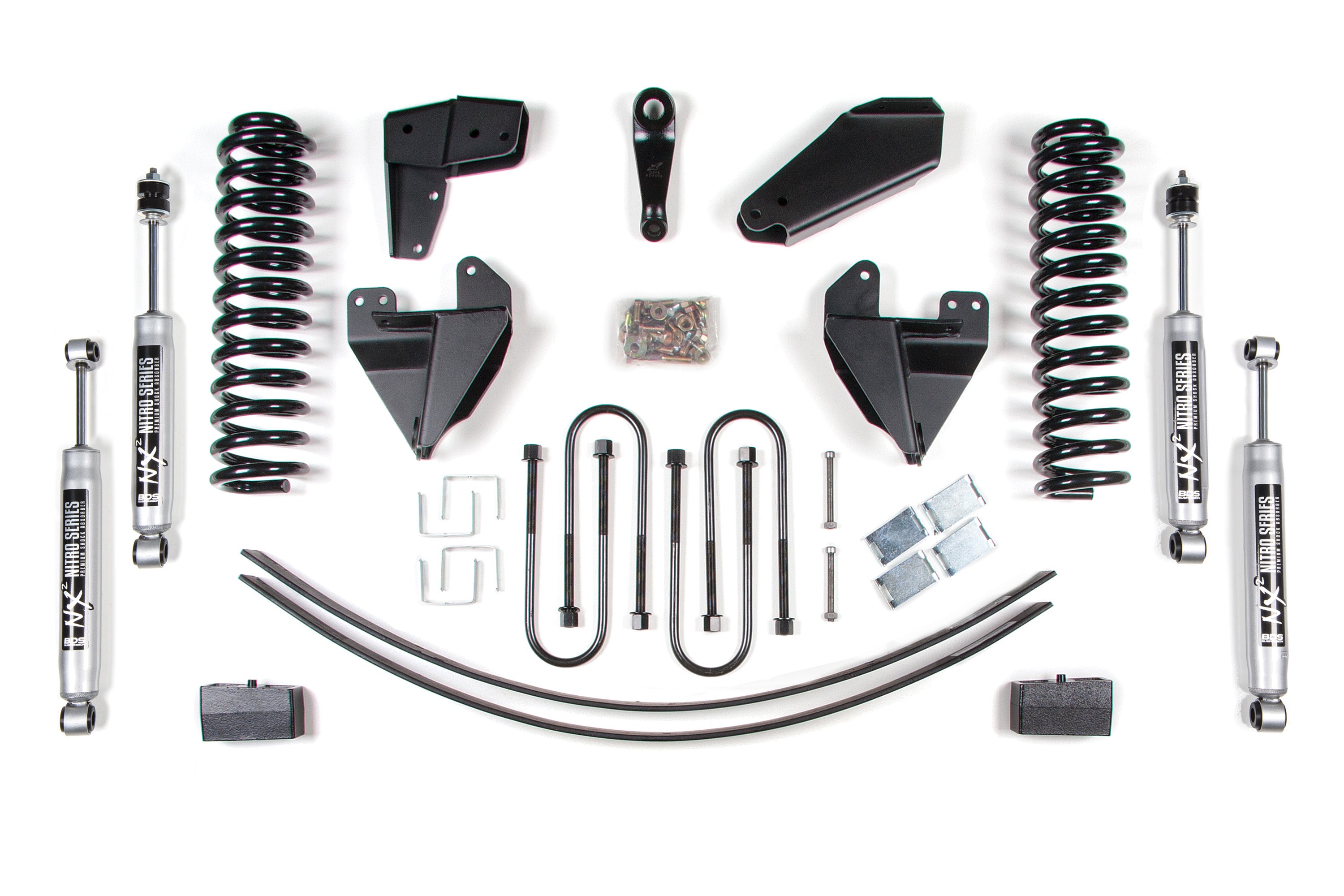

Block Kit + Add-A-Leaf

  • Add-a-leaf helps freshen up old worn-out factory leaf springs.
  • Blocks are made from cast iron for max strength.
  • Includes new center pins.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.
IMPORTANT NOTES
  1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
  2. Does not fit Broncos without power steering.
  3. Front alignment cams available in the accessories may be required for alignment.
  4. Extended brake lines required for all 4-6" lift systems.
