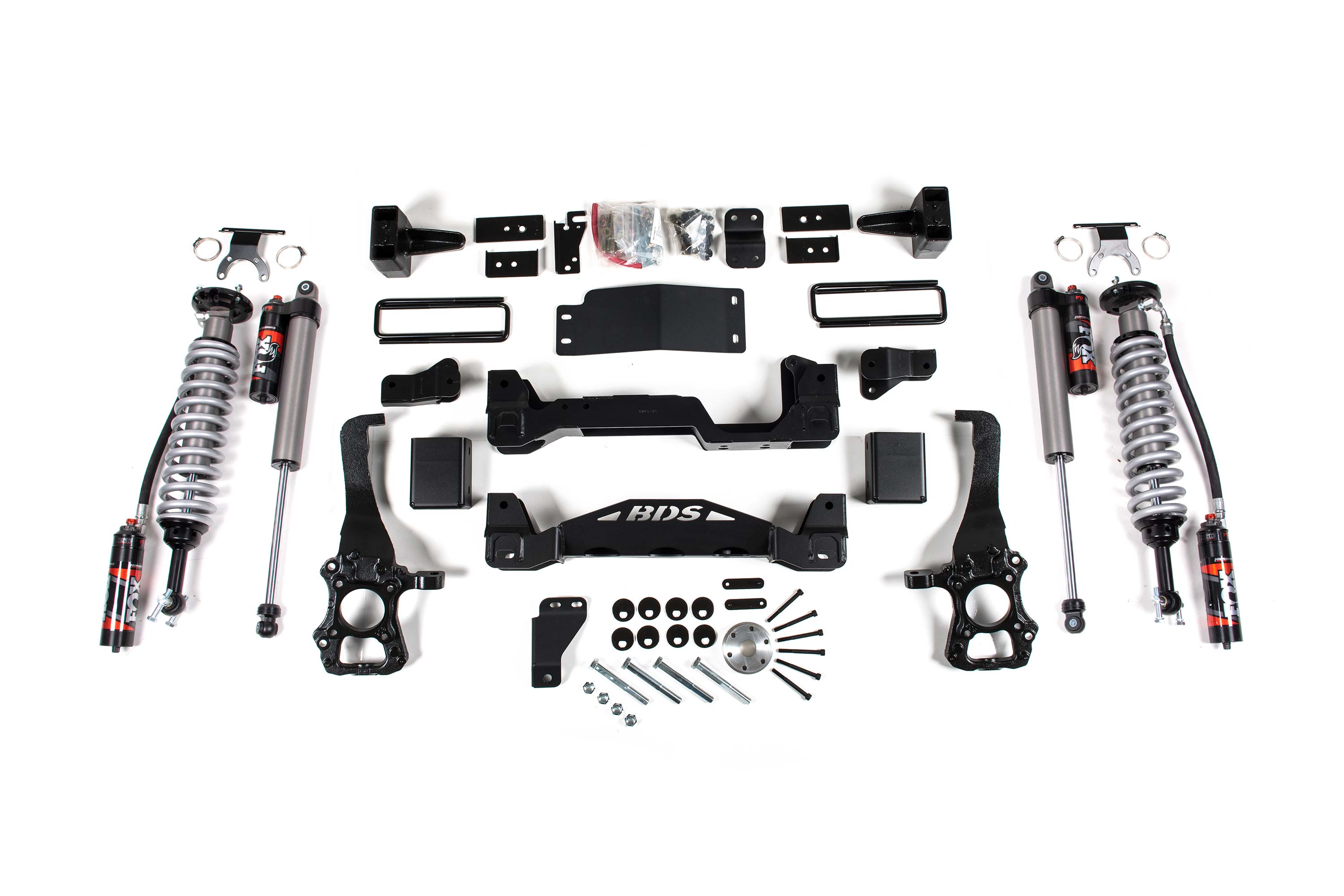

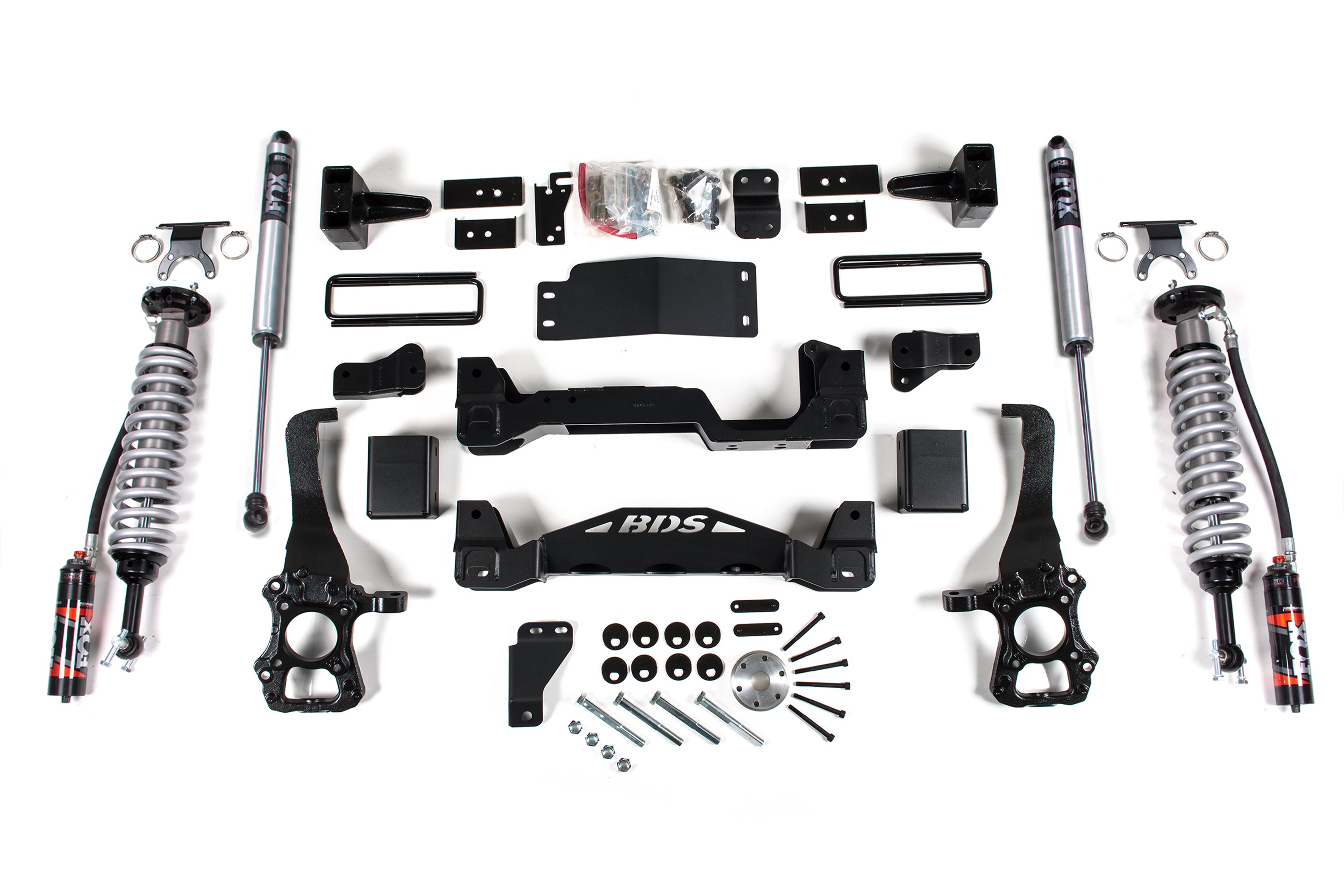

Maximize the performance and capability of your 2015-2020 Ford F-150 with BDS 4-inch coil-over suspension lift kits. Available with your choice of FOX 2.0 Performance Series Coilovers or FOX 2.5 Performance Elite Coilovers up front, these kits are engineered to deliver increased suspension travel, exceptional off-road capability, and smooth on-road comfort. Designed for a direct bolt-on installation, each kit includes the components needed to properly lift your F-150 while providing clearance for tires up to 35 inches.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit features your choice of FOX 2.0 Performance Series coil overs or FOX 2.5 Performance Elite coil overs, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with your choice of perfectly tuned FOX 2.0 Performance Series shocks or FOX 2.5 Performance Elite Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
