4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas

Brand: BDS
Kit Component List

Subtotal: $2,258.55

I have read the Important Notes and Verified my Vehicle Fitment

4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas

4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas


4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas

Rear Lift Option: Without Factory Rear Overload Leaf
Shock Option: NX2 Nitro Series

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

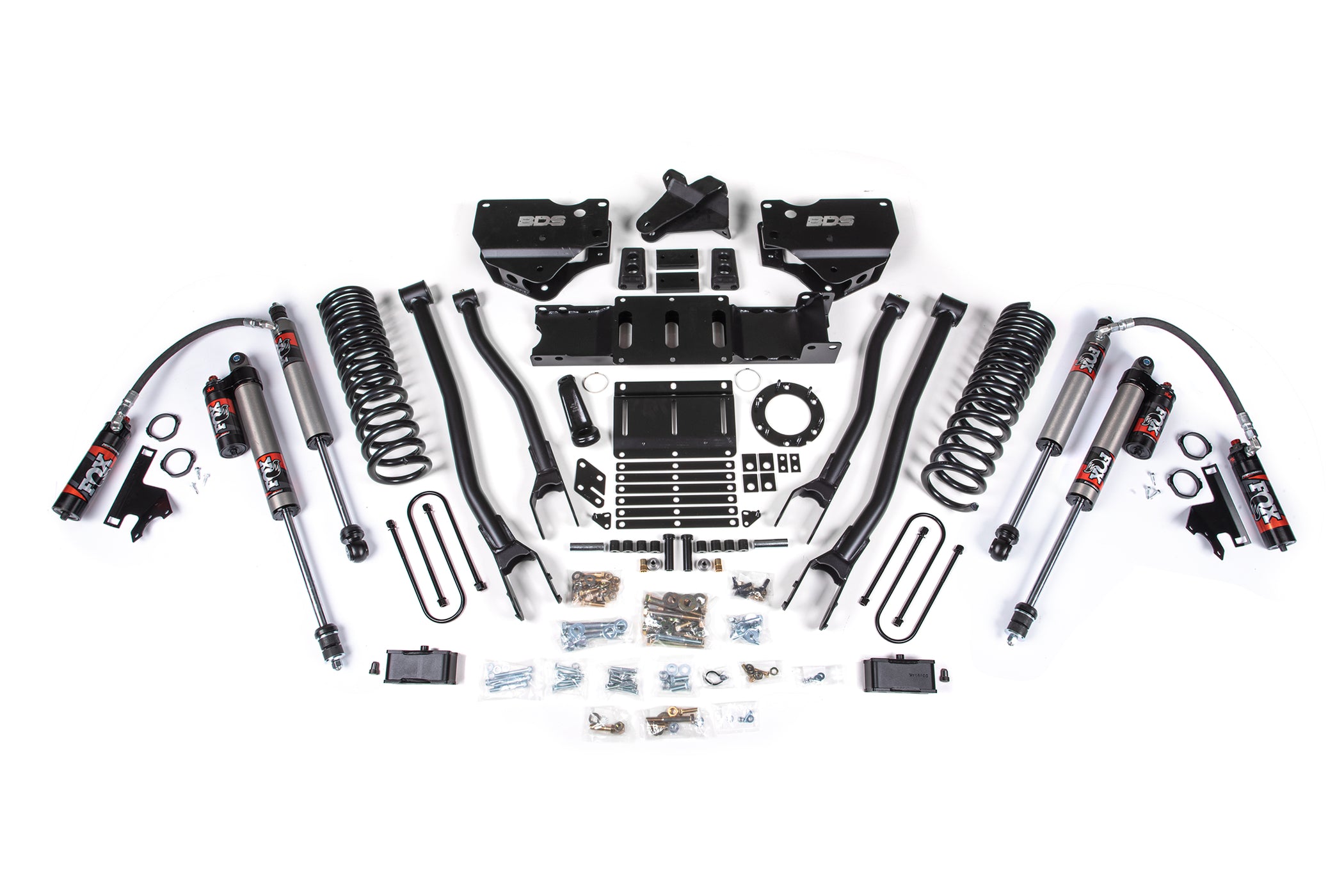

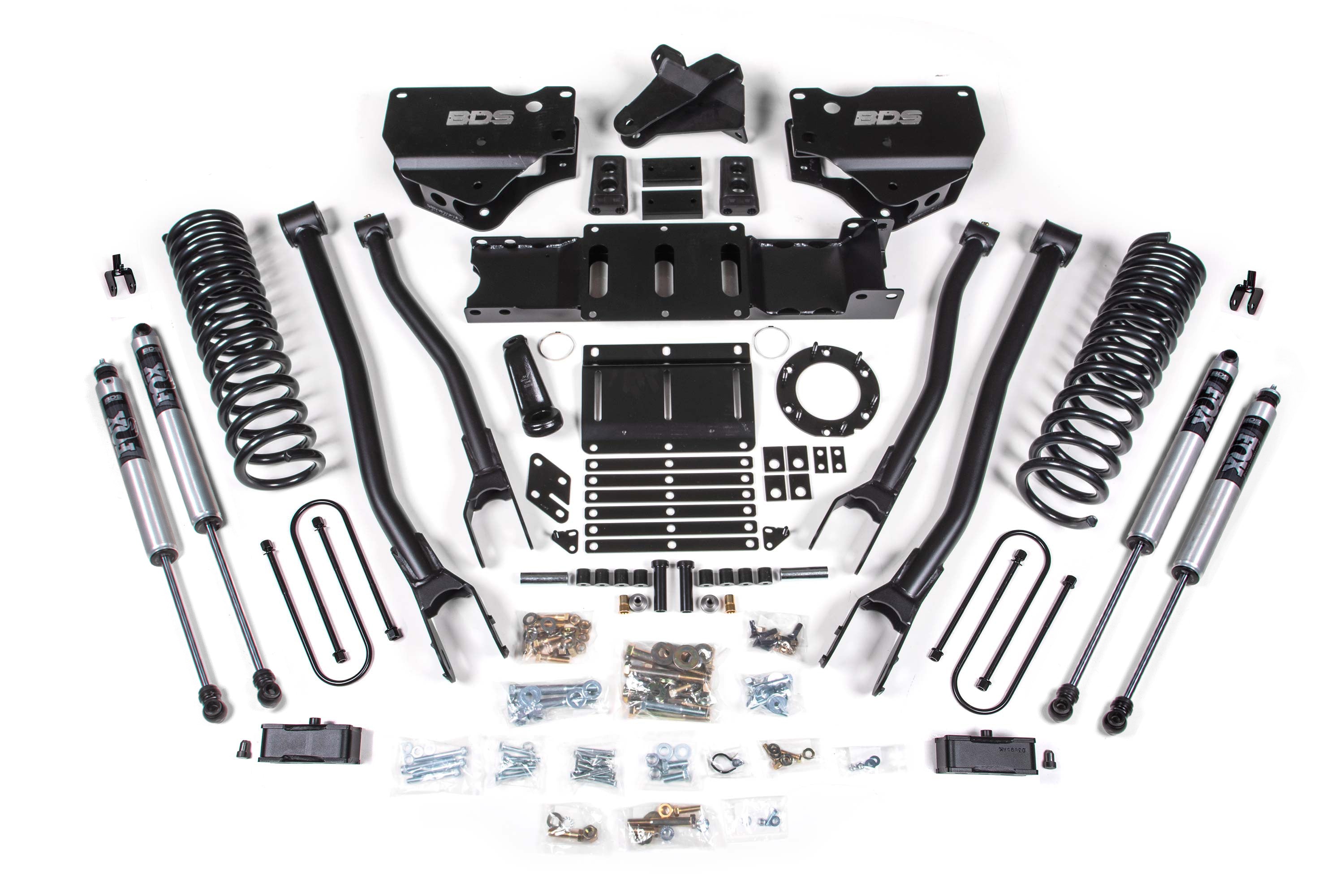

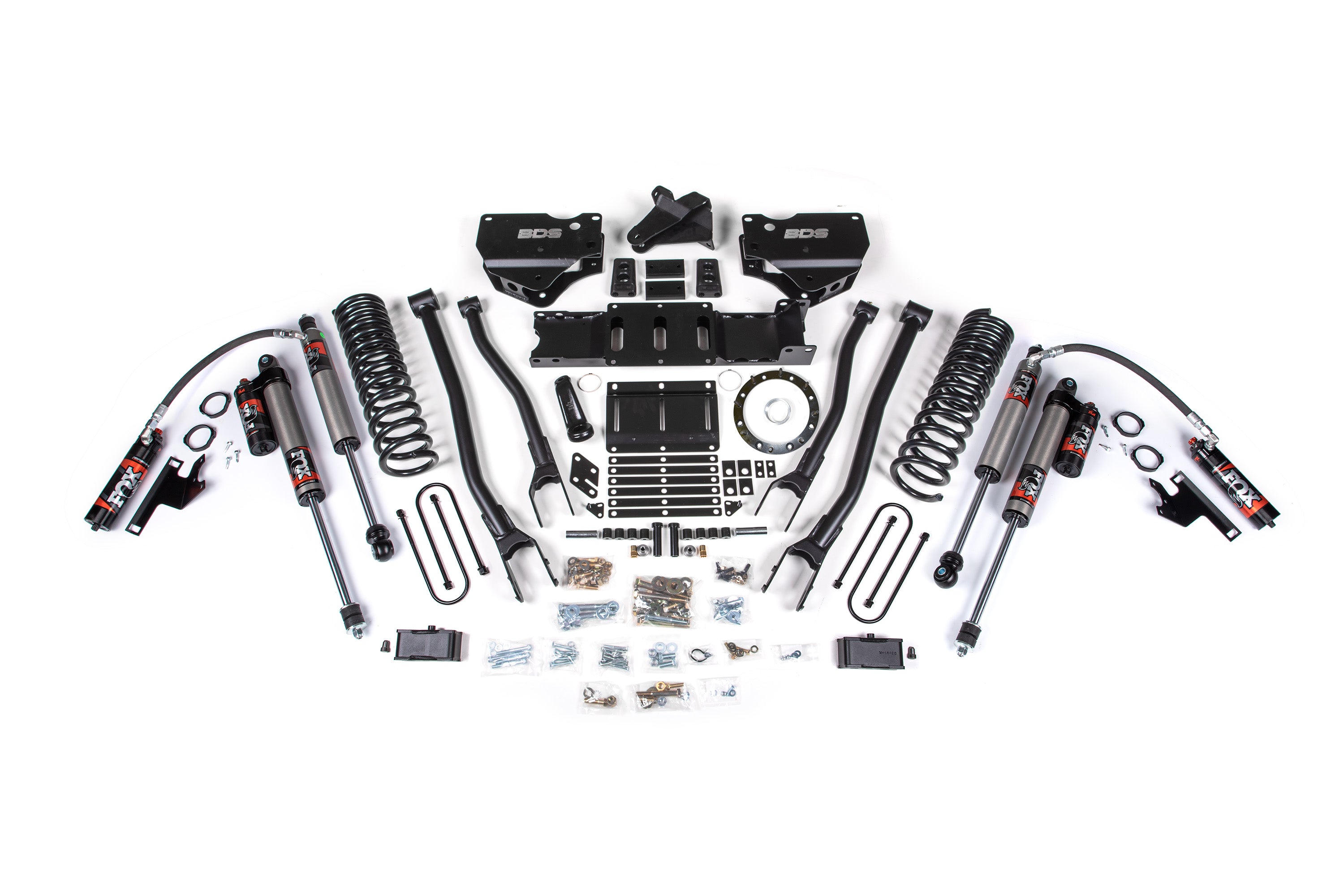

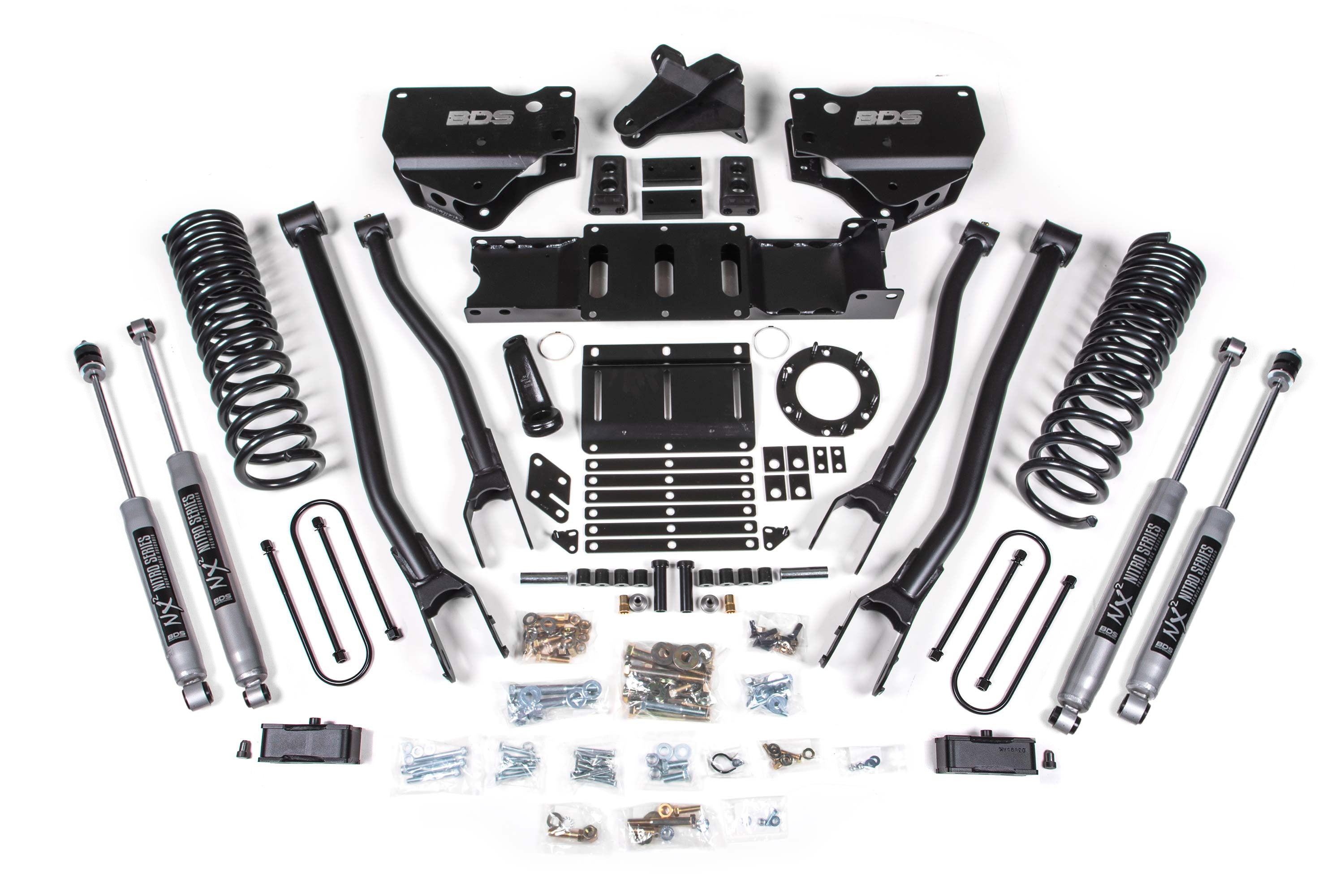

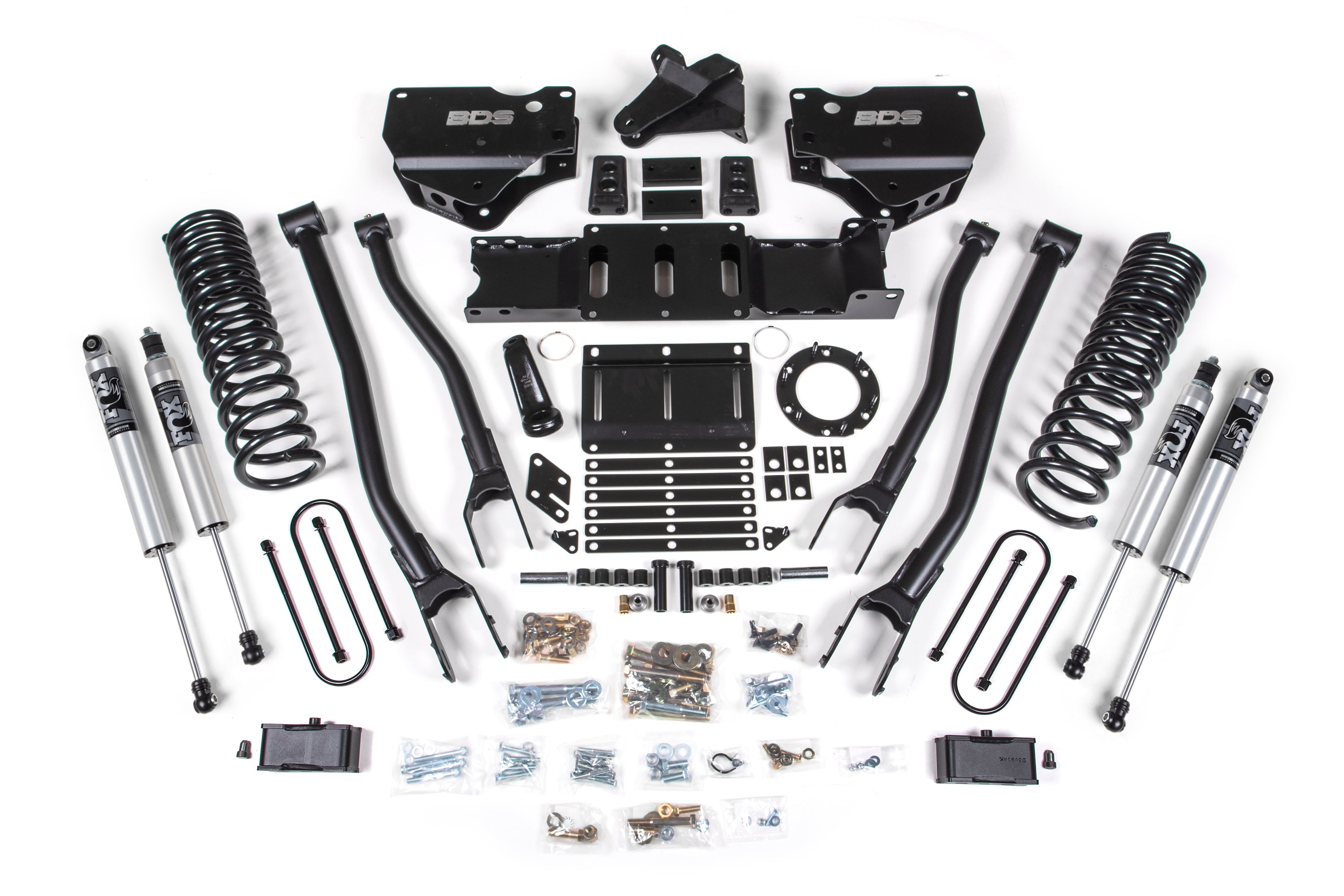

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Rear Lift Option

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Indexing Ring

6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.
  • A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  • Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
  • Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
