6 Inch Lift Kit | 4-Link Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel

Brand: BDS
SKU: BDS1527FS
Kit Component List

×
$3,137.45
Subtotal: $3,137.45

I have read the Important Notes and Verified my Vehicle Fitment

6 Inch Lift Kit | 4-Link Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel

6 Inch Lift Kit | 4-Link Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel

$3,137.45

6 Inch Lift Kit | 4-Link Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel

$3,137.45
Rear Lift Option: 5 Inch Block with 2 Leaf Main
Shock Option: FOX 2.0 Performance Series

Take your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.



4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 9 and 5 in. Backspace
  • 38 x 13.5 with 17 x 10 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

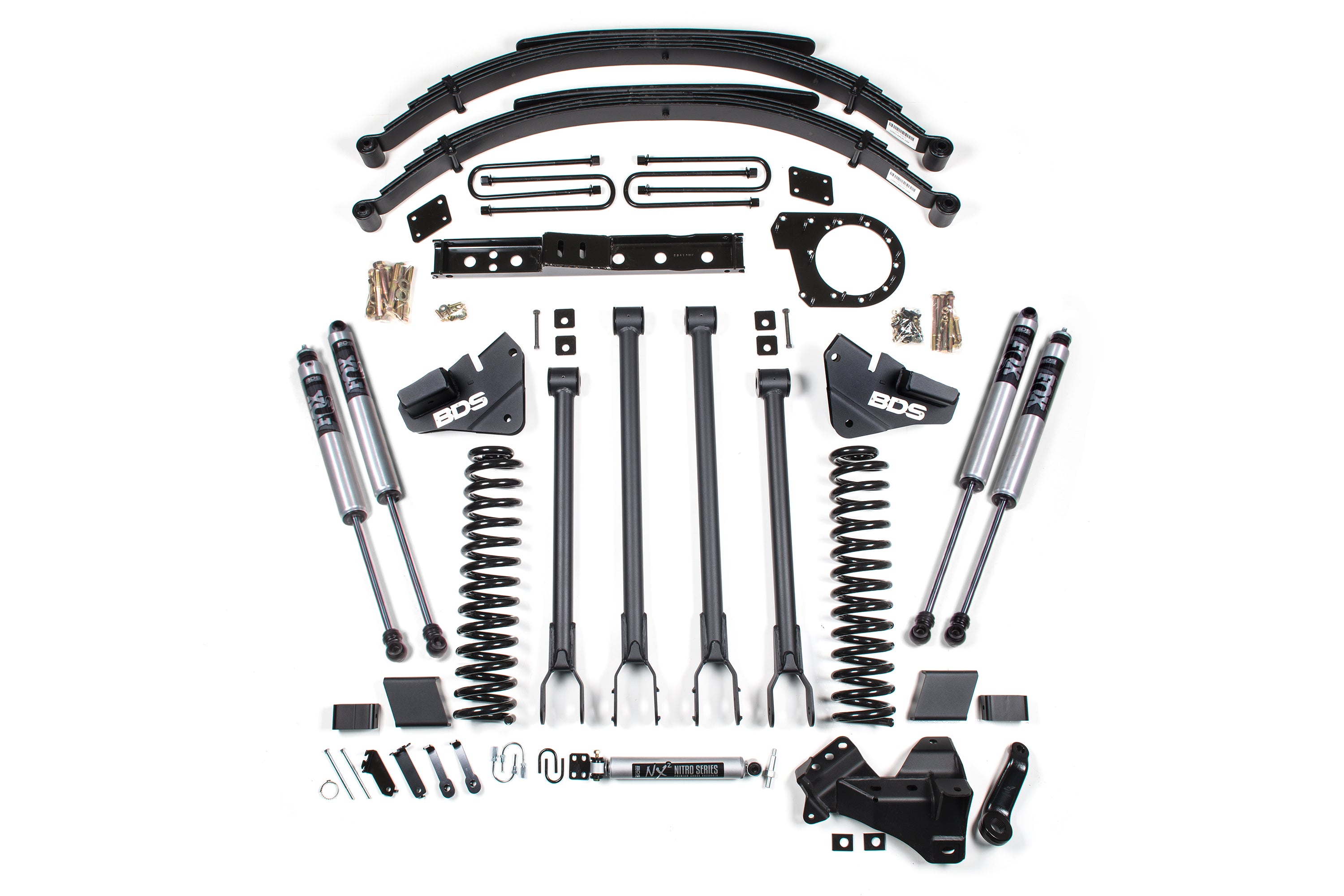

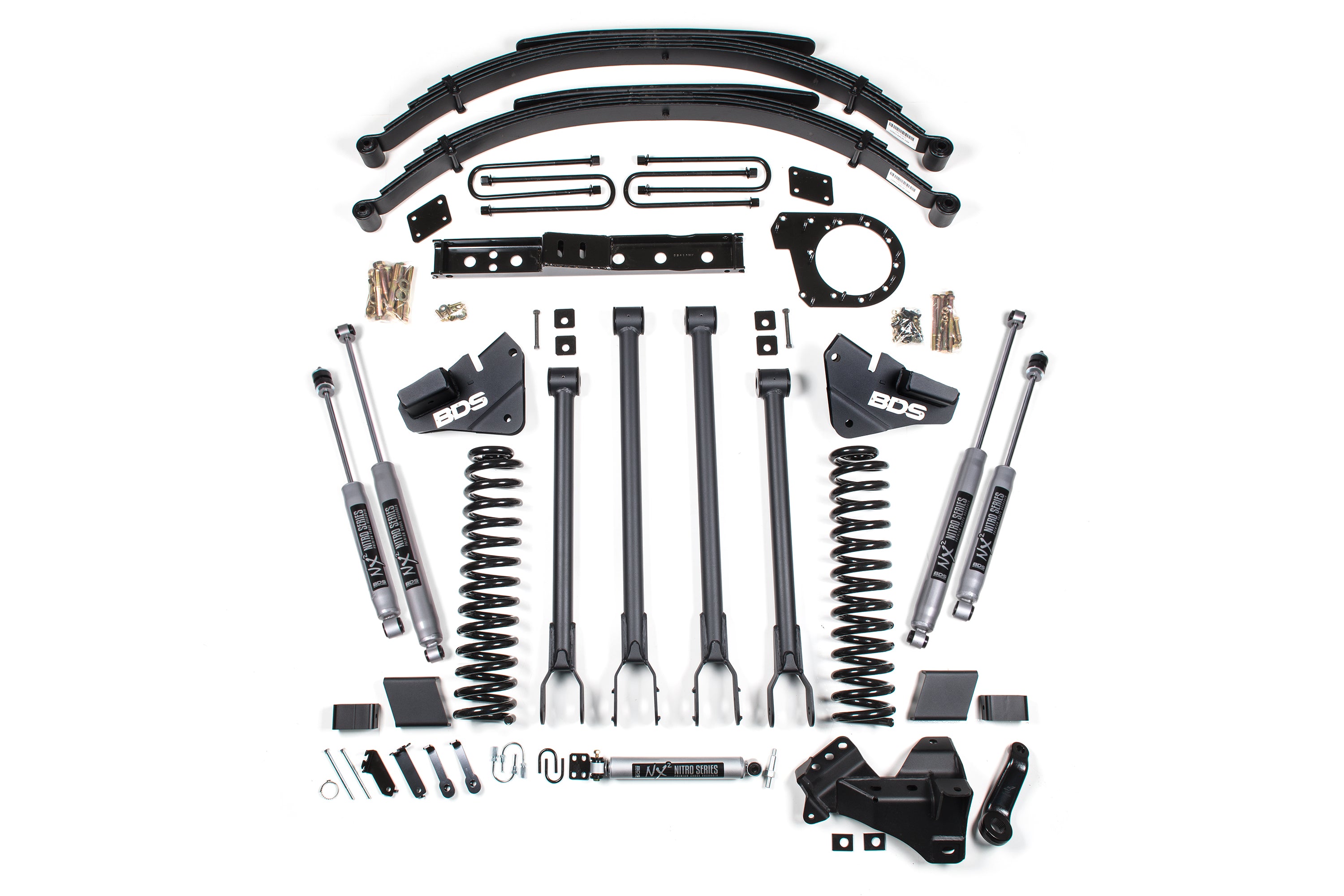

Leaf Springs

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Shock Option

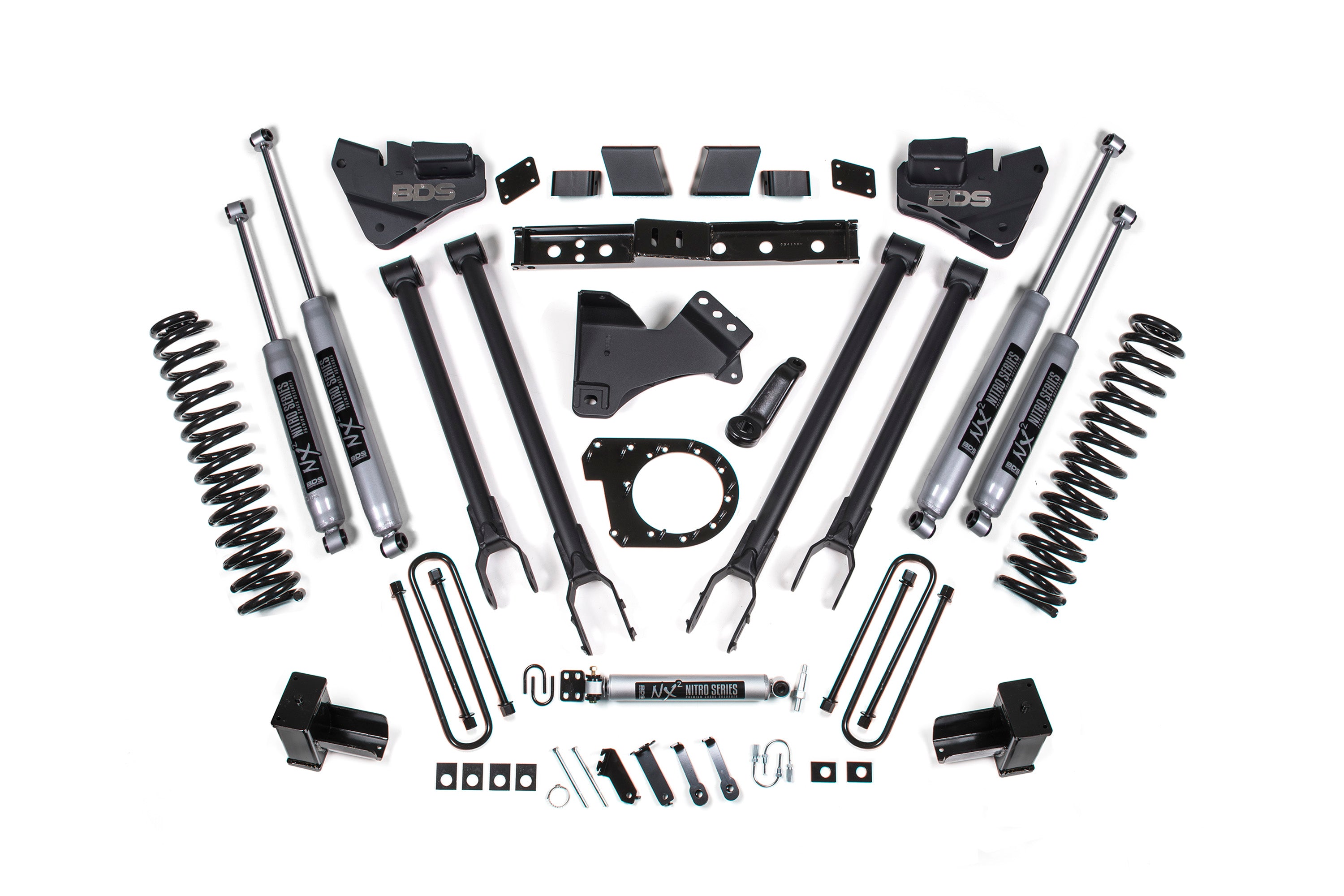

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

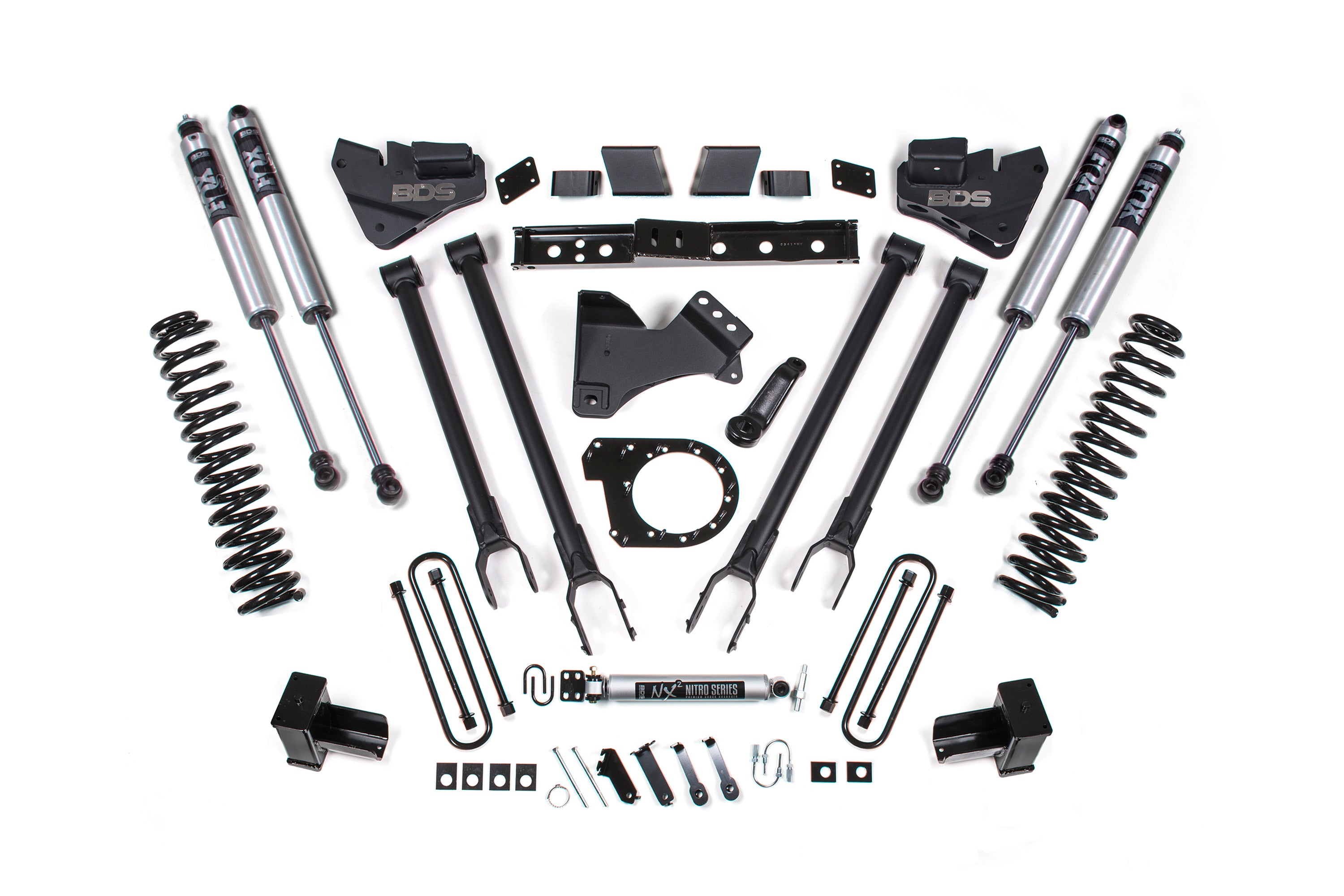

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

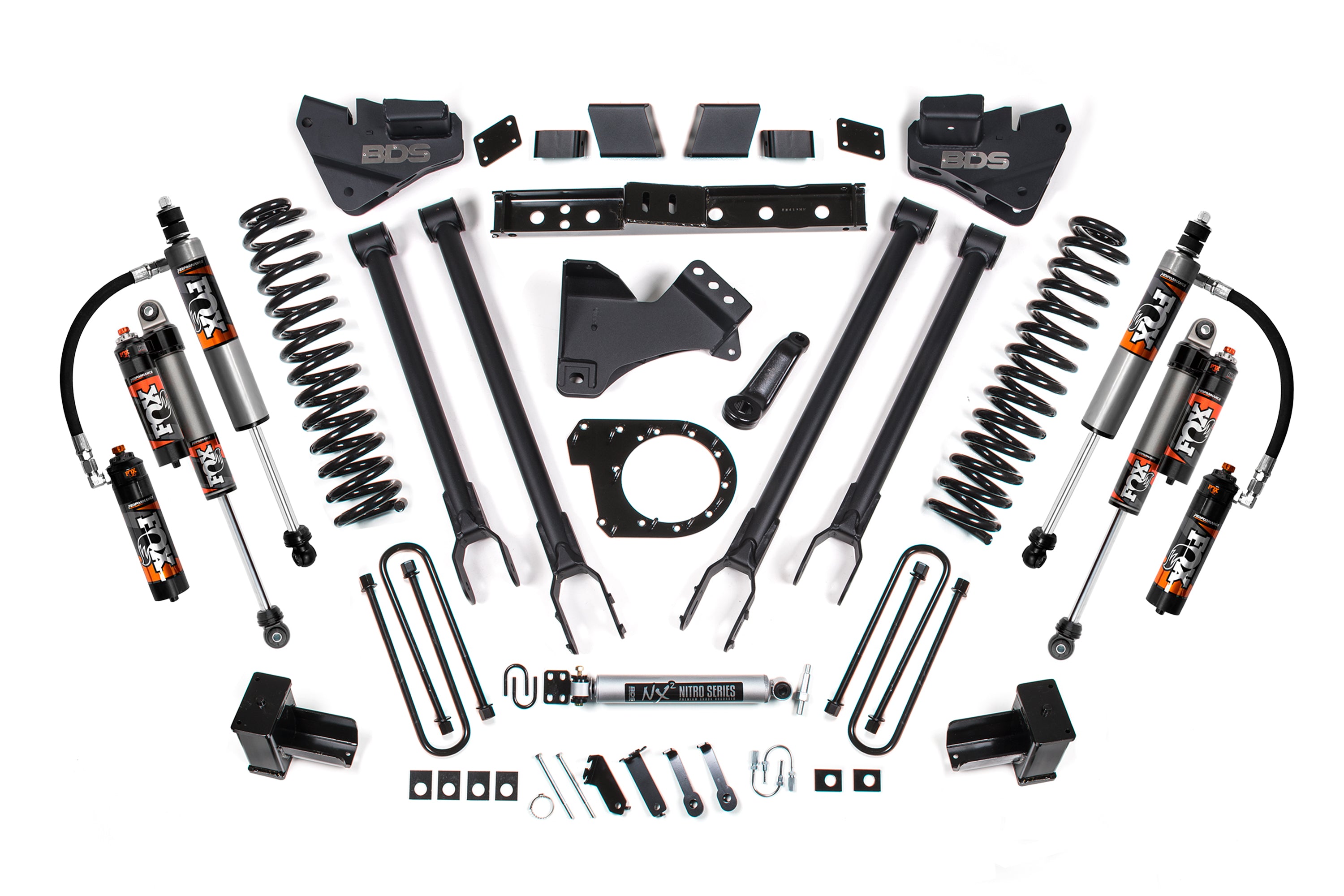

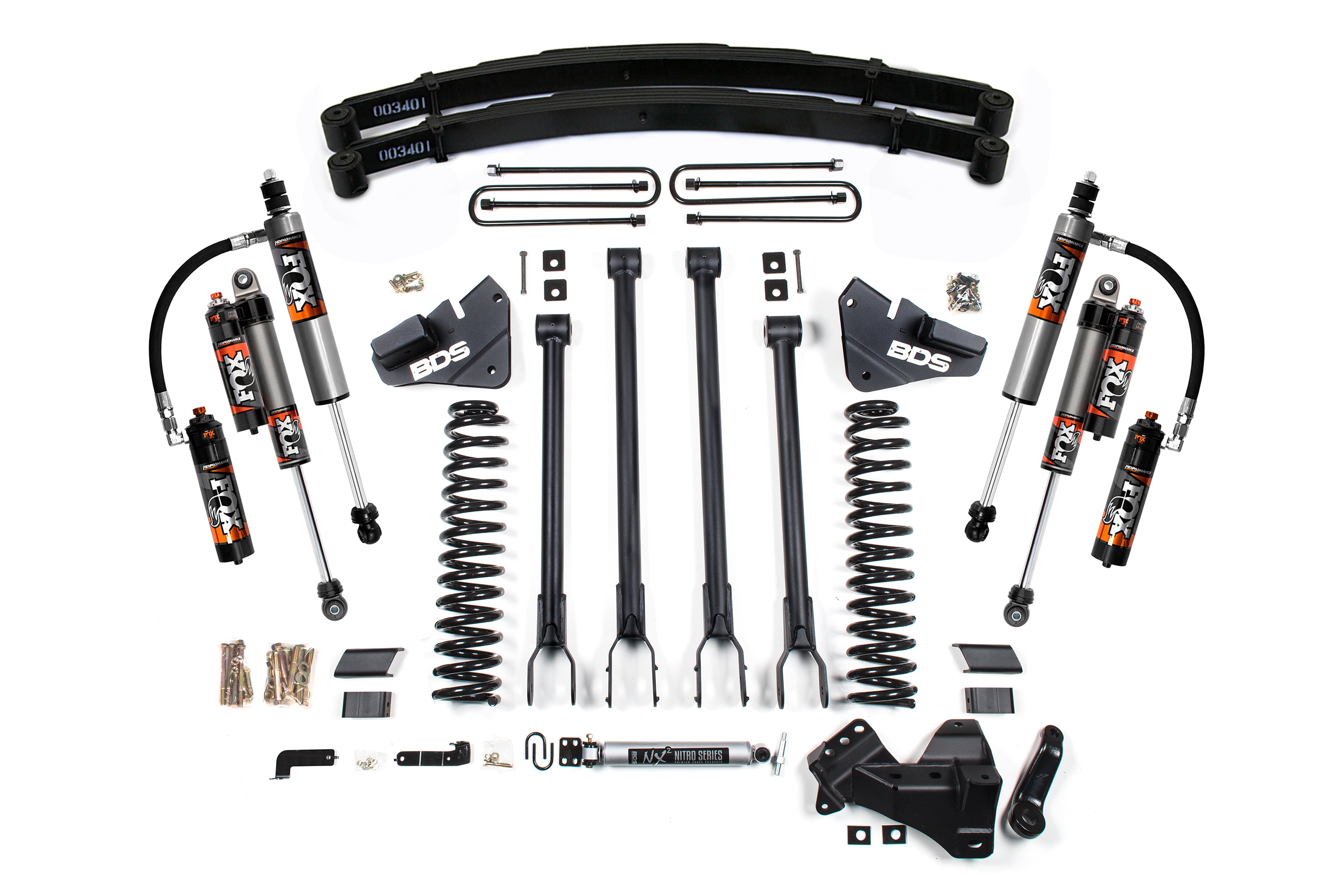

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 38 x 13.50 tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  4. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  5. If your truck is equipped with a factory rear sway bar add: 123005
  6. The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
