6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

Brand: BDS
SKU: BDS366H
Kit Component List

×
$1,113.60
$890.88
Subtotal: $890.88

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

$1,113.60 $890.88
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD
6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

6 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

$1,113.60 $890.88
Rear Lift Option: Block Kit and Add-A-Leaf
OVERVIEW

Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.



Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

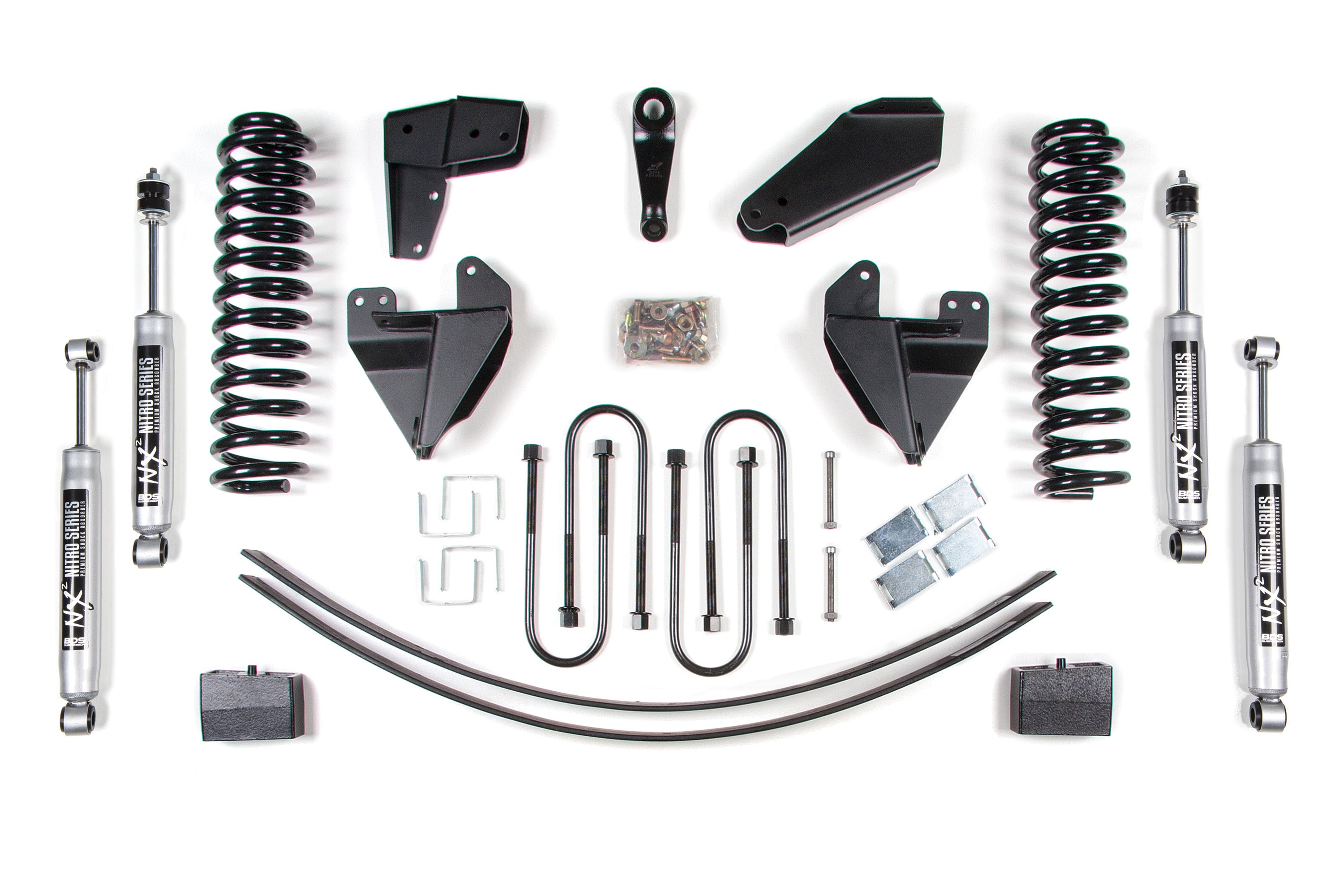

Rear Lift Option

Block Kit with Add-A-Leaf

  • Add-a-leaf helps freshen up old worn-out factory leaf springs.
  • Blocks are made from cast iron for max strength.
  • Includes new center pins.

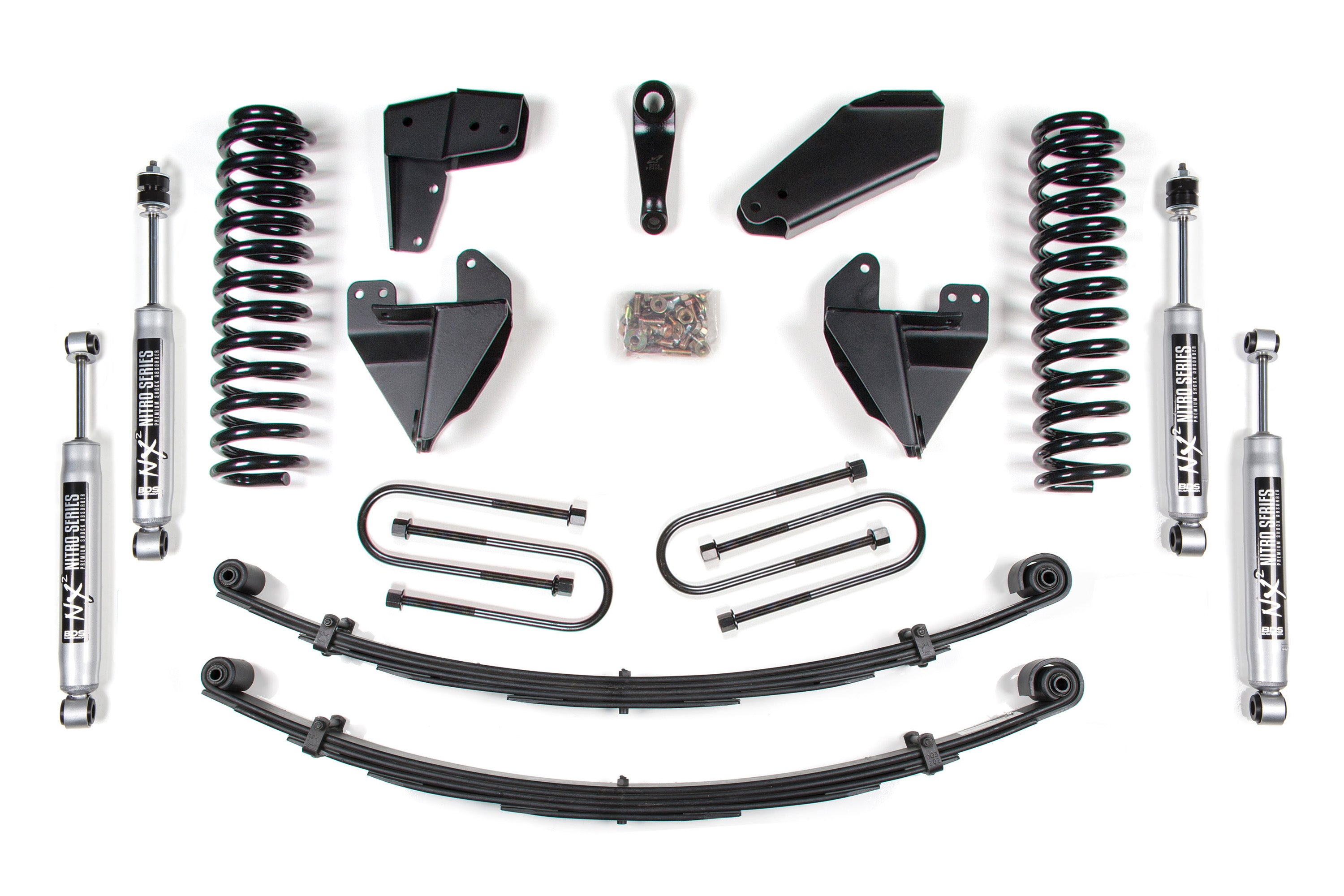

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.
IMPORTANT NOTES
  1. Front end alignment required. Alignment cams may be required.
  2. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems
    between 1980 and 1996. In extremely rare cases, modification may be required.
  3. #003208, #003408 and #003608 come with OE style bushings installed.
  4. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
  5. Extended brake lines required.
