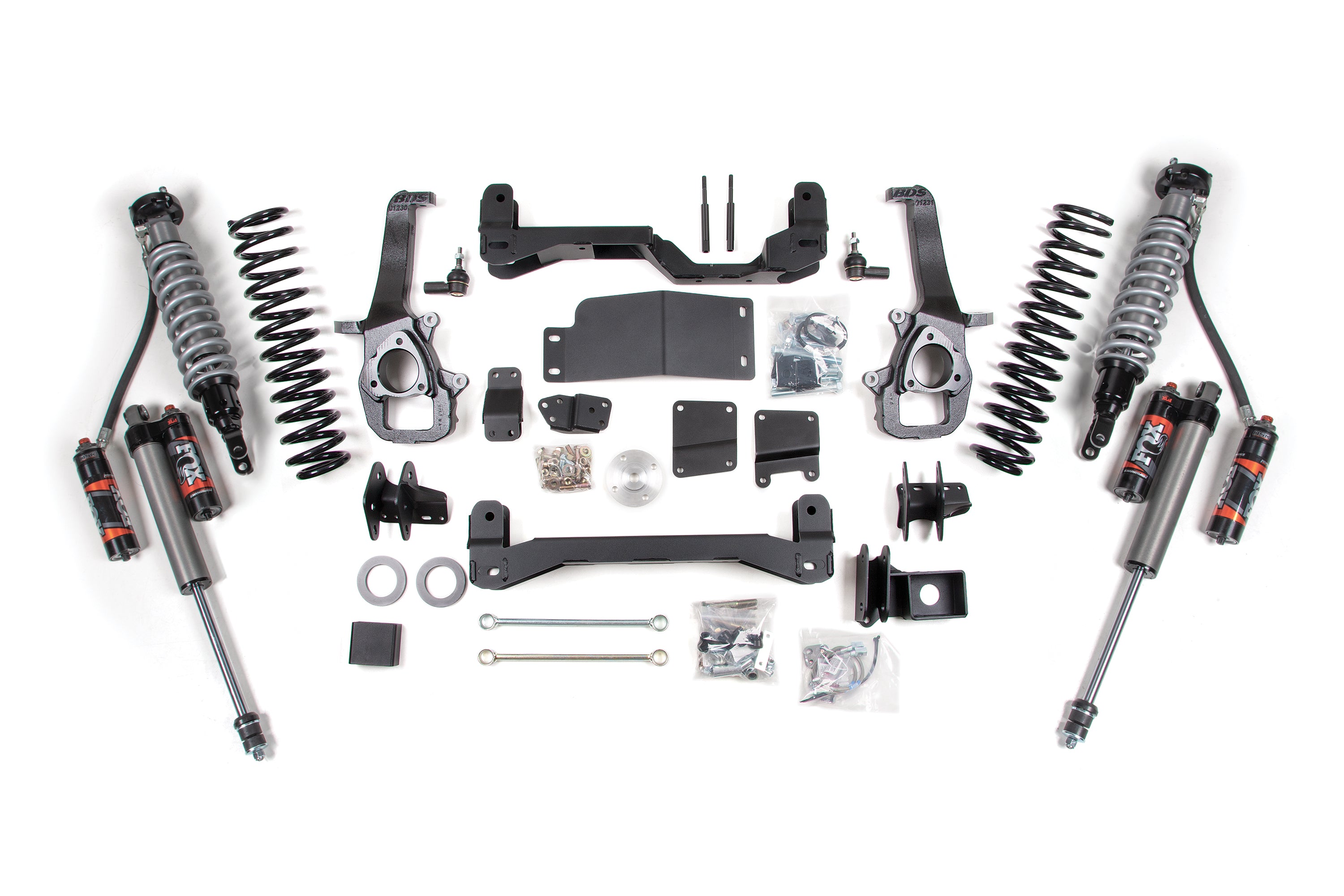

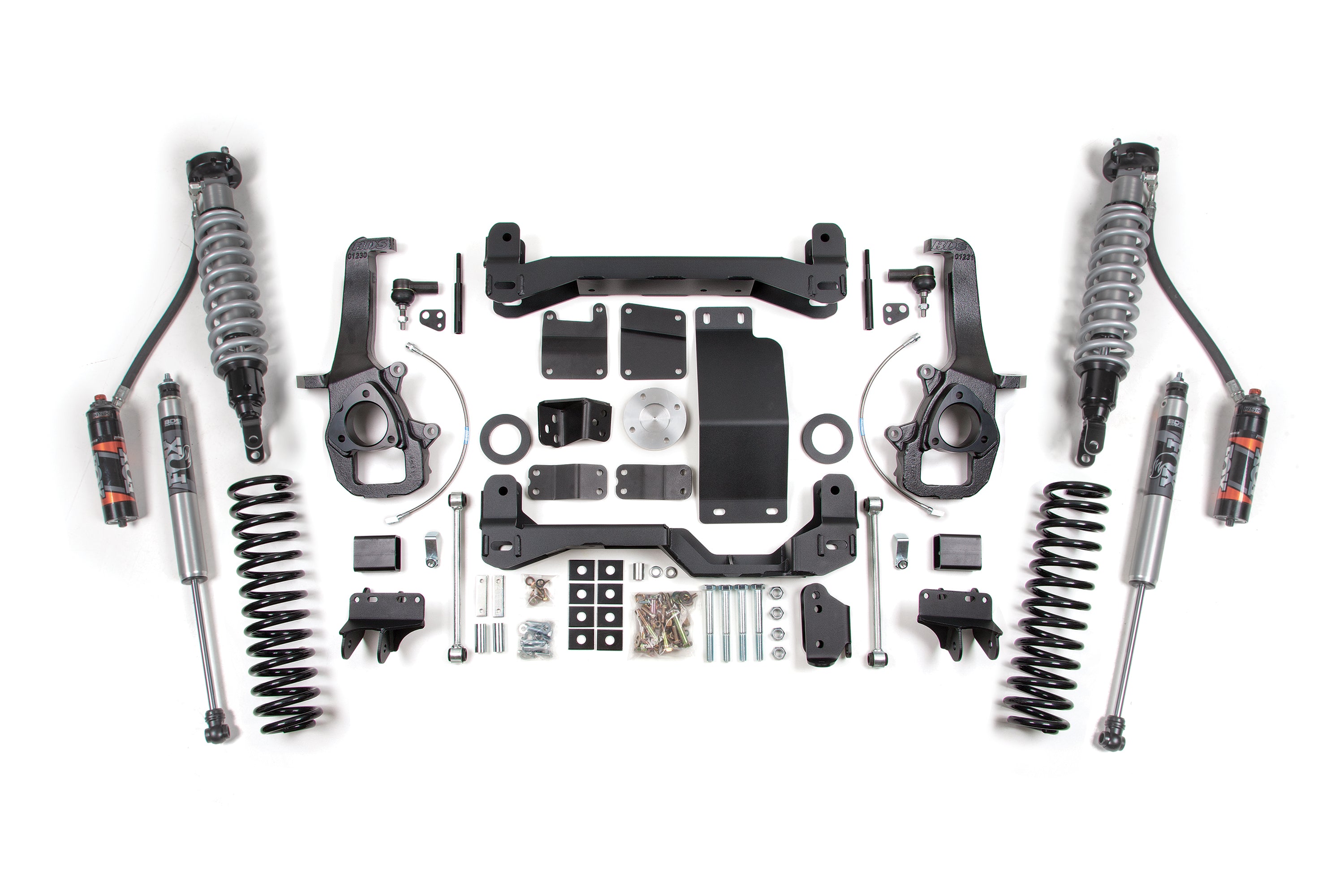

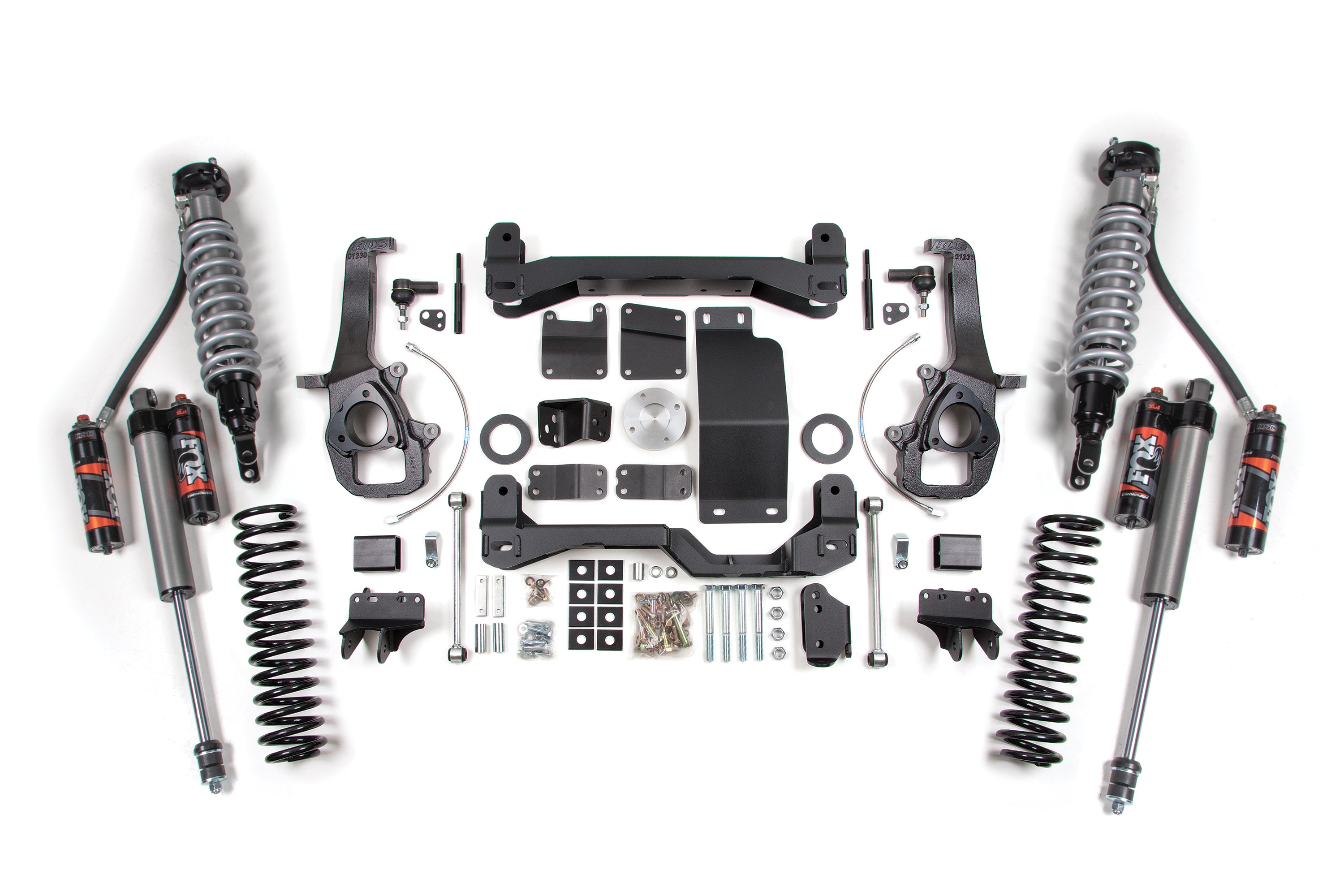

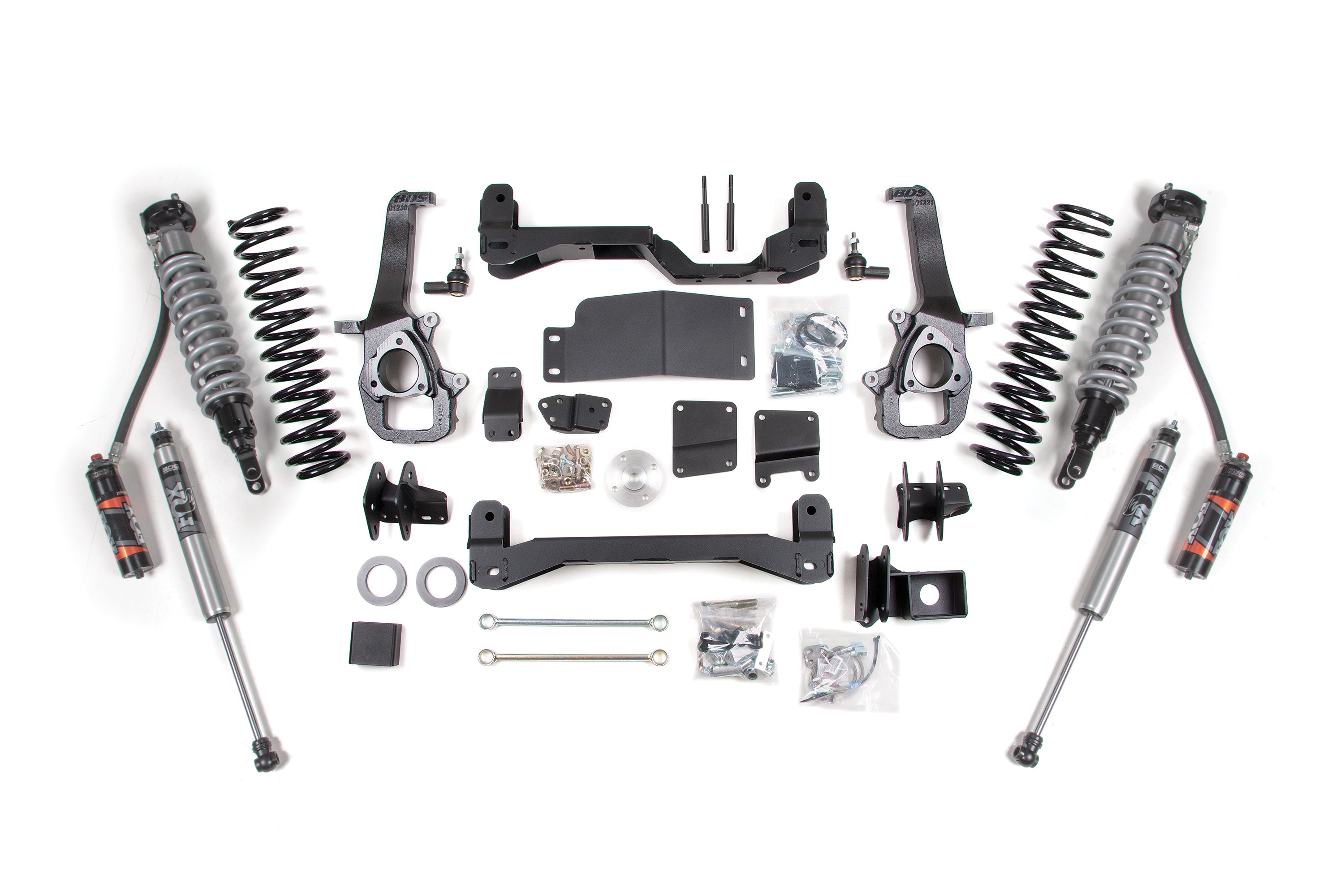

6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (09-11) 4WD

Brand: BDS Suspension
SKU: BDS1751PES
Kit Component List

×
$5,594.65
Subtotal: $5,594.65

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_1751PES_01.jpg

6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (09-11) 4WD

$5,594.65
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_622PSS_01.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_1751PES_01.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_1751PSS_01.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/bds_622PES_01.jpg

6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (09-11) 4WD

$5,594.65
Rear Lift Option: 3 Inch Coil Springs
Rear Shock Option: FOX 2.5 Performance Elite
OVERVIEW

This BDS 6" Coilover Lift Kit is designed for unmatched performance, stance, and strength. This premium system clears up to 37" tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain.

Front:

FOX 2.5 Performance Elite Coilovers w/ DSC – adjustable damping for ultimate control on- or off-road

¼" steel high-clearance crossmembers and HD skid plates for strength and protection

CNC-machined ductile iron steering knuckles maintain proper geometry and ESC compatibility

Rear:

Progressive-rate Pro-Ride coils for comfort and control

Relocation brackets correct pinion and axle geometry

Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series rear shocks


Engineered for performance, durability, and ride quality — this BDS 6" Coilover Lift Kit transforms your RAM 1500 into a confident, capable powerhouse on any road or trail.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Choice of FOX 2.0 Performance Series or 2.5 Performance Elite rear shocks.
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

BDS Pro-Ride Coil Spring

  • Progressive rate for the perfect blend of comfort and performance
  • 5 inches of rear lift to maintain a tail high stance
  • 3 inches of rear lift to provide a more level stance

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
IMPORTANT NOTES
  1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  2. Not recommended for AWD models. Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
  3. Will not fit adjustable air suspension equipped models.
  4. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
  5. TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
  6. This kit is FMVSS No.126 Compliant.
