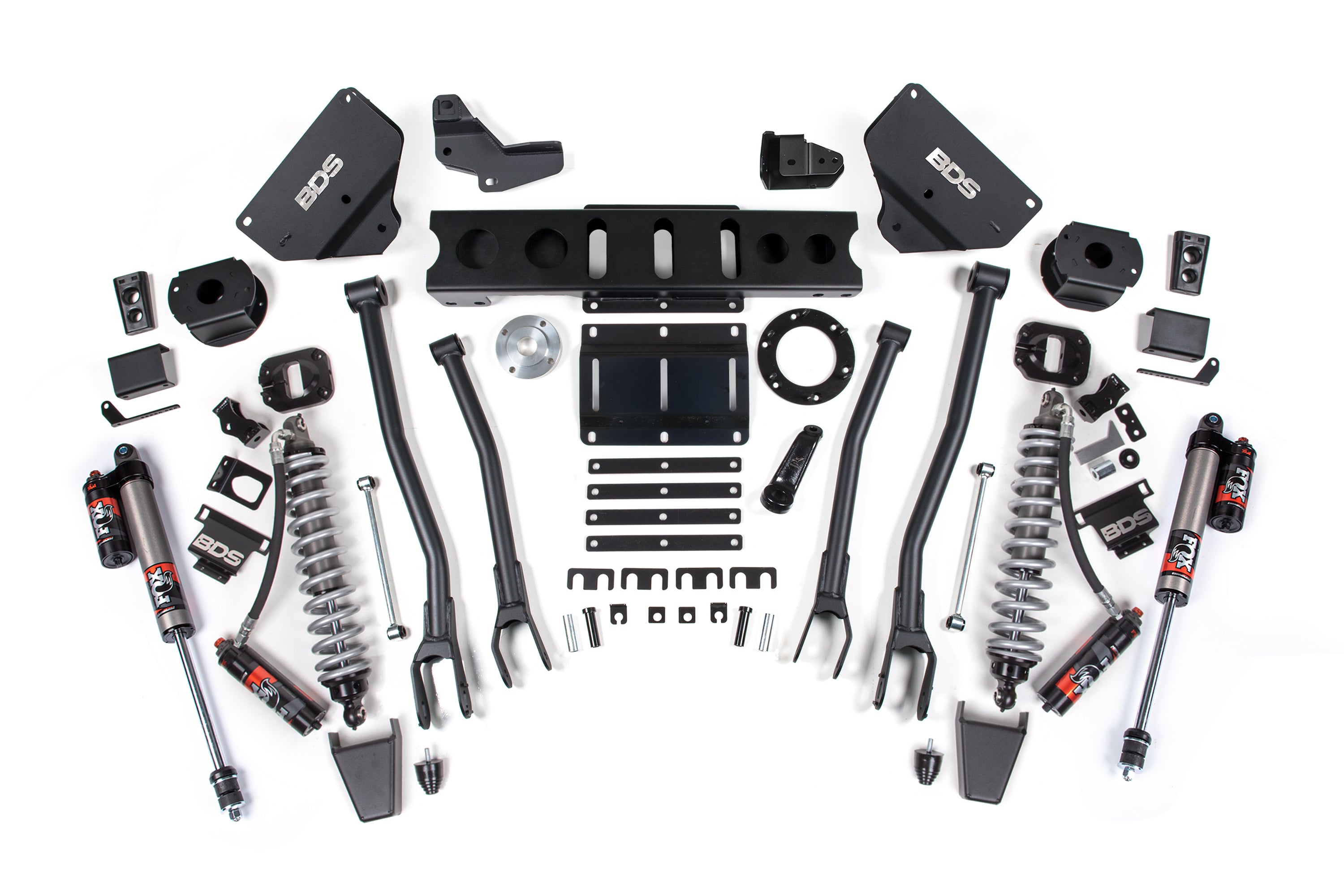

6 Inch Lift Kit w/ 4-Link | FOX 2.5 Coil-Over Conversion - Performance Elite | Ram 2500 (14-18) 4WD | Diesel

Brand: BDS Suspension
SKU: BDS1604PES
Kit Component List

×
$7,026.60
Subtotal: $7,026.60

I have read the Important Notes and Verified my Vehicle Fitment

https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/BDS_1604PES_01.jpg

6 Inch Lift Kit w/ 4-Link | FOX 2.5 Coil-Over Conversion - Performance Elite | Ram 2500 (14-18) 4WD | Diesel

$7,026.60

6 Inch Lift Kit w/ 4-Link | FOX 2.5 Coil-Over Conversion - Performance Elite | Ram 2500 (14-18) 4WD | Diesel

$7,026.60
Front Bump Stop Option: Rubber Bump Stop

Built to take abuse and ask for more, the BDS " 4-Link Lift Kit for RAM 2500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers—giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Looking to push harder? The optional FOX 2.0 hydraulic bump stops for the front are a must. These add an extra layer of control when you’re hitting hard or landing heavy, soaking up big impacts and keeping things in check.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Features & Benefits

  1. Will not fit air ride equipped models
  2. Diesel models only
  3. Not designed for PowerWagon models
  4. Must be used with an aftermarket drive shaft due to increased wheel travel.

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Rubber Bump Stop:

Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light offroading where the bump stops will be engaged at low speeds.

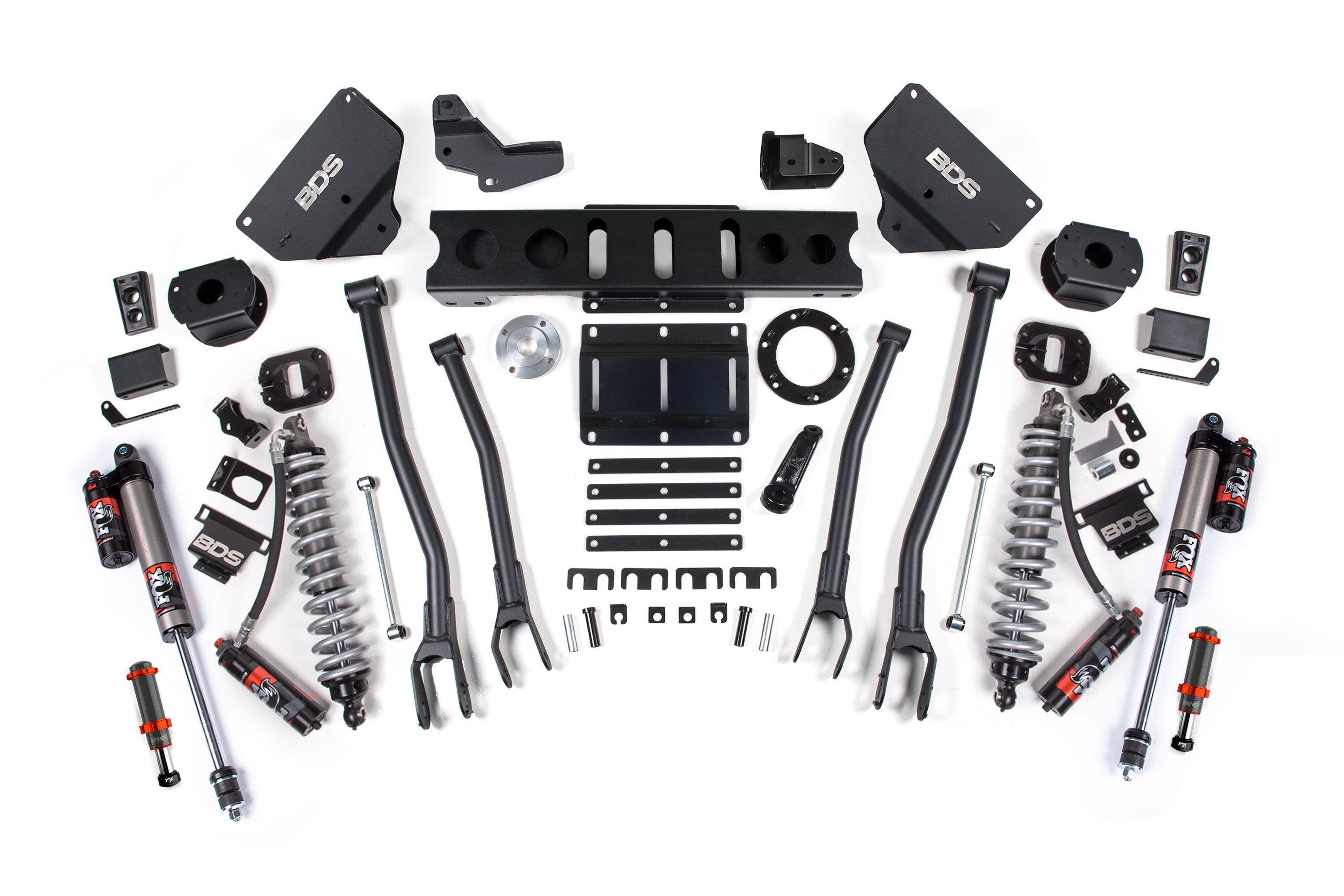

FOX 2.0 Factory Race Series Hydro Bump Stop:

Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

  1. Will not fit air ride equipped models
  2. Diesel models only
  3. Not designed for PowerWagon models
  4. Must be used with an aftermarket drive shaft due to increased wheel travel.
  5. Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle coul have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 122813.
