7 Inch Lift Kit | Toyota Tundra (16-21) 2/4WD

Brand: BDS

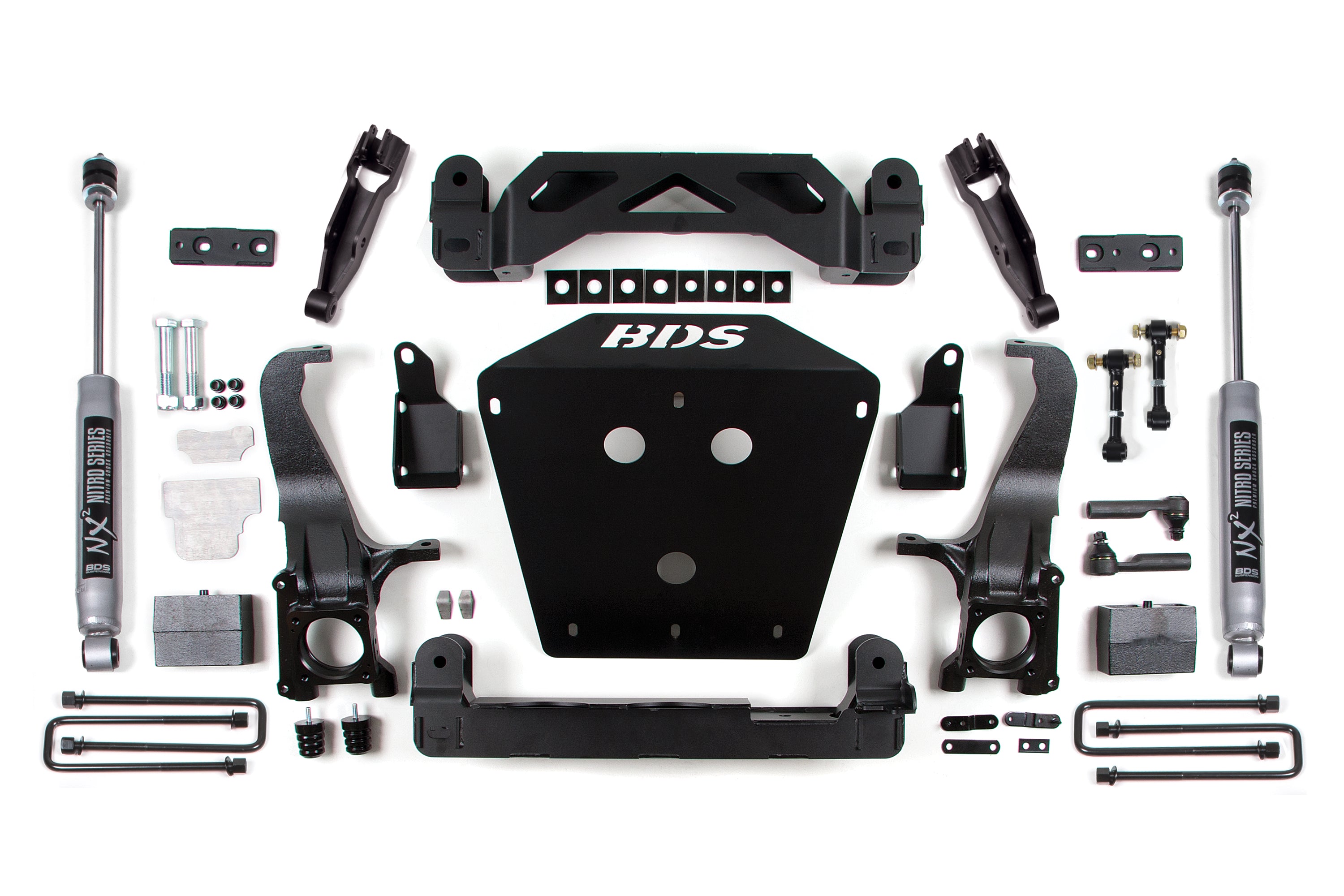

Kit Component List

Subtotal: $2,475.60

I have read the Important Notes and Verified my Vehicle Fitment

7 Inch Lift Kit | Toyota Tundra (16-21) 2/4WD

7 Inch Lift Kit | Toyota Tundra (16-21) 2/4WD


7 Inch Lift Kit | Toyota Tundra (16-21) 2/4WD

Rear Shock Option: FOX 2.0 Performance Series

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 inch lift kit suspension system. Get the tire clearance and attitude you’re looking for with the 7 inch Lift Kit Suspension System for your Toyota Tundra. This kit takes advantage of BDS’s tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

High Clearance Crossmembers

These specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.

Heavy Duty Steering Knuckles

The steering knuckles are critical to setting your lifted truck up right. While taller for the additional lift height, these arms dwarf the factory units to allow additional strength with ductile iron castings, CNC- machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.

Features & Benefits

  • High clearance design maximizes ground clearance.
  • Robust steering knuckles maintain ESC system compliance.
  • Full width belly skidplate for added protection.
  • Allows fitment of up to 37" tires with 7" systems.
  • Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. Requires frame bracket modification and welding.
  2. No strut dissassembly required.
  3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
  4. Models with two piece rear drive line would require rear drive shaft modification.
  5. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
  6. Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.
