7 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

Brand: BDS
SKU: BDS1980FPE
Kit Component List

×
$7,297.55
Subtotal: $7,297.55

I have read the Important Notes and Verified my Vehicle Fitment

7 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

7 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

$7,297.55

7 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

$7,297.55
Rear Lift Option: Block Kit
Shock Option: FOX 2.5 Performance Elite

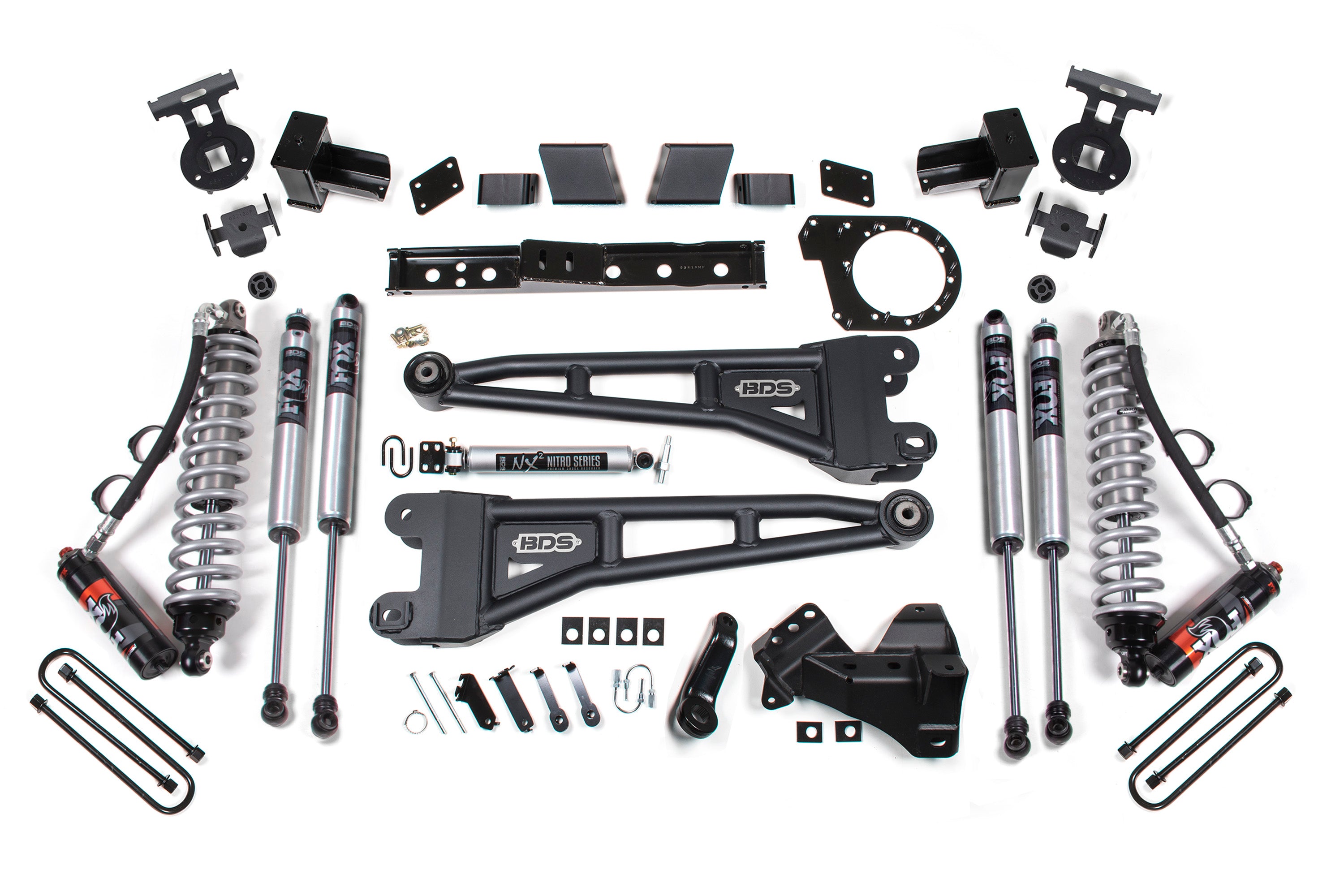

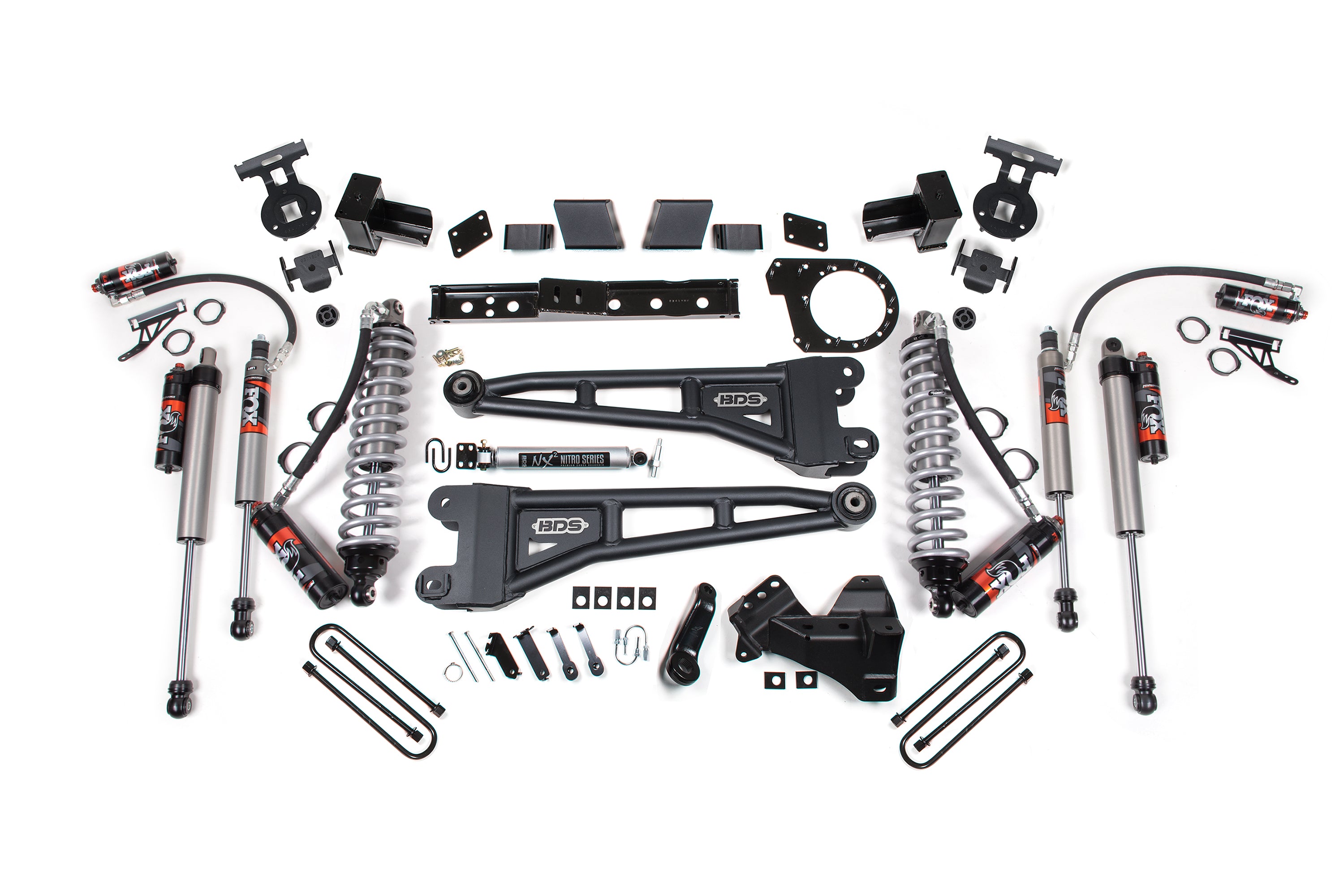

Built to Outperform, take your Ford Super Duty diesel truck to the next level with this 7-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

Up front the lift kit includes FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 9 and 5 in. Backspace
  • 38 x 13.5 with 18 x 10 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

Block Kit

  • Included in the base system.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.

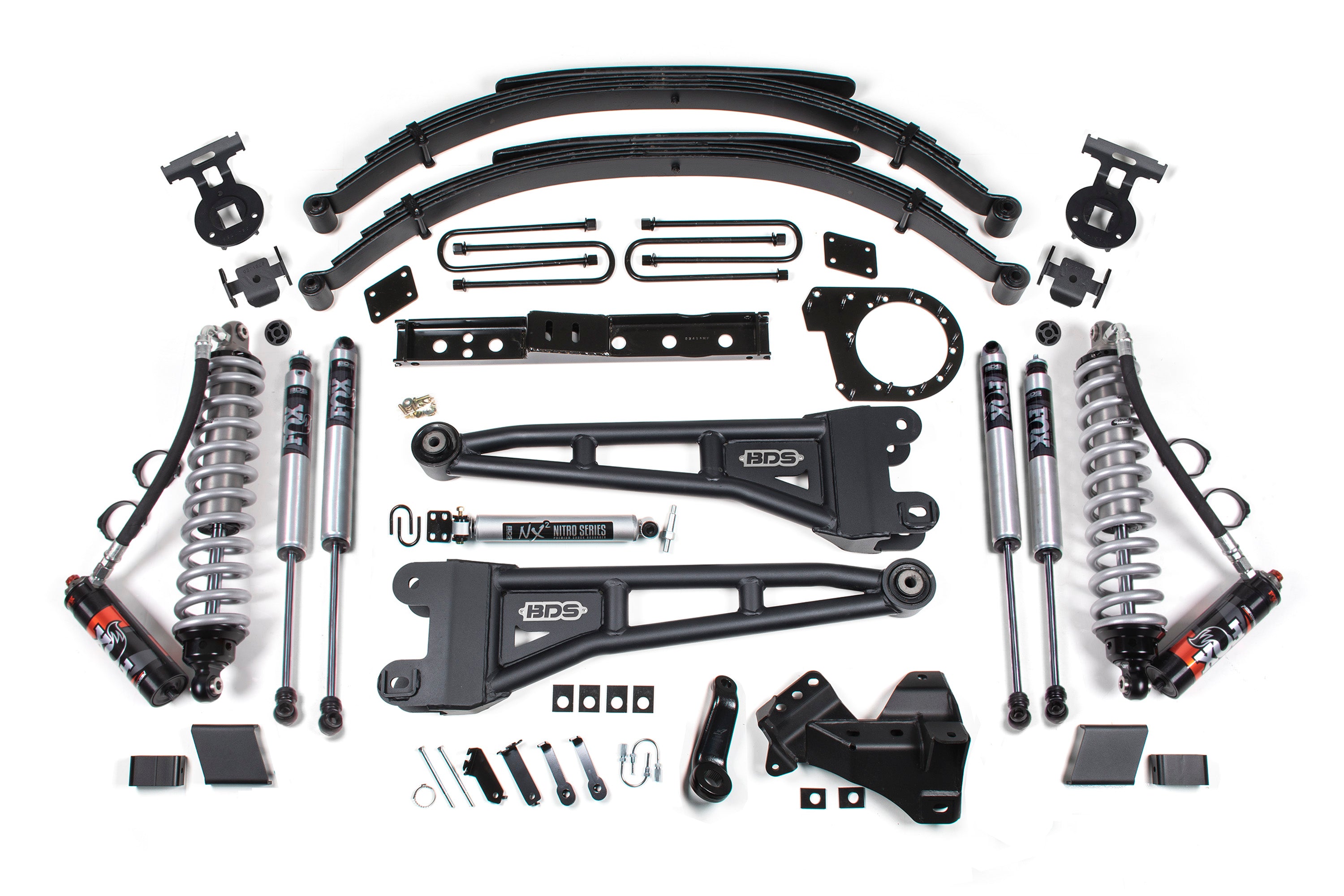

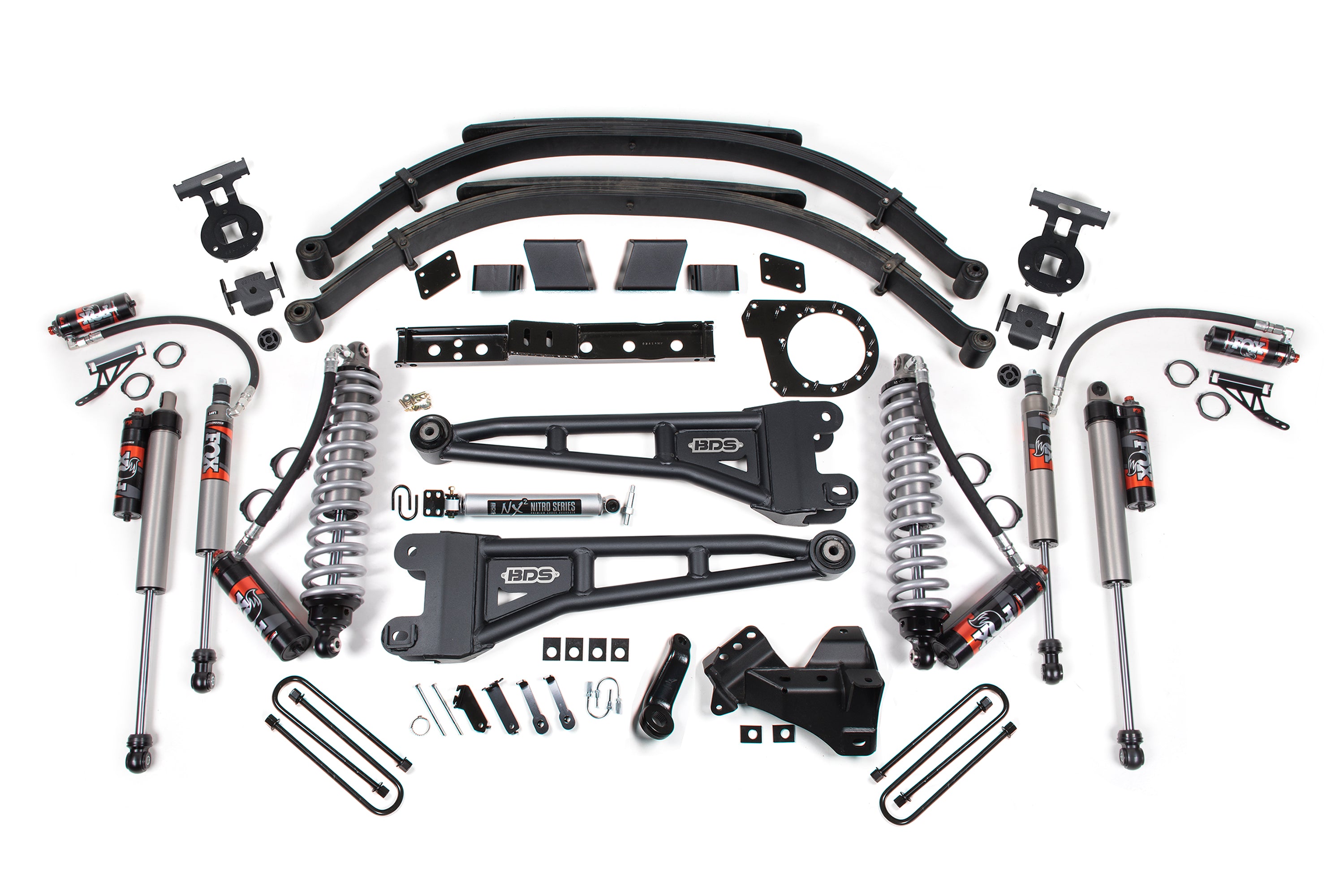

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
  1. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
  2. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
  3. If your truck is equipped with a factory rear sway bar add: BDS123808
  4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
  5. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
  6. Larger tires on the stock wheels are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
  7. The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  8. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
  9. Installation requires a torque wrench capable of 405 ft-lbs.
  10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
