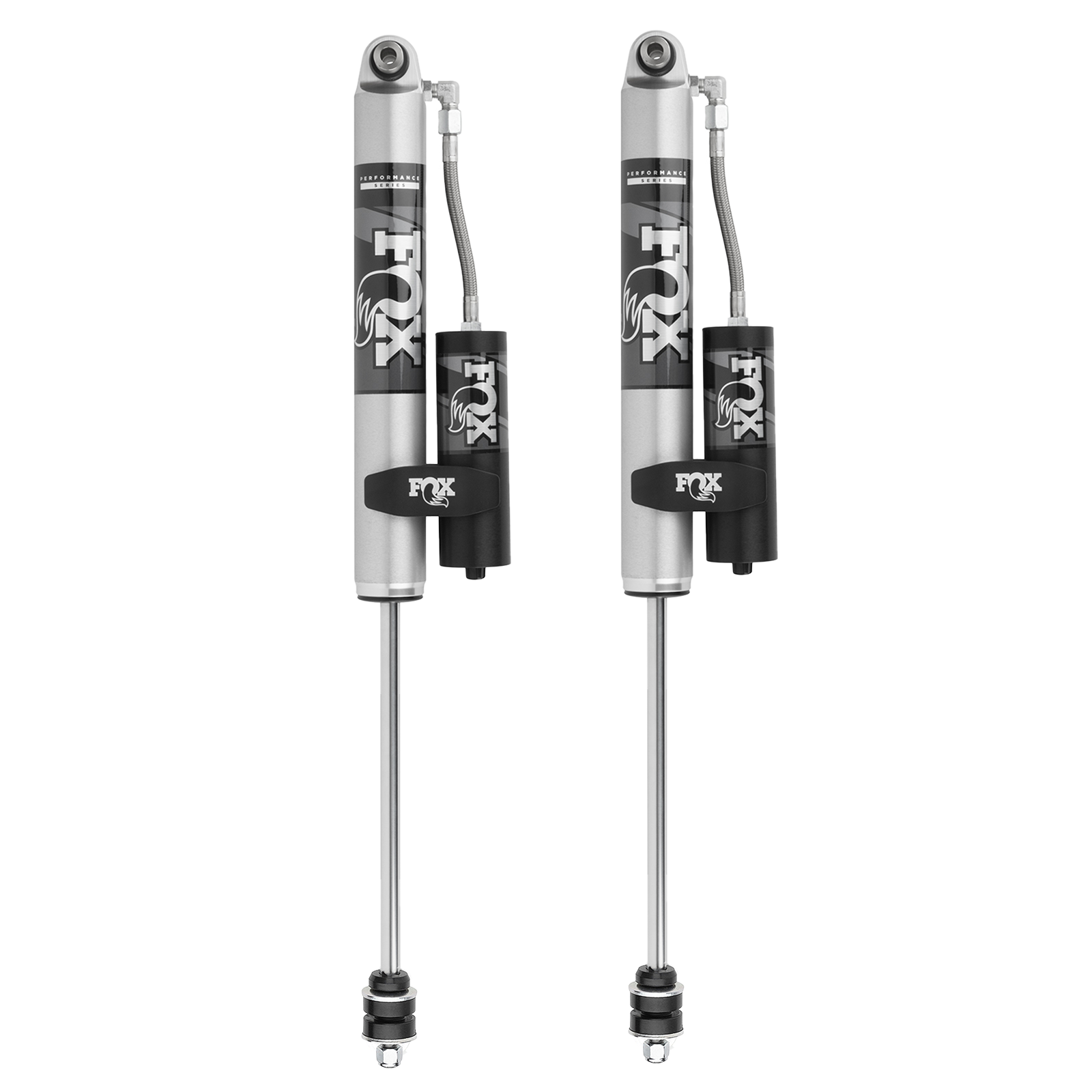

FOX 2.0 Rear Reservoir Shocks | 4-6 Inch Lift | Performance Series | Ram 2500 (14-27) 4WD

Brand: FOX
SKU: FOX88524215
Kit Component List

×
$819.95
Subtotal: $819.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/885_24_212_1.png

FOX 2.0 Rear Reservoir Shocks | 4-6 Inch Lift | Performance Series | Ram 2500 (14-27) 4WD

$819.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/885_24_212_1.png

FOX 2.0 Rear Reservoir Shocks | 4-6 Inch Lift | Performance Series | Ram 2500 (14-27) 4WD

$819.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2014-2027 Ram 2500 to FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit a 4 to 6-inch lift suspension kit. The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package.

The external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • External remote reservoir design w/ billet mounting clamp
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 17.05
  • Cylinder Material : Aluminum
  • Extended Length : 28.35
  • Gas Charged : Yes
  • Lift Height : 4-6"
  • Lower Mount Type : Eyelet
  • Reservoir Type : Remote
  • Shaft Diameter : 5/8"
  • Travel Length : 11.3
  • Type : Smooth Body IFP
  • Upper Mount Type : Stem
FITMENT
2018|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Limited Tungsten|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Hemi Sport|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Outdoorsman|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|ST|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Hemi Sport|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Sport|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|R/T|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Outdoorsman|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|ST|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|ST|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Sport|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Black Express|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|R/T|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2027|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Laramie HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|ST|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Special Service|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Outdoorsman|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Special Service|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|ST|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|R/T|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|R/T|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Outdoorsman|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|Limited Tungsten HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2021|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|HD Limited Rambox|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Special Service|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2018|Ram|2500|SLT|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Outdoorsman|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2016|Ram|2500|R/T|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Laramie Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2024|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Lone Star|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Big Horn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|HD Limited|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2025|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|R/T|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2015|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|HD Big Horn|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2022|Ram|2500|Limited Longhorn|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2023|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2026|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Sport|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2014|Ram|2500|Tradesman|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2017|Ram|2500|Laramie Limited|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2019|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|Laramie|4WD|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||;2020|Ram|2500|SLT HD|*|*|*|48166|Shock Absorber Kit|EA|1||||N/A|1|||||||||||
