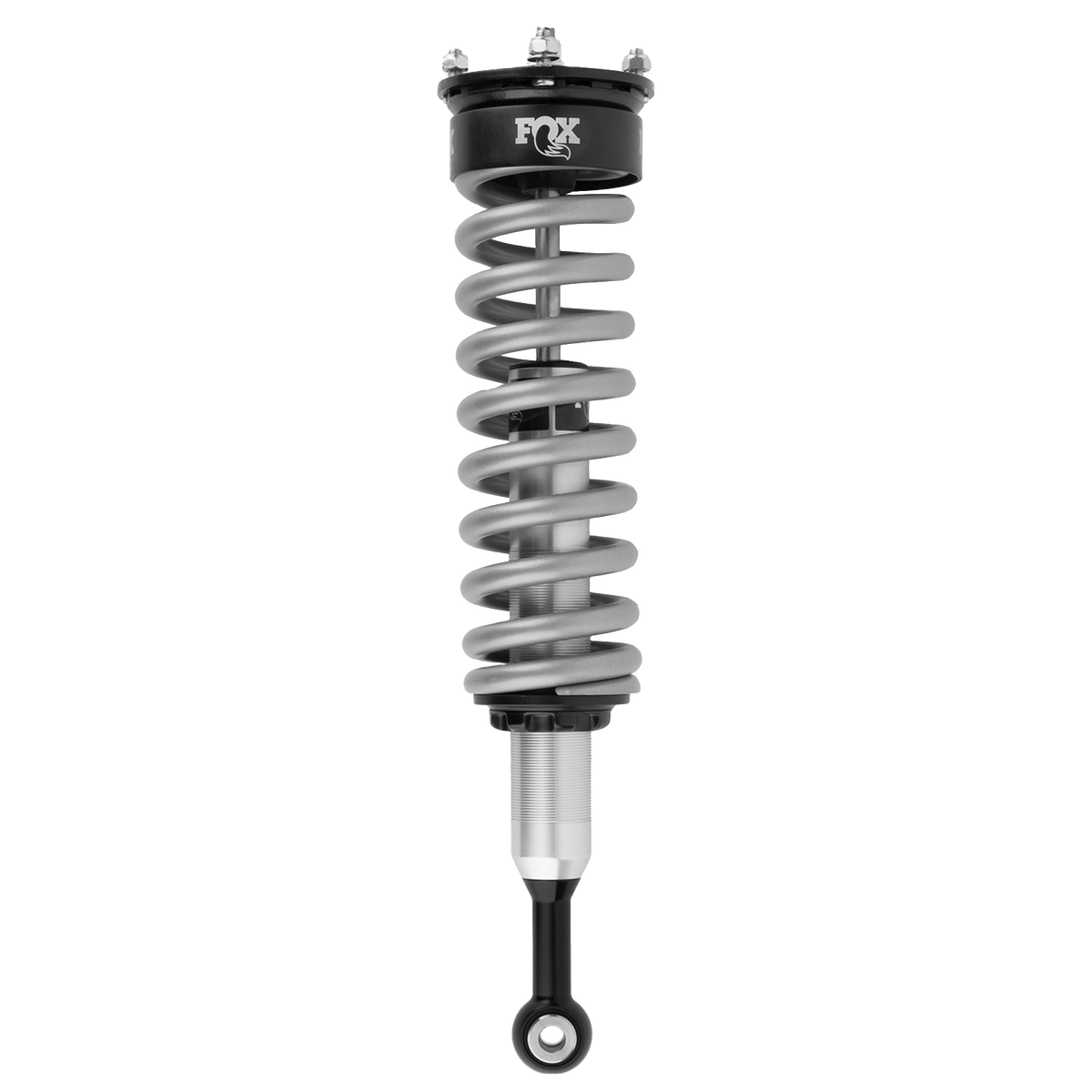

FOX 2.5 Coil-Over IFP Shock w/HTO | 0-2.25 Inch Lift | Performance Series | Toyota Land Cruiser 250/ Lexus GX550 (24-27) & Toyota 4Runner (25-27)

Brand: FOX
SKU: FOX98702016
Kit Component List

×
$789.95
Subtotal: $789.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/fox_performance_coil_over_ifp_pr.png

FOX 2.5 Coil-Over IFP Shock w/HTO | 0-2.25 Inch Lift | Performance Series | Toyota Land Cruiser 250/ Lexus GX550 (24-27) & Toyota 4Runner (25-27)

$789.95

FOX 2.5 Coil-Over IFP Shock w/HTO | 0-2.25 Inch Lift | Performance Series | Toyota Land Cruiser 250/ Lexus GX550 (24-27) & Toyota 4Runner (25-27)

$789.95

FOX Performance Series 2.5 shocks for the LC250, GX550, and 4Runner are a bolt-on solution with vehicle-specific valving and larger pistons to improve on and off-road performance. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping 5/8” hard chrome shaft
  • Internal floating piston (IFP)
  • Hydraulic Top Out (HTO) piston
  • Adjustable Damping : No
  • Compressed Length : 18
  • Extended Length : 24.45
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 0-2"
  • Lower Mount Type : Eyelet
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 6.45
  • Type : Smooth Body IFP
  • Upper Mount Type : OEM
