Upgrade the on-road comfort and off-road control of your 2020-2024 Chevy Silverado or GMC Sierra 2500/3500 4WD to FOX Performance Series 2.5 IFP (internal floating piston) Rear shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
Shop by vehicle
Shop by vehicle
×
What fits my ride?
Shop by vehicle
Shop by vehicle
×
What fits my ride?

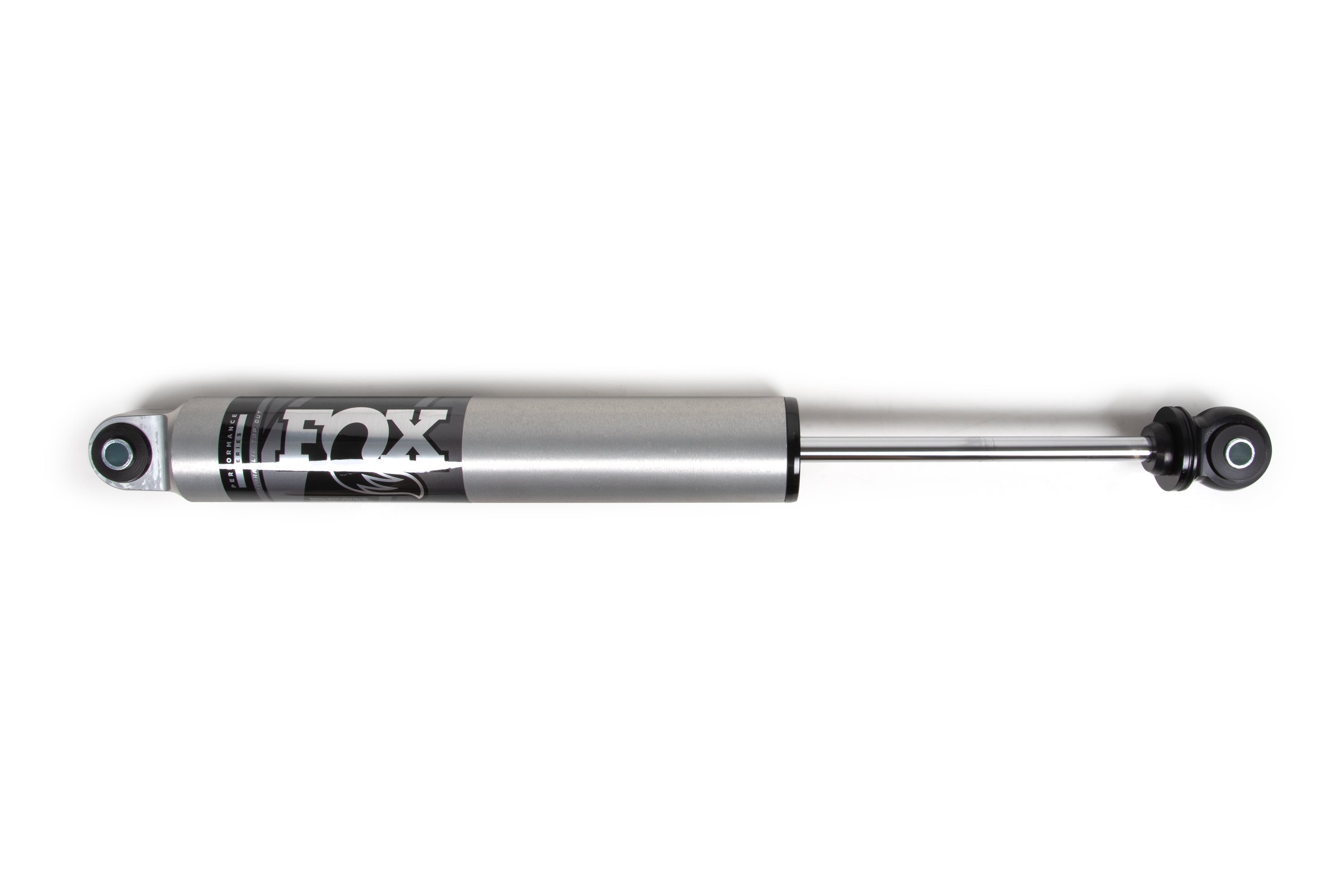

FOX 2.5 IFP Rear Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24)
Brand:
FOX
SKU:
FOX98724011
×
- $346.95
- Unit price
- per
Features & Benefits
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Adjustable Damping : No
- Compressed Length : 17.54
- Extended Length : 26.72
- Finish : Clear-anodized
- Gas Charged : Yes
- Lift Height : 1.5-2.5"
- Lower Mount Code : EB1
- Lower Mount Type : Eyelet
- Position : Rear
- Shaft Diameter : 5/8"
- Travel Length : 9.18
- Type : Smooth Body IFP
- Upper Mount Code : EB1
- Upper Mount Type : Eyelet
