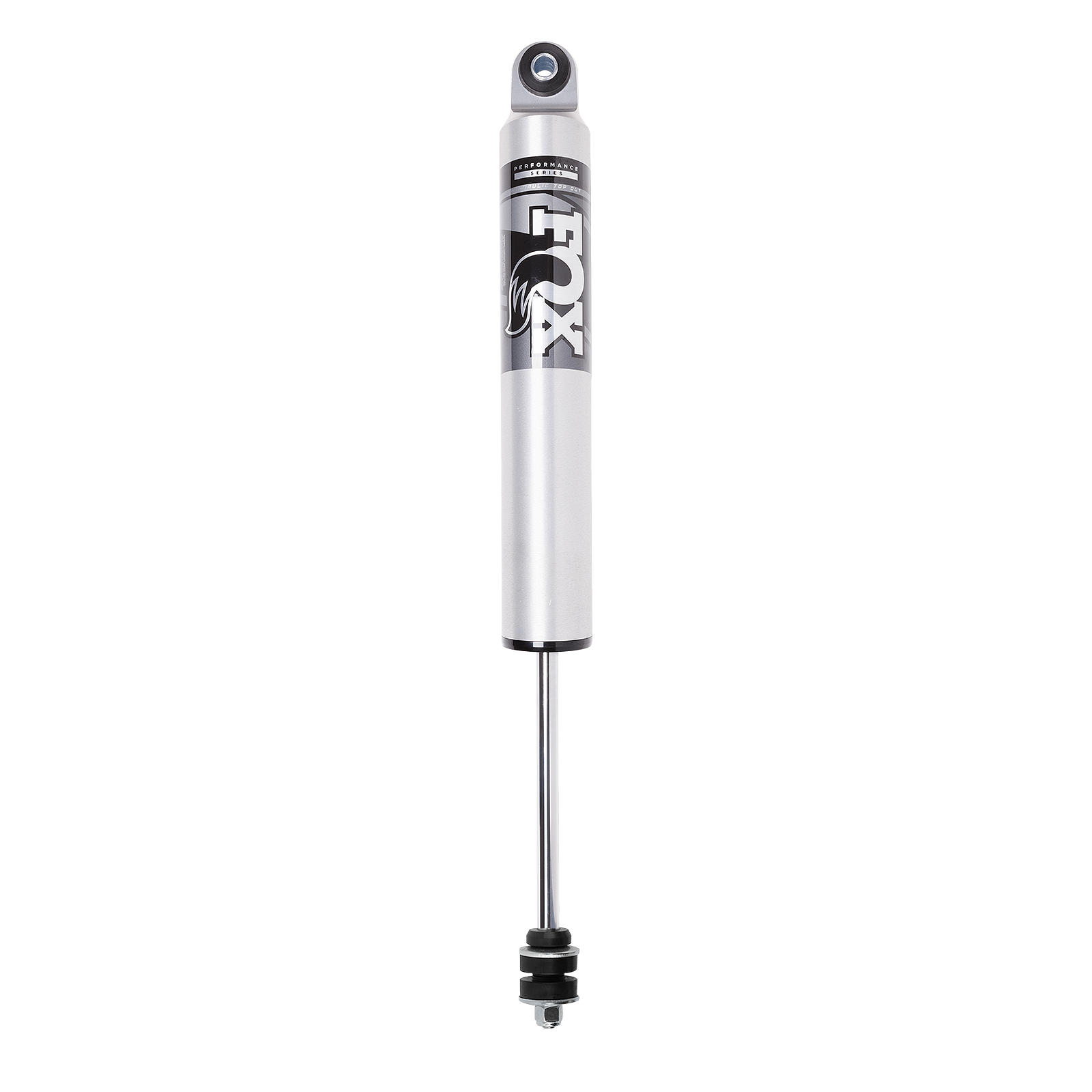

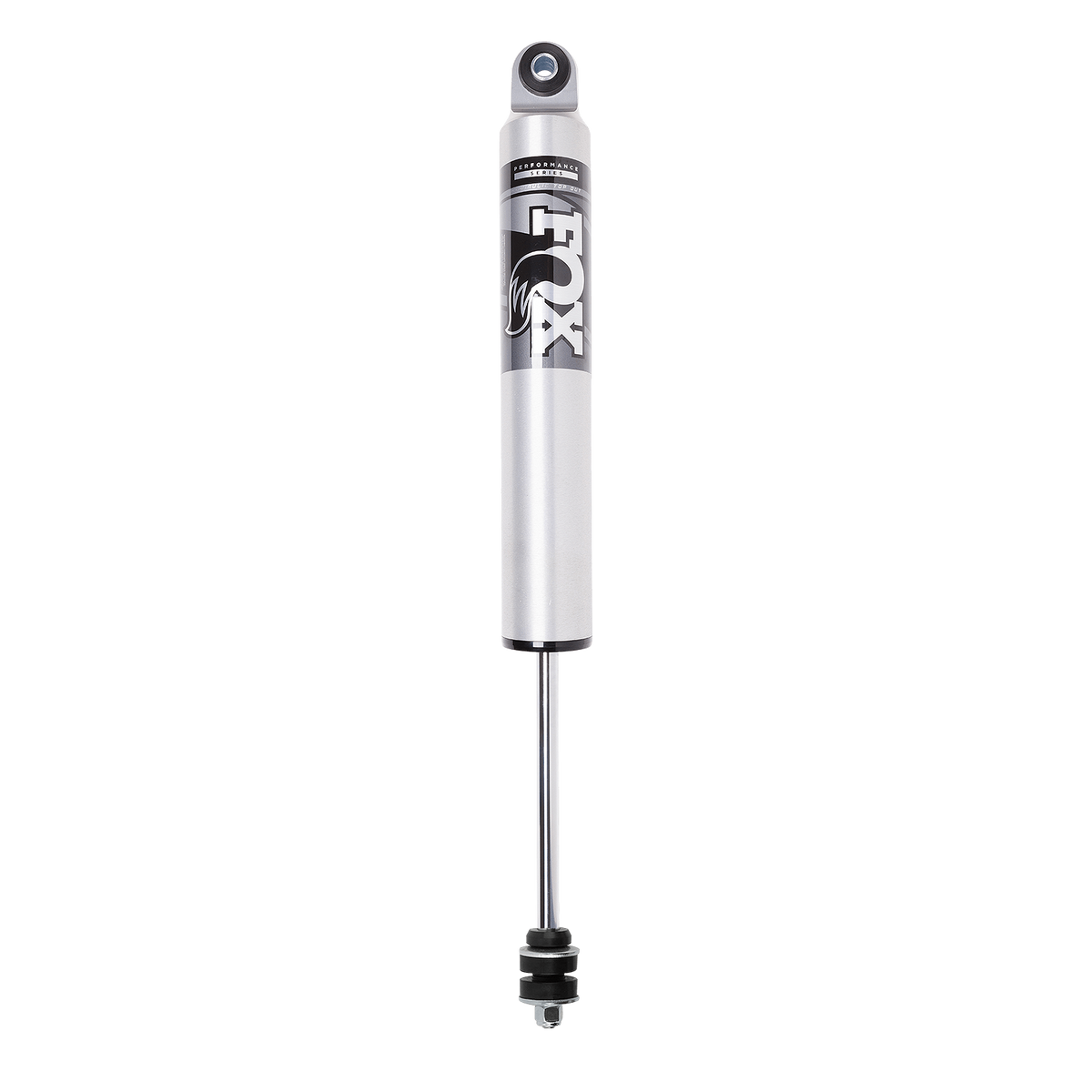

FOX 2.5 IFP Rear Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27)

Brand: FOX
SKU: FOX98724047
Kit Component List

×
$359.95
Subtotal: $359.95

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_005.png

FOX 2.5 IFP Rear Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27)

$359.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/987_24_005.png

FOX 2.5 IFP Rear Shock w/HTO | 2-3 Inch Lift | Performance Series | Ram 2500 (14-27)

$359.95
OVERVIEW

Upgrade the on-road comfort and off-road control of your 2014-2027 Ram 2500 to FOX Performance Series 2.5 IFP (internal floating piston) Rear shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping 5/8” hard chrome shaft
  • Internal floating piston (IFP)
  • Hydraulic Top Out (HTO) piston
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
  • Adjustable Damping : No
  • Compressed Length : 17.53
  • Extended Length : 27.39
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 2-3"
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 9.86
  • Type : Smooth Body IFP
  • Upper Mount Type : Stem
FITMENT
2016|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Sport|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Special Service|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Special Service|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Hemi Sport|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|ST|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Hemi Sport|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|HD Limited Rambox|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Sport|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Outdoorsman|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|R/T|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|ST|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|R/T|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|R/T|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Outdoorsman|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Black Express|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2027|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|R/T|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2022|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|ST|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Laramie HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Outdoorsman|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|ST|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|SLT|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|R/T|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Limited Tungsten HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2015|Ram|2500|Outdoorsman|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2014|Ram|2500|Tradesman|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Outdoorsman|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Special Service|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|HD Limited|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|ST|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Limited Tungsten|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2021|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Laramie Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Laramie|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|Sport|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2017|Ram|2500|R/T|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2024|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2026|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2020|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2025|Ram|2500|Lone Star|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2019|Ram|2500|Big Horn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2016|Ram|2500|Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|HD Big Horn|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|Limited Longhorn|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2018|Ram|2500|Laramie Limited|4WD|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||;2023|Ram|2500|SLT HD|*|*|*|14555|Steering Stabilizer|EA|1||||Stabilizer|2|||||||||||
